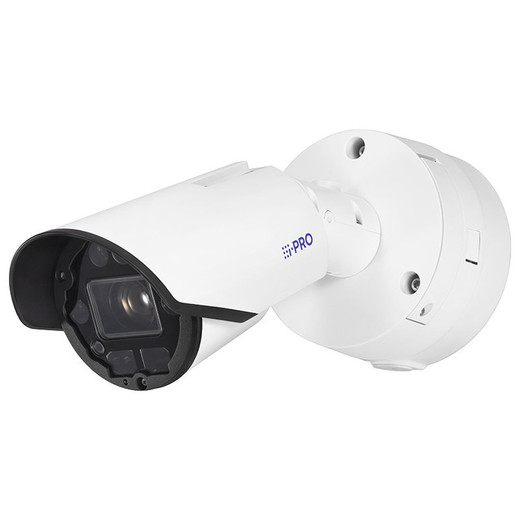

i-PRO WV-S15701-Z3L 4K AI Outdoor IR Bullet Camera

i-PRO WV-S15701-Z3L 4K AI Outdoor IR Bullet Camera

The i-PRO WV-S15701-Z3L is a 4K outdoor infrared bullet camera engineered for high-security perimeter, critical infrastructure, and transportation environments where optical reach, edge-based AI analytics, and environmental durability are non-negotiable. Built around a 1/2.8-inch CMOS sensor and a motorized 30x zoom lens (4.5–135mm, F1.8), the WV-S15701-Z3L delivers 4K UHD resolution (3840 x 2160) during daylight while maintaining usable color imaging down to 0.13 lux at standard shutter speeds—critical for license plate and facial recognition accuracy in low-light transition periods (dawn, dusk, overcast). Rated IP66 and IK10, it resists direct rain, salt spray, and deliberate impact, making it suitable for coastal ports, industrial facilities, and high-vandalism urban deployments. Native edge analytics (LPR, facial recognition) and FIPS 140-2 Level 3 cryptographic certification position it for government contracts and telecom backbone security.

Key Features

• 4K UHD Resolution (3840 x 2160): Captures fine detail sufficient for forensic archival and retrospective zoom-in analysis. On 24/7 recording systems, this means you can extract usable frames of license plates or individuals from wide-area footage without re-deploying the camera for a second pass.
• 30x Motorized Optical Zoom Lens (4.5–135mm, F1.8): Continuous focal length adjustment delivers optical magnification without digital degradation—critical when pursuing vehicle or person identification across parking lots or perimeters. The F1.8 maximum aperture is unusually large for a zoom lens, enabling color capture at 0.13 lux without forcing near-total dependence on infrared illumination, which degrades LPR and facial-recognition model accuracy.
• Built-in 3.0m IR LED Illumination (switchable intensity): 850nm LED provides effective range to 3.0 meters with switchable high, middle, and low output. This eliminates the need for external illuminators in typical outdoor perimeter applications and prevents IR washout when subjects move very close to the lens—a common problem with fixed-output IR cameras in compact coverage zones.
• Day/Night Mechanical IR Cut Filter: Automatic mechanical switching between color (day) and monochrome (night) modes is faster and more stable than electronic variants, especially during rapid light transitions (dawn, dusk). Reduces false color shifts and preserves LPR and facial-recognition confidence at twilight.
• Image Stabilization: Compensates for vibration and micro-motion during zoom operations or on wind-prone mounting structures. Reduces blur artifacts in 30x zoomed video, keeping fine detail sharp for forensic review and evidence admissibility.
• AI Analytics at the Edge: License plate recognition and facial recognition run directly on the device, not on a backend server. This cuts network bandwidth by streaming only flagged frames, reduces VMS round-trip latency, and enables sub-second alerting for time-sensitive responses (perimeter breach, wanted-vehicle detection).
• IP66 Enclosure & IK10 Impact Resistance: IP66 withstands high-pressure water jets and heavy dust—essential for coastal salt spray, industrial wash-down, and car-wash proximity. IK10 (40 joules impact) survives vandalism attempts; the camera won't fail from thrown objects or sledge-hammer strikes, reducing repair downtime in high-security or hostile environments.
• PoE++ Power (IEEE 802.3bt Class 4): Single Ethernet cable supplies both data and power (up to 95W), eliminating the need for a separate 12VDC or 24VAC supply at the camera location. Class 4 PoE++ delivers sufficient wattage for the motorized lens, IR illumination, and edge-processing ASICs, simplifying field installation and reducing infrastructure failure points.
• H.265 & H.264 Compression (dual-codec): H.265 cuts bitstream size 40–50% versus H.264 at equivalent visual quality, directly lowering 24/7 storage costs and network bandwidth on multi-camera systems. Simultaneous H.264 encoding ensures backward compatibility with legacy VMS platforms that do not yet support H.265.
• microSD Local Backup Recording: On-device microSD slot (up to 512GB) enables autonomous recording during network outages. Critical for capturing evidence when WAN connectivity fails—common in remote branches or mobile-network-dependent field sites—without losing the event timeline.
• HTTPS Encryption & Credential Management: FIPS 140-2 Level 3 certified cryptography and certificate-based authentication prevent unauthorized access and eavesdropping. Mandatory for government, telecom, and financial-services deployments; optional but recommended for enterprise sites handling sensitive security data.
• ONVIF Profile S/T/G Compliance: Integrates into third-party VMS platforms (Milestone XProtect, Genetec, Salto, etc.) without vendor lock-in. Enables centralized multi-site management across disparate camera brands.

Integration & Compatibility

The WV-S15701-Z3L integrates seamlessly into any ONVIF-compliant network video management system (Milestone XProtect, Genetec, Salto, Hanwha WiseNet) via standard REST APIs and RTSP streaming. Edge AI functions (LPR, facial recognition) output event metadata (vehicle plate, face image, timestamp) to the VMS via JSON-formatted webhooks, enabling custom alerting rules and forensic search workflows without backend processing overhead. Requires an IP network switch capable of delivering PoE++ (802.3bt Class 4, minimum 95W per port) and sufficient backhaul bandwidth for H.265 streams (typical 5–8 Mbps per camera at 24 fps, 4K). For sites with constrained WAN links, H.264 fallback or MJPEG sub-stream configuration preserves remote monitoring capability.

Frequently Asked Questions

Q: Does the WV-S15701-Z3L support two-way audio or just video?
A: The WV-S15701-Z3L is a video-only camera. It does not include a microphone or speaker for audio capture or two-way communication. If audio is required, configure a separate network microphone or speaker appliance on the same network segment.

Q: What is the maximum range for effective license plate recognition?
A: License plate recognition accuracy depends on plate size, lighting, and mounting angle. The 30x optical zoom and 4K resolution support LPR at distances up to 50–80 meters under daylight conditions. At night or in poor lighting, the IR illumination (3.0m range) and color-capable F1.8 lens extend usable LPR distance, but performance drops with subject distance and angle deviation. Field testing on your specific deployment is recommended.

Q: Can I use standard 802.3at PoE (30W) to power the WV-S15701-Z3L, or do I need PoE++?
A: No. The WV-S15701-Z3L requires PoE++ (IEEE 802.3bt Class 4) capable of delivering up to 95W. Standard PoE (802.3af, 15W) or PoE+ (802.3at, 30W) will not power the motorized zoom lens, IR illumination, and edge-processing ASICs. Verify your network switch supports 802.3bt Class 4 output before deployment.

Q: Is the WV-S15701-Z3L compliant with U.S. government Section 889 procurement rules (NDAA)?
A: The WV-S15701-Z3L carries FIPS 140-2 Level 3 certification and is manufactured by i-PRO (a Panasonic subsidiary), a non-blacklisted vendor under NDAA Section 889. However, confirm NDAA compliance status with your procurement officer and review the current excluded-parties list, as compliance requirements vary by agency and contract vehicle.

Q: What is the warranty on the WV-S15701-Z3L?
A: Warranty details vary by region and reseller. Contact your specialty retailer or i-PRO directly for coverage terms, parts replacement, and support options.

Q: Does the WV-S15701-Z3L work with network video recorders (NVRs) or only VMS software?
A: The WV-S15701-Z3L is ONVIF-compliant and works with both ONVIF-certified NVRs and VMS software platforms. Ensure the NVR supports H.265 decoding if you plan to stream in that codec; legacy NVRs may require H.264 fallback configuration for recording and playback.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S15701-Z3L is a purpose-built perimeter and critical-infrastructure camera—not a general-use outdoor bullet. The 30x motorized zoom lens combined with 4K resolution and F1.8 aperture delivers a rare combination: you get optical reach (135mm focal length) without sacrificing low-light color performance. For license plate and facial-recognition deployments, that's a game-changer because it means you can capture identifiable imagery in twilight or overcast conditions without forcing the camera into monochrome IR mode, which degrades model confidence.

Technical Highlights:

• PoE++ Class 4 (95W max): The motorized zoom lens, IR illumination, and edge-processing ASICs pull significant power. Standard PoE+ won't cut it—you must upgrade your network switch to 802.3bt Class 4 capable ports. This is a hard requirement, not optional; undersizing power is a common on-site failure mode.
• H.265 codec efficiency (40–50% bitstream reduction): Paired with the 4K sensor, H.265 cuts storage and bandwidth costs by roughly half compared to H.264 at equivalent quality. On 24/7 multi-camera systems, this compounds rapidly—a 16-camera site might save 2–3 TB per week depending on scene complexity and retention policy.
• 3.0m IR range and F1.8 color capability: The IR LED reaches 3.0m, which covers most perimeter distances. But the F1.8 lens and large sensor mean you can maintain color imaging and LPR/facial-recognition accuracy down to 0.13 lux without IR, reducing washout artifacts that occur when IR subjects are too close to the lens.

Deployment Considerations:

• The WV-S15701-Z3L is a heavy hitter: IP66/IK10 rated but still a substantial form factor. Mounting requires robust brackets and careful structural loading analysis, especially in high-wind areas (coastal deployments) or seismic zones.
• Edge AI (LPR, facial recognition) runs on-device, which is efficient, but output bandwidth depends on event frequency. In high-traffic scenarios (parking lots, toll plazas), metadata streaming can consume non-trivial bandwidth if the VMS poll rate is aggressive. Tune webhook frequency and filter rules in the VMS to avoid log spam.
• Thermal management: the motorized lens and processing ASICs generate heat. In extreme climates (>50°C ambient), verify heater/cooler enclosure compatibility and maintenance intervals; passive cooling alone may not suffice.

The WV-S15701-Z3L shines in critical-infrastructure and transportation-security roles where optical magnification, AI analytics, and environmental durability are simultaneous requirements. A 30x zoom on a 4K sensor is rare; pair that with edge LPR and FIPS 140-2 crypto, and you have a camera that scales from single-site deployments (parking-lot entrance monitoring) to large-scale infrastructure (port perimeter, toll plaza, telecom backbone). Not a one-size-fits-all choice—but for high-security outdoor environments where you need to see and identify at distance, it's a solid engineering decision.
