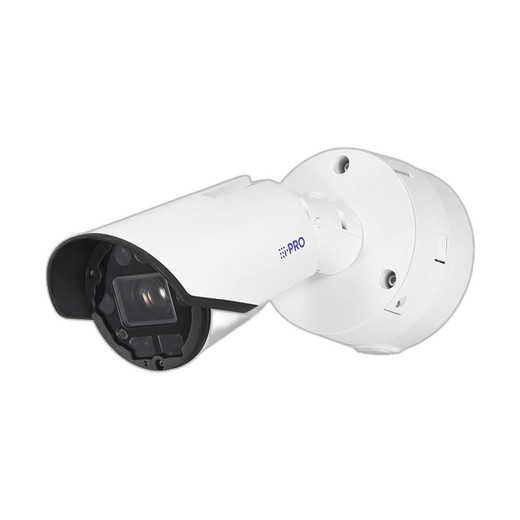

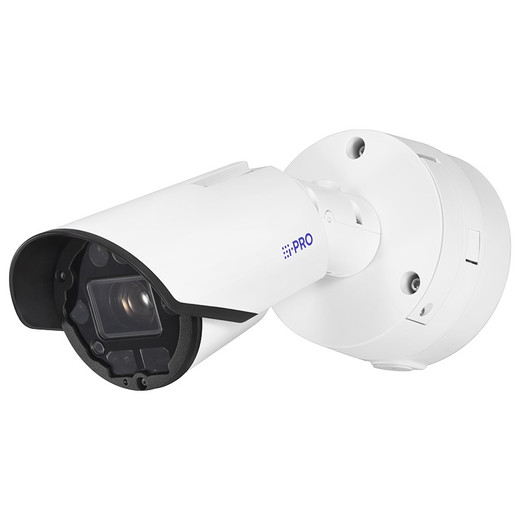

i-PRO WV-S15501-Z1L 5MP Outdoor IR Bullet Camera
The i-PRO WV-S15501-Z1L is a professional-grade 5MP outdoor IR bullet camera engineered for long-range surveillance in demanding environments. Built on a 1/2.8-inch CMOS sensor, this camera combines motorized 10x optical zoom with integrated infrared illumination, delivering exceptional low-light performance and flexible framing capabilities. Its robust IP66/NEMA 4X-rated housing and IK10 vandal rating make it suitable for perimeter monitoring, parking facilities, transportation hubs, and wide-area outdoor deployments where reliability and image clarity are non-negotiable.
Key Features
- 5MP CMOS Sensor with Advanced Imaging: 1/2.8-inch sensor with 132 dB dynamic range via Super Dynamic mode, capturing detail in high-contrast environments with simultaneous bright and dark zones
- 10x Motorized Optical Zoom: Varifocal lens (4.7–47mm) with f/1.6 aperture and motorized focus for flexible framing without digital interpolation loss
- 180m Built-in IR Illumination: Integrated IR LED with selectable power modes (High/Middle/Low/Off) enables zero-lux surveillance during complete darkness; PoE++ powered with no external array required
- Multiple Video Compression: H.265, H.264, and MJPEG support for bandwidth optimization and codec flexibility
- AI Analytics at the Edge: Built-in AI processing supports License Plate Recognition (LPR) and Facial Recognition for real-time detection without external servers
- Image Stabilization: Optical stabilization reduces motion blur in dynamic scenes
- Audio Support: Integrated microphone for two-way communication and incident audio logging
- Day/Night Operation: Automatic day/night mode switching with IR cut filter for color and monochrome imaging
Technical Specifications
- Power & Connectivity: PoE++ (Class 4) via Ethernet; single cable deployment simplifies installation
- Durability: IP66 weatherproof and NEMA 4X ratings protect against rain, dust, and corrosive environments; IK10 vandal resistance withstands impact and tampering
- Storage: microSD card support for local edge recording and backup
- Security: HTTPS encryption and signed firmware prevent unauthorized access and tampering; ONVIF compatibility ensures integration with third-party VMS platforms
- Operating System: Android-based embedded OS for efficient resource management and future feature updates
Ideal Applications
This camera excels in scenarios requiring long-range identification and extended low-light operation: perimeter fencing and gates, vehicle parking and traffic monitoring, loading docks, building exteriors, and critical infrastructure protection. The combination of 10x zoom and 180m IR reach enables personnel identification from significant distances, while edge-based LPR and facial recognition reduce server load and enable real-time alerting.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-S15501-Z1L addresses a critical gap in outdoor surveillance: delivering zoom capability and infrared performance in a single sealed unit. The 10x motorized lens eliminates the need for separate fixed cameras or pan-tilt units, reducing deployment cost and complexity. The PoE++ Class 4 power delivery is essential—traditional PoE cannot sustain the IR LED at full power, making this specification non-negotiable for 180m nighttime coverage.
The inclusion of H.265 compression alongside edge analytics (LPR/Facial Recognition) positions this camera for large-scale deployments where bandwidth and processing resources are constrained. ONVIF compliance ensures vendor independence, critical for organizations avoiding proprietary lock-in. The IK10 vandal rating and IP66/NEMA 4X sealing make this suitable for unattended outdoor sites prone to weather exposure and tampering attempts.
