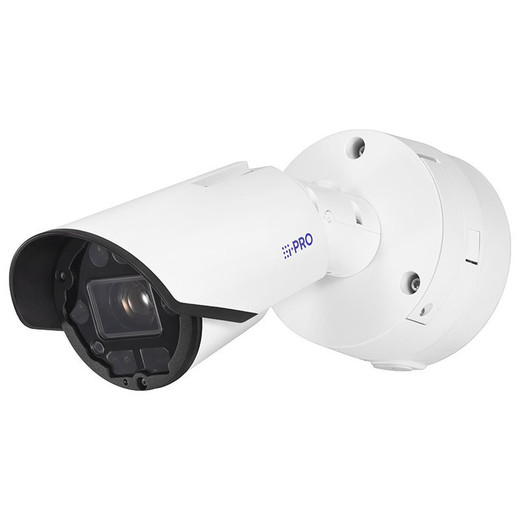

i-PRO WV-X15301-Z1L 2MP AI Outdoor IR Bullet Camera
The i-PRO WV-X15301-Z1L is a rugged, AI-ready outdoor bullet camera built for perimeter security, parking surveillance, and industrial deployments where durability and intelligent event detection matter. The 10x motorized zoom lens (4.7–47mm focal length) lets you frame distant subjects without resolution loss—critical when a single camera must cover variable distances across parking lots or large access points. Combined with integrated infrared illumination, H.265 compression, and native support for license plate recognition and facial analytics, this camera reduces both storage overhead and investigation time on high-priority events.
Key Features
- 2MP 1/2.8" CMOS Sensor (1920 × 1080): Delivers identification-quality detail while keeping bandwidth and storage costs manageable—roughly half the throughput of a 4MP camera at the same frame rate, meaningful when recording 24/7 across multiple cameras.
- 10x Optical Motorized Zoom (4.7–47mm): Motorized focus allows remote framing adjustments without a technician climbing a ladder; optical zoom preserves resolution across the range, unlike digital zoom which trades detail for magnification. Real benefit: one camera covers what would normally require two fixed-lens units.
- Integrated IR with 1.5m (5 ft) Night Vision Range: Built-in IR LED array supports continuous 24/7 surveillance; motorized ICR (Infrared Cut) filter switches automatically between color day mode and monochrome IR mode, eliminating the need for separate night/day cameras. Range is modest—suitable for doorways, access points, and close-range perimeter zones rather than long-distance parking lot coverage.
- AI Analytics Ready—LPR and Facial Recognition: Native support for License Plate Recognition (LPR) and Facial Recognition enables edge-based event filtering, reducing false alarms and storage bloat from low-value footage. Deploy on parking exits, toll booths, or high-security entrances to catch events first, investigate second.
- Optical Image Stabilization: Reduces motion blur during zoom operations, keeping video usable during windy conditions or on vibrating structures—a real factor in industrial or rooftop deployments.
- H.265, H.264, and MJPEG Compression: H.265 reduces file size roughly 40–60% versus H.264 at equivalent quality, cutting storage and bandwidth bills on long retention policies; fallback to H.264 or MJPEG for legacy VMS systems ensures broad compatibility with existing infrastructure.
- Built-in Microphone and Two-Way Audio: Enables on-site communication without external audio modules, useful for access control or incident response scenarios where a security operator needs to challenge or warn someone without sending personnel.
- IP66 and NEMA 4X Weatherproofing; IK10 Vandal Resistance: Rated for heavy rain, dust, and salt spray; skip this if you need full submersion (IP67+). IK10 vandal resistance handles impact from rocks, branches, or deliberate strikes without housing failure—critical for exposed outdoor installations.
- PoE++ (IEEE 802.3bt Class 4) Power: Single cable supplies both power and data; PoE++ delivers sufficient wattage for motorized lens and IR LED operation across extended cable runs, eliminating the need for separate power supplies at the camera. Check that your managed PoE switch supports Class 4 delivery—standard PoE (802.3af, 13W) will not reliably power this unit.
- MicroSD Local Storage: Optional onboard recording for failover or offline investigation if network connectivity drops—useful in industrial sites with intermittent uplink reliability.
- ONVIF Profile S, T, and G; Android OS: Standards-based protocol and operating system simplify integration with modern network video recorders and VMS platforms (Milestone, Genetec, Axis Camera Station, etc.). Secure firmware signing and HTTPS encryption protect against unauthorized access.
Integration and Compatibility
The WV-X15301-Z1L (often searched as WV X15301 Z1L) works with any ONVIF-compliant network video recorder or VMS. Its Android platform allows native integration with i-PRO camera management systems as well as third-party platforms supporting ONVIF Profile S, T, and G. The PoE++ requirement means your managed PoE switch must support IEEE 802.3bt Class 4 delivery; standard PoE (802.3af, 13W max) will undershoot the camera's power demands, especially during IR LED and motorized zoom operation. Plan your network infrastructure accordingly—a single Class 4 port can reliably support this camera and similar high-draw devices across runs up to 100 meters (330 feet).
When to Choose a Different Model
If your coverage zone is beyond 5–10 feet and requires sharp license plate or facial detail at distance, consider a higher-megapixel variant in the i-PRO outdoor line—4MP or 5MP sensors paired with longer lens ranges will deliver superior recognition accuracy and reduce the need for multiple cameras per zone. If IR range is a hard requirement and you need 20+ meters of night vision, evaluate dedicated IR spotlights or thermographic options rather than relying on onboard LEDs. If you cannot provision PoE++ infrastructure, look for models supporting lower-power PoE+ (802.3at, 30W) or dual power inputs. Finally, if indoor mounting or small form-factor installation is the priority, a compact turret or dome design will be easier to conceal and mount on typical building surfaces.
Frequently Asked Questions
Q: What's the maximum cable run length for PoE++ power on the WV-X15301-Z1L?
A: IEEE 802.3bt Class 4 PoE++ supports full power delivery up to 100 meters (330 feet) of Cat5e or better cabling. Beyond that distance, line loss may reduce power availability; consult your switch specifications and the camera's power budget to confirm adequate headroom.
Q: Does the WV-X15301-Z1L support integration with Milestone XProtect?
A: Yes. The camera is ONVIF Profile S, T, and G compliant and works with any Milestone XProtect version that supports ONVIF devices. Consult your VMS administrator for integration steps and firmware compatibility.
Q: Can I wall-mount or pole-mount the WV-X15301-Z1L?
A: Yes. The camera is a bullet form factor with standard mounting bracket provisions. Wall, pole, and eave mounts are available as optional accessories; verify mount compatibility with your camera supplier before purchase.
Q: What is the IR night vision range on the WV-X15301-Z1L?
A: Integrated IR illumination provides approximately 1.5 meters (5 feet) of usable night vision range. This is suitable for access points, doorways, and close-range perimeter zones, but not for long-distance outdoor areas. For extended night coverage, consider higher-power IR spotlights or thermographic alternatives.
Q: Is the WV-X15301-Z1L NDAA Section 889 compliant?
A: Consult the current i-PRO compliance matrix and the camera's datasheet for NDAA Section 889 and TAA eligibility. Compliance status may vary by firmware version and supply chain source; verify directly with the camera manufacturer or your authorized system integrator.
Q: What video codecs does the WV-X15301-Z1L support?
A: The camera supports H.265, H.264, and MJPEG compression. H.265 delivers roughly 40–60% storage savings versus H.264 at equivalent quality; fallback to H.264 or MJPEG is available for legacy VMS platforms that do not support H.265.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-X15301-Z1L hits a useful middle ground for outdoor perimeter and industrial surveillance: 2MP is tight for wide-area coverage, but the 10x motorized zoom makes one camera do the work of two fixed-lens units, and the PoE++ power budget lets you deploy across long cable runs without auxiliary supplies. The H.265 codec and integrated LPR analytics mean storage and infrastructure costs drop faster than with older camera generations. Real catch: the 1.5m IR range is a dealbreaker if you need true long-distance night vision—this camera is for access points and near-field monitoring, not 40-foot parking lots.
Technical Highlights:
- 10x Motorized Zoom (4.7–47mm): Optical zoom preserves 2MP detail across the focal range. Motorized focus means no ladder climbs to re-aim—critical when you have dozens of cameras and weather or site changes demand adjustment. Optical image stabilization keeps the zoom video steady even in wind or on vibrating surfaces.
- H.265 Compression (40–60% storage reduction): Cuts file size roughly in half versus H.264 at equivalent quality. On a 24/7 multi-camera recorder with 30-day retention, this difference compounds to thousands of dollars in storage hardware or cloud SSD costs. Fallback to H.264/MJPEG protects against VMS platform fragmentation.
- PoE++ (Class 4) Power: Single cable delivers both power and data. Class 4 wattage is sufficient for motorized lens drive and IR LED draw across 100-meter runs. Non-negotiable: verify your switch supports 802.3bt Class 4 before ordering. Standard PoE (802.3af) will brown-out the camera during IR or zoom activity.
- LPR and Facial Analytics: Edge-based detection reduces false alarms and video bloat. Useful for toll plazas, parking exits, and high-security entrances where you want the camera to flag events, not just record everything for later investigation.
Deployment Considerations:
- IR Range Limitation: 1.5 meters is tight. This is a doorway and access-point camera, not a 20-meter parking lot surveillance tool. If your zone requires longer-distance night vision, plan auxiliary IR illumination or evaluate thermographic alternatives.
- PoE++ Infrastructure Required: Do not assume your existing PoE switch supports Class 4. High-draw devices like this camera will starve on older PoE+ switches. Audit your switch specs and budget for Class 4 upgrades if necessary—a single port supports multiple Class 4 devices within power budget, so one upgrade may pay for itself across the installation.
- 2MP Sensor Tight for Wide Zones: At 47mm zoom, you get good detail on faces and plates, but the initial wide-angle framing (4.7mm) covers less area than a 4MP or 5MP camera at the same distance. Size your zones accordingly—this is a targeted surveillance tool, not a wide-area overview camera.
Deploy the WV-X15301-Z1L on parking exits, toll plazas, secure entry points, or industrial access gates where motorized zoom and AI-driven LPR/facial recognition matter more than ultra-wide coverage or extreme low-light performance. Pair it with a dedicated PoE++ switch (IEEE 802.3bt Class 4) and an NVR that handles H.265 decoding; if your VMS is legacy, confirm H.264 fallback support before commissioning.
