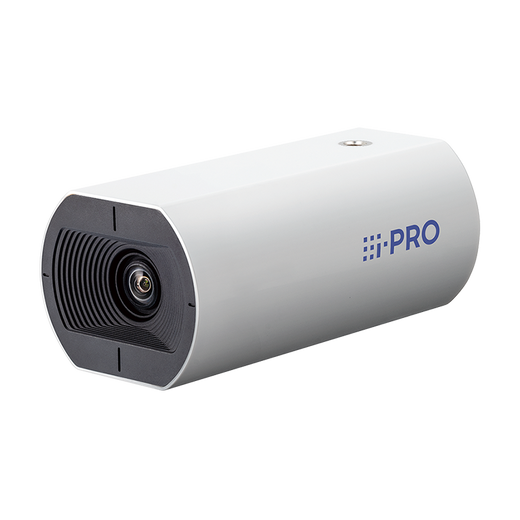

i-PRO WV-U11300-V2 2MP Indoor Box IP Camera

i-PRO WV-U11300-V2 2MP Indoor Box Camera

The i-PRO WV-U11300-V2 is a compact 2MP indoor box camera purpose-built for professional surveillance deployments requiring flexible framing in space-constrained environments. Engineered with motorized zoom and focus capabilities, this wired PoE camera delivers reliable performance across retail, office, and facility applications where remote lens adjustment and precise scene composition are critical.

Key Features

• 2MP CMOS Sensor with Adaptive Optics — 1/2.8" CMOS image sensor captures 1920×1080 resolution at 30 fps with horizontal field of view from 43° (telephoto) to 100° (wide) in 16:9 mode, enabling flexible scene framing without site revisits.
• 2.5x Motorized Zoom and Focus — Motorized zoom lens (2.9–7.3 mm focal length) with motorized focus allows remote lens adjustments. Extra zoom extends to 2.5x–3.8x at 1280×720 resolution for enhanced magnification.
• 120 dB Dynamic Range via Super Dynamic — Super Dynamic mode with adjustable levels (0–31) compresses brightness extremes, preserving detail in high-contrast scenes with mixed lighting conditions.
• Exceptional Low-Light Performance — Minimum illumination as low as 0.006 lx (color) and 0.0025 lx (B&W) with extended shutter support operation in near-darkness while maintaining image quality.
• H.265 and H.264 Codec Support — Dual compression formats with configurable bit-rate modes (constant, VBR, frame-rate, best-effort) optimize bandwidth and storage efficiency across network deployments.
• Advanced Image Processing — Intelligent Auto, Back Light Compensation, Fog Compensation, Digital Noise Reduction (0–255), and Adaptive Black Stretch deliver consistent video quality across varying conditions.
• PoE Powered — IEEE 802.3af compliant PoE (DC48V, 90mA, ~4.3W) eliminates separate power infrastructure for simplified installation.
• Motion and Scene Detection — Video Motion Detection with 4 configurable zones and Scene Change Detection enable intelligent alarm triggering and event-based recording.
• Flexible Storage and Connectivity — Support for microSD cards (up to 512GB), simultaneous audio/video transmission, and ONVIF compatibility ensure integration with diverse NVR and VMS platforms.
• Privacy and Security — Up to 8 privacy zones, pre-installed GlobalSign certificate, HTTPS encryption, IEEE 802.1X authentication, and brute-force protection safeguard sensitive areas and network security.

Technical Highlights

Optical Performance: The motorized varifocal lens provides 43°–100° horizontal coverage at 1920×1080, with maximum aperture ranging from F2.0 (wide) to F3.0 (telephoto). DORI analysis supports detection at 32.2m (wide) to 97.5m (telephoto), observation at 12.9m–39.0m, recognition at 6.4m–19.5m, and identification at 3.2m–9.7m.

Network and Audio: Gigabit Ethernet (10Base-T/100Base-TX) with IPv4 and IPv6 protocol support including RTSP, MQTT, and SFTP. Integrated microphone and speaker support G.726, G.711, and AAC-LC audio compression with half-duplex and full-duplex interactive modes.

Environmental Durability: Rated for -10°C to +50°C operating temperature and 10–90% humidity (non-condensing). UL, CE, and IEC certification ensures compliance with international safety and EMC standards. Compact design (59×49×116mm) with ~165g weight simplifies ceiling or wall mounting.

Applications

Ideal for retail environments requiring flexible pan and zoom coverage, corporate offices needing discreet monitoring in lobbies or secure areas, warehouses with variable lighting, and facilities requiring long-range detection without mechanical PTZ complexity. Remote motorized focus and zoom reduce maintenance costs while improving operational efficiency in multi-site deployments.

Karl Wilson

The WV-U11300-V2 bridges the gap between fixed-lens and PTZ camera applications. Its motorized zoom and focus eliminate the need for manual lens adjustment or costly site revisits, while the compact box form factor fits tight spaces where PTZ domes cannot be installed. The 120 dB Super Dynamic range and sub-lux sensitivity excel in retail and office environments with mixed artificial and natural lighting.

H.265 support reduces bandwidth by up to 50% compared to H.264, lowering storage and network infrastructure costs in large deployments. ONVIF compliance and dual codec flexibility ensure vendor-agnostic integration. Motion detection with multi-zone configuration and privacy masking make this camera suitable for privacy-sensitive facilities like healthcare and finance where selective monitoring is required.

The integrated microSD slot provides emergency local backup, though network-based recording to an NVR remains the recommended architecture for professional installations.
