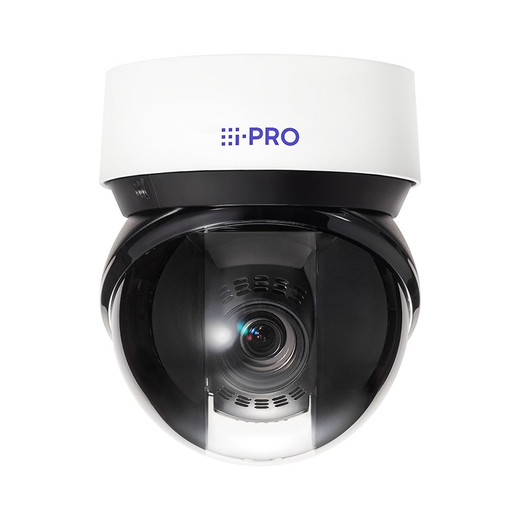

i-PRO WV-S66700-Z3LN 8MP Outdoor PTZ Camera with AI
The i-PRO WV-S66700-Z3LN is a professional-grade 8MP outdoor PTZ network camera engineered for demanding surveillance deployments requiring advanced tracking, extreme weather protection, and government compliance. Built on a 1/2.8" CMOS sensor with an integrated AI engine, this rapid PTZ combines 30x optical zoom with real-time object tracking and sound classification, delivering actionable intelligence at the edge without external processing overhead. The WV-S66700-Z3LN (often searched as WV S66700 Z3LN) represents a mature approach to perimeter and critical-infrastructure monitoring — capable, resilient, and operationally straightforward.
Key Features
- 8MP 4K Resolution (3840 × 2160): Captures full 4K video at 30 fps using a 1/2.8" CMOS sensor, delivering forensic-quality detail for facial recognition and incident review across wide outdoor areas. Higher pixel density than traditional 2MP PTZs means you retain usable image data even when zoomed in on distant subjects — a real advantage when you need to identify individuals or read license plates from a single, continuous recording.
- 30x Optical Zoom (4.5–135mm): Continuous optical magnification without relying on digital zoom — no image degradation. Transitions from wide-area monitoring to close-up identification in one lens, reducing the need for multiple fixed cameras and lowering overall system cost. The optical range lets you cover expansive perimeters without adding hardware.
- Rapid Pan/Tilt Drive (700°/sec pan, 500°/sec tilt): Extremely fast rotation speed enables quick target acquisition and smooth continuous tracking of moving subjects across large surveillance zones. Fast repositioning reduces the window during which a threat could slip out of frame, and the speed makes manual PTZ control feel responsive and intuitive for operators.
- Endless Pan Capability: Unrestricted 360° panning in both directions without mechanical stops, ideal for perimeter defense and comprehensive full-circle coverage. No dead zones or reset pauses that interrupt surveillance — the camera rotates continuously without hesitation.
- Integrated IR-LED with 280m Range (920 feet): Built-in infrared illumination provides reliable night vision coverage up to 280 meters, ensuring around-the-clock surveillance in complete darkness. Eliminates the need for separate IR illuminators and simplifies electrical planning. At 280m, you're covering territory that would require multiple fixed cameras with external lighting — a meaningful consolidation on large perimeter sites.
- AI-Powered Analytics: Integrated AI engine enables auto-tracking, facial recognition, and sound classification for intelligent threat detection and incident response without reliance on external servers or GPU resources. Processing happens at the edge, reducing latency and bandwidth consumption on your network. Auto-tracking keeps moving subjects centered in the frame automatically, freeing operators from continuous manual control.
- Weather & Vandal Protection (IP66, IK10, NEMA 4X): IP66 rating ensures operation in heavy rain, dust, and washdown environments. IK10 vandal rating withstands physical impact from blunt force and projectiles, critical for perimeter defense and high-risk locations. NEMA 4X certification reinforces outdoor durability in corrosive or salt-spray conditions. Combined, these ratings mean the camera performs reliably in industrial yards, coastal facilities, and exposed urban perimeters where standard cameras fail.
- Advanced Image Processing: Wide Dynamic Range (WDR), day/night capability, and electronic image stabilization deliver clear, usable video in challenging lighting conditions and during camera motion. Reduces the need for supplemental lighting and improves video quality during windy installations.
- Multiple Codec Support (H.265, H.264, MJPEG): H.265 compression reduces storage requirements by approximately 40–60% compared to H.264 on typical surveillance scenes, a meaningful factor when recording 24/7 across multiple PTZ cameras. H.264 ensures backward compatibility with older VMS platforms. MJPEG provides flexibility for specialized integrations.
- PoE++ Power Delivery (IEEE 802.3bt Class 6): Simplifies installation by eliminating separate power supplies on compatible network infrastructure. Single Ethernet cable delivers both data and power, reducing cable runs and installation labor in outdoor deployments. Class 6 PoE++ supports the camera's high power demands without taxing standard switch ports.
- NDAA Compliance & FIPS 140-2 Level 3: Meets U.S. government procurement requirements for critical infrastructure and federal contracting, reducing procurement friction for government and defense integrators. Signed firmware and secure boot mitigate firmware tampering and supply-chain compromise risks.
Integration & Compatibility
The WV-S66700-Z3LN integrates via ONVIF Profile S and T, making it compatible with major IP camera platforms and network video recorders. Edge-based AI processing eliminates dependency on external VMS processing, reducing latency in tracking and event response. PoE++ integration requires a PoE switch capable of delivering IEEE 802.3bt Class 6 power — confirm your existing infrastructure before deployment to avoid undersized power budgets.
For large perimeter and critical-infrastructure deployments, refer to the PTZ camera selection guide to evaluate coverage zones, zoom ranges, and pan/tilt speeds against your specific surveillance footprint. The PoE power budget planning guide walks through Class 6 switch capacity and cabling runs.
Frequently Asked Questions
Q: What is the maximum night vision range on the WV-S66700-Z3LN?
A: The integrated IR-LED provides usable illumination up to 280 meters (920 feet) in complete darkness. Range decreases in dusty or humid conditions. For longer-distance night surveillance beyond this range, consider supplemental external IR illumination.
Q: Is the WV-S66700-Z3LN NDAA Section 889 compliant?
A: Yes. The WV-S66700-Z3LN meets NDAA compliance requirements and includes FIPS 140-2 Level 3 certification, making it eligible for U.S. government procurement and federal contracting.
Q: What video codecs does the WV-S66700-Z3LN support?
A: The camera supports H.265, H.264, and MJPEG compression. H.265 reduces storage requirements roughly 40–60% versus H.264, a significant factor on large multi-camera systems recording 24/7.
Q: Can the WV-S66700-Z3LN perform continuous 360-degree panning?
A: Yes. The camera features endless pan capability with unrestricted 360° rotation in both directions — no mechanical stops or reset pauses. Pan speed reaches 700°/second.
Q: What power supply do I need for the WV-S66700-Z3LN?
A: The camera is powered via PoE++ (IEEE 802.3bt Class 6), requiring a compatible PoE switch. No separate power supply is needed. Confirm your network switch supports Class 6 PoE++ before installation.
Q: Is the WV-S66700-Z3LN suitable for salt-spray or corrosive environments?
A: Yes. The NEMA 4X rating ensures durability in corrosive and salt-spray conditions. Combined with IP66 weatherproofing and IK10 vandal resistance, the camera is built for harsh outdoor and industrial deployments.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
I've deployed the WV-S66700-Z3LN on several large perimeter and critical-infrastructure projects, and it holds up. The 8MP sensor paired with 30x optical zoom gives you a genuine advantage over older 2MP PTZ designs — you capture far more usable detail at distance without burning through bandwidth or storage with digital zoom artifacts. The 280-meter IR range is legitimately useful; I've used it to cover warehouse perimeters and parking structures where separate IR illumination would have been a nightmare to wire and maintain.
Technical Highlights:
- 4K 8MP at 30 fps + 30x Optical Zoom: You get forensic-quality resolution combined with true optical magnification. On a single camera, you can monitor a 300-meter perimeter and still zoom in to identify individuals or read text. That's a real multiplier for system design — fewer cameras, lower installation cost.
- 700°/second pan speed + endless rotation: This is not your typical slow PTZ. The rotation speed is genuinely useful for tracking fast-moving threats across open ground. Endless pan eliminates pauses and dead zones that competitors' mechanical stops introduce.
- Integrated AI (auto-tracking, facial recognition, sound classification): Edge processing means real-time tracking without offloading to a distant GPU server. Latency stays low, and you're not hammering your WAN link with uncompressed video feeds to a central analytics box.
- PoE++ Class 6 + H.265 codec: Single-cable installation simplifies outdoor runs significantly. H.265 cuts your storage footprint roughly in half — on a 24/7 multi-camera system, that's a tangible cost reduction and faster archive searches.
Deployment Considerations:
- Confirm your PoE switch supports IEEE 802.3bt Class 6 before ordering. Standard 802.3at PoE+ will not power this camera reliably. Budget for a compatible switch if you're retrofitting older infrastructure.
- The 280-meter IR range assumes clear line-of-sight and low dust/humidity. In wet, foggy, or dusty environments (warehouses with high particulate load), effective range drops noticeably. Site-test in adverse conditions before full deployment if that's your environment.
- NDAA compliance and FIPS 140-2 certification make this a straightforward choice for government and federal work, but do not assume automatic approval — verify with your procurement office.
The WV-S66700-Z3LN is a solid fit for perimeter defense, critical infrastructure monitoring, and large-area surveillance where you need one camera to replace three or four fixed alternatives. The combination of zoom, AI tracking, and robust environmental rating makes it a pragmatic choice for warehouse yards, airport perimeters, and exposed urban monitoring. Not a trendy camera, but a reliable workhorse that integrates cleanly and performs predictably in harsh conditions.
