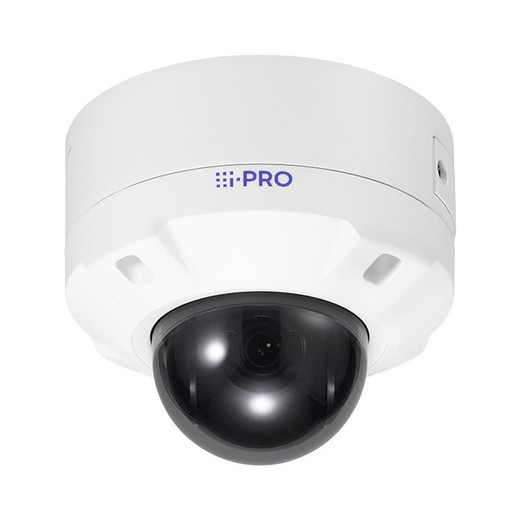

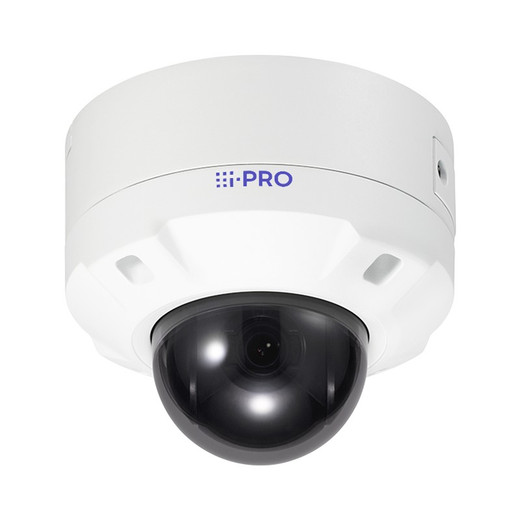

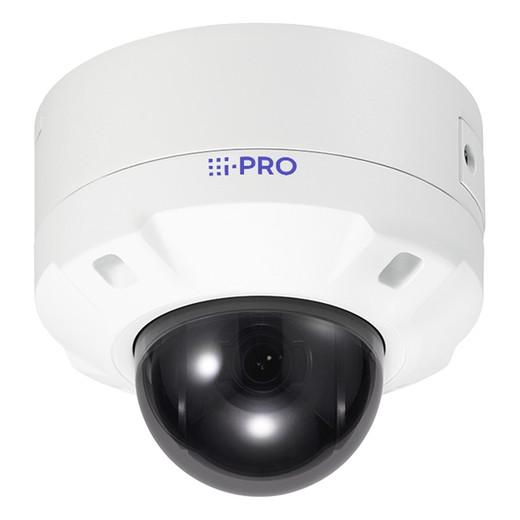

i-PRO WV-S65300-ZYG 2MP Outdoor Vandal-Resistant PTZ Camera

The i-PRO WV-S65300-ZYG is a purpose-built 2MP (1080p) outdoor pan-tilt-zoom network camera engineered for high-security surveillance applications demanding robust vandal resistance and autonomous tracking. Built to withstand harsh outdoor conditions and intentional tampering, this compact dome camera combines AI-powered analytics with industrial-grade durability to deliver unattended surveillance with minimal operator intervention.

Key Features

• AI Auto-Tracking & Analytics Engine: Automatically detects and tracks people and vehicles with intelligent zoom to maintain subject detail. Includes fog compensation and noise reduction for consistent performance in challenging weather.
• Exceptional Vandal Resistance: IK10-rated polycarbonate dome with aluminum die-cast housing withstands high-impact attacks. Engineered for 1 million pan-tilt movements, reducing maintenance in high-frequency deployments.
• 3.1x Optical Zoom: Fixed 2.9–9mm lens delivers full 1080p resolution at 30 fps without digital interpolation, preserving image quality at distance.
• Superior Low-Light Performance: 144dB WDR, built-in IR illumination, and day/night mode enable reliable color operation down to 0.02 lux and night vision across complete darkness.
• IP66 & NEMA 4X Environmental Rating: Sealed against dust, water jets, and corrosive atmospheres for outdoor deployment in any climate.
• Enterprise Security: FIPS 140-2 Level 3 compliance with NXP EdgeLock SE050F secure element, HTTPS encryption, and signed firmware prevent unauthorized access and tampering.
• Flexible Connectivity & Storage: PoE Class 0 power supply, ONVIF compatibility, microSD expansion, and H.265/H.264/MJPEG compression support integration into diverse security ecosystems.
• Audio & Facial Recognition: Built-in audio support and facial recognition analytics enable comprehensive situational awareness and forensic investigation.

Technical Highlights

Imaging & Optics: 1/2.8-inch CMOS sensor captures 2MP resolution at 30 fps with 3.1x optical zoom. Fixed 2.9–9mm lens balances wide-area coverage with zoom capability for detail recognition.

Environmental Durability: IP66 and NEMA 4X ratings ensure water and dust ingress protection. IK10 vandal rating provides impact resistance equivalent to 5kg steel ball dropped from 1.25m. Aluminum and polycarbonate construction withstands outdoor corrosion and intentional damage.

Low-Light & Night Vision: 144dB WDR handles backlit scenes. IR illumination extends up to 0.3m for covert night monitoring. Day/night mechanical IR filter switching maintains color fidelity in variable lighting.

Cybersecurity: FIPS 140-2 Level 3 certification and NXP EdgeLock SE050F secure element protect against firmware tampering and credential compromise. HTTPS encryption and signed firmware enforce secure communication and prevent unauthorized updates.

Applications

• Critical infrastructure perimeter monitoring (power plants, water facilities, utilities)
• Transportation hubs requiring unattended wide-area tracking (parking lots, vehicle yards, shipping terminals)
• High-vandalism zones with high-frequency pan-tilt demand (outdoor retail, public plazas, campuses)
• Autonomous surveillance with minimal staffing (remote facilities, 24/7 monitoring)

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S65300-ZYG addresses a critical gap in outdoor PTZ surveillance: combining vandal resistance with AI analytics in a compact form factor. The IK10 rating and 1-million pan-tilt cycle rating eliminate typical failure points in harsh-duty applications. AI auto-tracking with fog compensation and noise reduction significantly reduces false alerts and operator fatigue compared to fixed cameras or traditional manual PTZ units.

The 144dB WDR and 0.02 lux low-light sensitivity ensure usable imagery across dawn/dusk transitions and overcast conditions without color washout. Enterprise-grade FIPS 140-2 Level 3 security with secure element prevents unauthorized firmware modification—critical in critical infrastructure deployments. Compact 155mm diameter enables retrofit into low-ceiling and covert installations where full-size PTZ domes are impractical.

PoE Class 0 power simplifies cabling. ONVIF compatibility ensures integration into heterogeneous VMS ecosystems without vendor lock-in. Ideal for security teams prioritizing autonomous surveillance resilience and forensic detail capture in high-risk outdoor environments.
