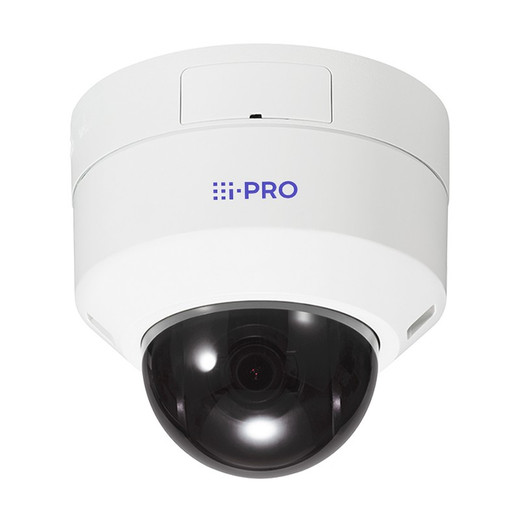

i-PRO WV-S61300-ZYG 2MP Indoor PTZ Camera

i-PRO WV-S61300-ZYG 2MP Indoor PTZ Camera

The i-PRO WV-S61300-ZYG is a compact 2MP indoor PTZ camera purpose-built for facilities requiring autonomous surveillance with minimal operator overhead. Integrating an on-camera AI engine, this ceiling-mounted camera delivers intelligent person and vehicle detection, automatic tracking, and color night vision—all without reliance on external servers or edge appliances. The S-series architecture combines motorized pan/tilt capability with a 3.1x optical zoom lens, making it ideal for indoor spaces where discreet, flexible coverage and rapid threat response are critical.

Key Features

• 2MP Native Resolution (1920×1080): Full 1080p video from 1/2.8-inch CMOS sensor ensures clear subject identification and detail capture in controlled indoor environments.
• 3.1x Optical Zoom with 2.9–9mm Varifocal Lens: Motorized zoom capability enables operators to focus on subjects of interest without digital degradation or image loss.
• AI Auto-Tracking: On-camera AI engine automatically detects people and vehicles, intelligently zooms into targets, and maintains continuous tracking across coverage areas—reducing detection gaps and accelerating alert response.
• Color Night Vision (0.002–0.03 lx): Advanced low-light imaging captures color video in near-darkness, extending 24-hour surveillance effectiveness without heavy reliance on infrared alone.
• Super Dynamic WDR (144dB): Exceptional wide dynamic range handles mixed lighting conditions, from bright windows to shadowed corners, maintaining image quality across challenging indoor scenes.
• H.265 Video Compression: Next-generation codec reduces bandwidth and storage requirements while maintaining video fidelity.
• PoE Power (Class 0): Simplified installation via single Ethernet cable for power and data delivery.
• Expandable AI Applications: Support for optional AI privacy guard, person/vehicle attribute detection, and additional custom analytics for specialized workflows.
• Rugged Design: Pan/tilt mechanism rated for 1 million movements; operable across 10–90% humidity (non-condensing) for reliable long-term deployment.
• FIPS 140-2 Level 3 Compliance: Integrated EdgeLock® SE050F secure element from NXP Semiconductors provides cryptographic protection for critical surveillance operations.

Technical Specifications

• Video Compression: H.265, H.264, MJPEG
• VMS Compatibility: ONVIF-compliant; third-party VMS integration via RTSP/RTMP streaming
• Audio Support: Yes
• Storage: microSD card support
• Connectivity: Ethernet with PoE
• Security Features: Signed firmware, HTTPS encryption
• Operating Conditions: 10–90% humidity (non-condensing)
• Mount Type: Ceiling

Applications

• Corporate offices and reception areas requiring intelligent occupant monitoring
• Retail environments with dynamic foot traffic and loss prevention needs
• Warehouse and logistics facilities where vehicle and personnel tracking is essential
• Educational institutions and multi-tenant buildings needing flexible PTZ coverage
• Facilities with strict security compliance requirements (FIPS 140-2)

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The WV-S61300-ZYG addresses a specific market gap: organizations needing PTZ capability without the complexity and cost of external AI infrastructure. The integration of on-camera AI engines has matured significantly, and i-PRO's implementation here—particularly the auto-tracking and multi-attribute detection—eliminates the latency and bandwidth overhead of cloud or edge processing. The 144dB WDR is exceptional for indoor use, handling mixed natural and artificial lighting without frame-rate sacrifice.

Color night vision at 0.002 lx represents a meaningful advancement over traditional infrared, preserving identity markers and contextual detail in low-light scenarios. The 1 million movement endurance rating on the pan/tilt mechanism reflects industrial-grade durability, suitable for 24/7 continuous operation. FIPS 140-2 Level 3 compliance is increasingly mandatory in regulated sectors (financial services, healthcare), and the onboard secure element eliminates the need for external hardware security modules.

The H.265 codec is a practical choice for bandwidth-constrained networks, though facilities with legacy VMS systems should verify codec support. Overall, this camera delivers institutional-grade reliability and analytical capability in a form factor optimized for ceiling integration and operator-free performance.
