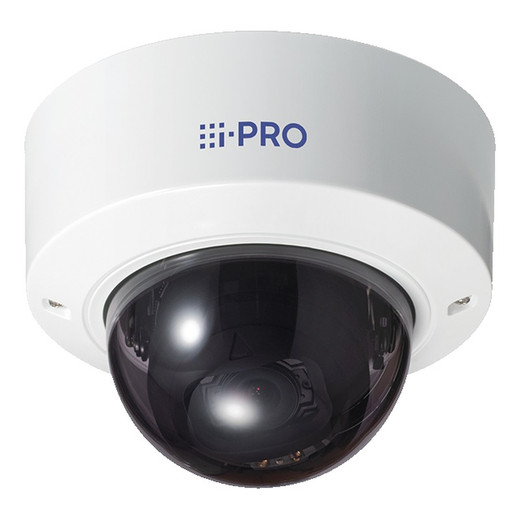

i-PRO WV-S22700-V2LG 8MP 4K Vandal Resistant Indoor Dome Camera
The i-PRO WV-S22700-V2LG is a purpose-built indoor dome camera for high-security deployments where impact resistance, advanced on-camera AI, and low-light clarity cannot be compromised. Built around a 1/1.8-inch CMOS sensor delivering 8MP 4K resolution (3840 × 2160), this camera combines a motorized varifocal lens, triple concurrent AI analytics, 132dB Super Dynamic Range, and FIPS 140-2 Level 3 cryptographic certification. It's engineered for retail loss-prevention, transportation hubs, government facilities, and institutional environments where both physical durability and data security are audit requirements.
Key Features
- 8MP 4K Resolution with Motorized Varifocal Lens: The 4.3–8.6mm varifocal optics deliver 2.0x optical zoom, eliminating the need to swap lenses or send technicians back to site for framing adjustments. This flexibility cuts deployment time and is a real cost saver when covering variable distances in retail aisles or warehouse sections without pre-planning exact lens focal lengths.
- 132dB Super Dynamic Range (WDR): Forensic-grade dynamic range handles extreme lighting contrasts—loading docks with harsh sunlight and dark warehouse interiors in the same frame. Adaptive black stretch, backlight, and high-light compensation prevent blown-out or crushed-black footage that renders forensic identification useless. Critical when you need usable detail across high-contrast scenes.
- Color Night Vision at 0.12–0.17 Lux with 35m IR Range: Built-in IR LED illumination preserves color detail in near-darkness with intelligent auto day/night switching. Unlike monochrome IR-only designs, color night vision avoids aliasing artifacts and false motion triggers—particularly useful for retail fitting-room surveillance and after-hours facility monitoring where color identification matters.
- Triple Concurrent AI Analytics: Integrated AI Engine runs people detection, vehicle detection, and AI Sound Classification simultaneously on-camera without offloading to external servers. This reduces bandwidth overhead and improves real-time alerting latency on network video recorders, meaning faster response to events when it counts.
- IK10 Vandal Resistance Rating: Rugged dome construction rated IK10 absorbs high-impact strikes typical in accessible public spaces—shopping centers, transit stations, detention facilities. Reinforced housing resists deliberate tamper attempts without compromising optical clarity, a critical difference in environments where cameras face physical aggression.
- FIPS 140-2 Level 3 Compliance with Secure Element: Features an EdgeLock® SE050F NXP Semiconductors trusted platform module, signed firmware, and HTTPS encryption. This certification is mandatory for federal procurement, healthcare networks, and financial institutions where cryptographic data integrity is audited and non-negotiable.
- H.265 Compression for Storage Efficiency: H.265 encodes footage at approximately 50% the file size of H.264 at equivalent quality. On 24/7 multi-camera continuous recording, this cuts storage costs measurably and reduces bandwidth strain on your network infrastructure—a compounding savings on large deployments.
- PoE Class 0 Power Delivery: Draws under 13W via standard 802.3af PoE, eliminating the need for separate 12VDC power runs and reducing switch strain. This works on commodity network infrastructure and simplifies cabling during installation across multiple cameras.
- Flexible Codec Support: H.265, H.264, and MJPEG codecs allow matching encoding to your VMS architecture and bandwidth constraints. A microSD card slot enables local edge recording and failover backup, protecting against centralized storage outages and reducing dependency on constant network connectivity.
- Audio Bidirectional Communication: Built-in audio input and detection support two-way talk-back and sound-triggered events—useful for retail customer service verification, loss-prevention interviews, and facility management without sending staff to the location.
- ONVIF Profile Compliance: Full ONVIF Profile support ensures compatibility with a wide range of VMS platforms and third-party integrations, preventing vendor lock-in and allowing seamless deployment into existing security architectures.
Integration and Deployment Considerations
The WV-S22700-V2LG integrates with any ONVIF-compatible VMS and works directly with i-PRO camera management software. The combination of PoE Class 0 power, H.265 encoding, and edge microSD recording makes this camera suitable for environments where centralized NVR bandwidth or storage capacity may be constrained. The varifocal lens and superior WDR mean fewer cameras are required to cover variable-distance or high-contrast spaces, reducing total cost of ownership across multi-camera rollouts. For facilities requiring FIPS 140-2 Level 3 certification (federal, healthcare, financial), this model meets compliance without additional hardware or software layers, streamlining procurement and audit processes.
Frequently Asked Questions
Q: Is the WV-S22700-V2LG NDAA Section 889 compliant?
A: The WV-S22700-V2LG is manufactured by i-PRO, a Panasonic subsidiary. Verify current NDAA Section 889 status directly with i-PRO or your integrator, as compliance designations can change. Check the product's most recent certification documentation before federal procurement.
Q: What is the maximum storage capacity using the microSD card slot?
A: The WV-S22700-V2LG supports microSD card storage up to the card's rated capacity. Consult the datasheet or i-PRO documentation for the maximum supported microSD capacity and recommended card specifications for continuous recording.
Q: Can I use the WV-S22700-V2LG outdoors?
A: No. The WV-S22700-V2LG is rated for indoor use only. For outdoor vandal-resistant domes in the i-PRO family, consult a higher IP-rated variant designed for external mounting and weatherproofing.
Q: What VMS platforms does the WV-S22700-V2LG support?
A: The camera is ONVIF Profile S/T/G compliant, making it compatible with industry-standard VMS platforms including Milestone XProtect, Axis Camera Station, and other ONVIF-compliant systems. Verify specific integration requirements with your chosen VMS vendor.
Q: Does the WV-S22700-V2LG require a separate power supply?
A: No. The camera operates entirely on PoE Class 0 (802.3af) at under 13W, so any standard PoE-enabled network switch provides sufficient power without additional supplies or dedicated wiring.
Q: What is the warranty on the WV-S22700-V2LG?
A: Warranty terms are set by the distributor and i-PRO. Confirm the specific warranty period and coverage details with your specialty retailer at time of purchase.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The i-PRO WV-S22700-V2LG hits a specific deployment sweet spot: retail and institutional environments where you need 4K detail, rugged IK10 protection, and compliance-grade cryptography without external analytics hardware. The 132dB WDR and motorized varifocal lens eliminate common installation headaches—no more dark warehouse corners or blown-out fitting room footage, and no technician callbacks to adjust fixed lenses. The triple concurrent AI (people, vehicle, sound) running on-camera without server offload is where this model saves bandwidth and response time on larger deployments.
Technical Highlights:
- 132dB Super Dynamic Range: Handles extreme lighting contrasts in single frame without forensic detail loss—critical when surveillance spans loading dock (bright sun) and interior (shadow) simultaneously. You get usable footage, not guesswork.
- 4.3–8.6mm Motorized Varifocal (2.0x zoom): Eliminates post-install reframing calls. Adjust focal length remotely from your VMS, a real cost multiplier across 50+ camera deployments in multi-location retail chains.
- PoE Class 0 at under 13W: Fits on any 802.3af switch without power budgeting headaches. Simplifies cabling—one cable per camera, no separate 12V runs, no splitters, no guessing at power availability during site surveys.
- H.265 at 50% file size vs H.264: On 24/7 continuous recording across 30 cameras, that's roughly 15–20TB annual storage savings depending on scene complexity. Meaningful when your NVR spec depends on bit rate.
- FIPS 140-2 Level 3 with SE050F TPM: Signed firmware and cryptographic identity built-in—federal, healthcare, and finance procurement no longer require additional encryption appliances. One less integration layer.
Deployment Considerations:
- Indoor-only rating means no external mounting without additional housing. If you have outdoor vandal-resistant requirements in the same facility, you'll need a separate outdoor model from the i-PRO catalog.
- H.265 encoding backward-compatibility: older VMS versions or third-party analytics may not handle H.265. Verify your NVR and any edge analytics plugins support H.265 before standardizing codec selection across a large rollout.
- The 35m IR range is solid for indoor retail and warehouse aisles, but fails beyond that distance. If you're monitoring a 50m+ parking structure or loading yard externally, this camera won't reach. Plan IR coverage per site survey.
- microSD failover is local edge recording only—it doesn't replace centralized NVR backup. Use it for post-event clip extraction and local redundancy, not as your primary storage strategy.
Deploy this model where vandal resistance, FIPS compliance, and 4K detail are non-negotiable and space is indoors. Retail chains, government facilities, healthcare corridors, and loss-prevention teams will see clear ROI on H.265 storage savings and on-board AI reducing false alerts and VMS server load. If your site is outdoor, unlit beyond 35m, or lacks PoE infrastructure, look at the higher IP-rated variants in the i-PRO lineup instead.
