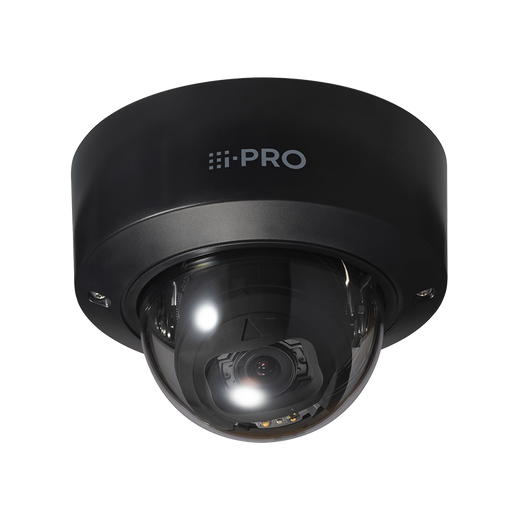

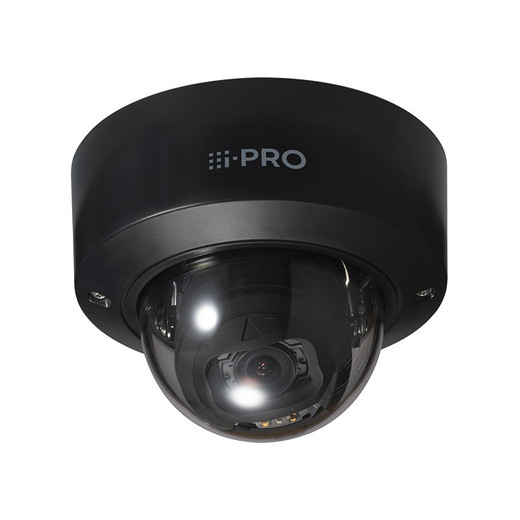

i-PRO WV-S22700-V2L1 4K Indoor Vandal-Resistant Dome Camera
Overview
The WV-S22700-V2L1 is a purpose-built 4K indoor dome camera designed for environments where physical tampering or vandalism is a documented risk. Built on i-PRO's S-series platform, this model pairs an IK10 vandal-resistant housing with integrated facial recognition analytics and 50m infrared illumination. The combination addresses a real deployment gap: standard domes lack the mechanical protection needed for high-risk interior spaces, yet outdoor ruggedized cameras are oversized and consume more power than necessary indoors. This model closes that gap without compromise on image quality or on-camera AI capability.
The WV-S22700-V2L1 draws under 13W via standard 802.3af PoE, meaning it won't strain your switch's power budget—a critical consideration when deploying multiple units across a facility. Single Ethernet cable carries both power and video, eliminating the need for separate 24VDC infrastructure or additional conduit runs.
Key Features
- 4K UHD Resolution (3840 × 2160, 8 MP): Captures 8 megapixels per frame, preserving facial detail even when zooming into recorded footage during post-incident investigation. At 4K, you retain legible facial features across large interior spaces—corridors, lobbies, warehouses—without needing additional cameras to cover the same area. This directly reduces total camera count and infrastructure cost.
- H.265 Smart Codec with H.264 and MJPEG Fallback: H.265 cuts bitrate 40–50% versus H.264 on comparable scenes. For 24/7 multi-camera recording, this translates directly to lower storage costs and reduced network congestion without visible quality loss. MJPEG support ensures compatibility with older VMS platforms if needed.
- IK10 Vandal Rating: The ruggedized dome housing withstands deliberate strikes and impact from blunt objects. This is not cosmetic toughness—IK10 means the camera continues operating after impacts that would permanently disable standard domes, making it essential for schools, transit hubs, retail environments, and warehouses where tampering or vandalism is documented risk.
- 50m Infrared Illumination (850nm): Built-in IR delivers reliable night vision across large interior spaces. The 0.04–0.06 lux color performance in near-darkness maintains color detail longer than competing models, improving facial recognition accuracy in dimly lit corridors, after-hours zones, or storage areas without external lighting.
- 2.0x Optical Zoom (4.3–8.6mm Motorized Varifocal Lens): Adjust focal length during installation without swapping optics. Wider framing covers larger areas; zoomed mode isolates faces for recognition tasks. This flexibility reduces the total number of cameras needed to cover a given interior space and simplifies maintenance logistics.
- Motorized IR Cut Filter & Automatic Day/Night Operation: Automatic switching between color (daylight) and monochrome (infrared-lit) modes ensures optimal image reproduction across lighting transitions. Manual override available if your workflow requires fixed color or monochrome output.
- Facial Recognition and Multi-Threaded AI Analytics: Integrated AI engine detects and recognizes faces in real time, enabling automated alerts for known threats or watchlist matches. Multi-threaded processing allows simultaneous analytics tasks—facial recognition, object detection, line crossing—without frame-rate degradation or dropped frames.
- Built-in Microphone & Two-Way Audio: Integrated microphone enables real-time communication from the command center to an incident location, reducing response time in critical scenarios. Audio is useful for verbal warnings or incident de-escalation.
- microSD Card Slot (Up to 512GB): Local recording and edge analytics capability. Footage stored on-device survives network outages and provides immediate playback without NVR dependency—valuable for rapid incident confirmation or forensic review when centralized recording is unavailable.
Integration & Compatibility
The WV-S22700-V2L1 is ONVIF-compliant, integrating seamlessly with third-party VMS platforms including Milestone XProtect, Genetec Security Center, and others. HTTPS encryption and signed firmware protect against unauthorized access and tampering. The camera supports role-based access control and integrates with standard network authentication methods. Consult your network video recorder documentation or VMS platform for specific codec and analytics plugin requirements.
When to Choose a Different Model
If you require outdoor deployment, vandal protection is not a concern, or you need 360° rotation (pan-tilt), consider a higher-resolution or panoramic variant within the i-PRO dome and IP camera families. If you need explosive-atmosphere compliance (ATEX/IECEx), consult i-PRO's specialty lines. For environments requiring permanent local storage without network connectivity, consider a model with integrated NVR capability or evaluate edge appliances.
Frequently Asked Questions
Q: Is the WV-S22700-V2L1 suitable for outdoor mounting?
A: No. This camera is rated for indoor use only (no IP environmental rating specified beyond IK10 impact resistance). For outdoor deployments, select an outdoor-rated dome or turret with IP66 or higher environmental sealing.
Q: What is the maximum microSD card capacity supported by the WV-S22700-V2L1?
A: Up to 512GB. Local recording capacity depends on resolution, frame rate, and compression—H.265 typically extends storage duration 40–50% versus H.264 on comparable footage.
Q: Does the WV-S22700-V2L1 work with Milestone XProtect?
A: Yes. ONVIF compliance enables integration with Milestone and other third-party VMS platforms. Verify codec and analytics plugin availability for your specific Milestone version before deployment.
Q: What is the power consumption of the WV-S22700-V2L1?
A: Under 13W via standard 802.3af PoE. This low power draw prevents overload on standard network switches and eliminates the need for PoE+ or external power supplies.
Q: How does the IK10 vandal rating differ from standard dome cameras?
A: IK10 means the camera housing withstands impacts from blunt objects and deliberate tampering that would disable standard domes. This is critical in high-risk indoor environments such as schools, transit hubs, and retail spaces where vandalism is a documented risk.
Q: Can the WV-S22700-V2L1 perform facial recognition on recorded footage?
A: Yes. Integrated facial recognition analytics detect and recognize faces in real time, enabling automated alerts and watchlist matching. The analytics engine runs on-board without requiring external processors or GPU acceleration.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The WV-S22700-V2L1 fills a specific deployment gap that most engineers encounter in warehouse automation, retail loss prevention, and institutional security: you need forensic-grade 4K image capture with on-board facial AI, but you also need the physical toughness (IK10 vandal rating) to survive tampering or deliberate damage. Most 4K domes are industrial-looking but fragile; most ruggedized domes max out at 1080p or 2MP. This model does both, and it does it over standard 802.3af PoE at under 13W—no power supply negotiation with facilities, no oversized conduit, no switch upgrades.
Technical Highlights:
- H.265 codec with 40–50% bitrate reduction: On a 24/7 multi-camera system recording at 4K, this translates to measurable storage savings and reduced network load. If you're running 10 cameras, you're looking at roughly half the bandwidth and half the storage footprint compared to H.264—a meaningful operational cost delta over three to five years.
- 50m IR at 850nm with 0.04–0.06 lux color retention: The fact that this dome maintains color detail in near-infrared-only conditions is the technical differentiator. Most 4K domes drop to monochrome or wash out. Here, you keep legible facial color even in dimly lit after-hours corridors, which significantly improves recognition accuracy when your facial AI is running watchlist matching at 2 a.m.
- IK10 + motorized varifocal (2.0x optical zoom): You're not locked into a single focal length at install time. Adjust coverage from 4.3mm (wider, 91° horizontal) to 8.6mm (tighter, 51° horizontal) without pulling the camera, walking a ladder, or swapping optics. In a retrofit or phased deployment, this flexibility saves labor and reduces total camera count.
Deployment Considerations:
- The microSD slot supports local recording up to 512GB, but do not rely on it as your primary archive. Use it as a failsafe for network outages or for edge analytics clips. Network-attached recording is the reference architecture for audit compliance and multi-site retention.
- Facial recognition runs on-camera, so quality matters. 4K at 30fps is the sweet spot; if you push higher frame rates, confirm your NVR can ingest the bitstream without transcoding overhead. H.265 also means your VMS must support Main Profile decoding—older Milestone or Genetec versions may require plugin updates.
- Two-way audio is useful, but remember that built-in mics pick up ambient noise; do not expect them to replace dedicated talk-down speakers in high-noise environments. Test audio intelligibility at your target mounting height before final commissioning.
The WV-S22700-V2L1 is the right choice if you're protecting a high-value interior space (warehouse receiving, retail stockroom, transit security office) where you need both forensic image quality and protection against tampering. It is not a fit if you need outdoor weather sealing, 360° pan-tilt coverage, or thermal imaging. For those, step to a different i-PRO line. For indoor vandal-resistant 4K with AI facial detection over standard PoE, this is the reference platform.
