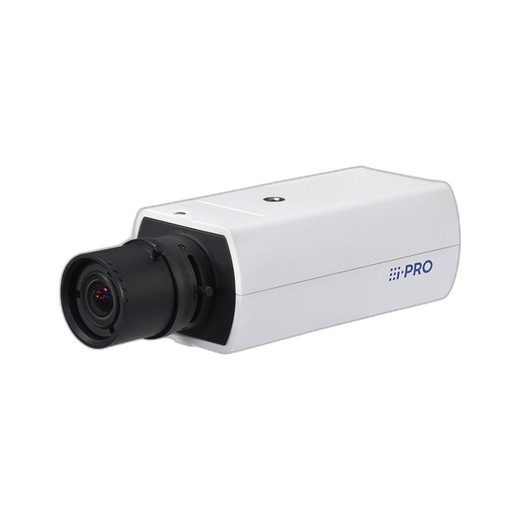

i-PRO WV-S1136A 2MP Indoor Box IP Camera

i-PRO WV-S1136A 2MP Indoor Box IP Camera

The i-PRO WV-S1136A is a compact 2MP indoor box camera engineered for surveillance environments requiring high-frame-rate capture, advanced imaging processing, and intelligent video analytics. Operating at 60fps with a 1/2.8-inch CMOS sensor, this wired PoE camera delivers precise image detail across diverse lighting conditions with minimal illumination requirements. Ideal for indoor facility monitoring, retail environments, and controlled installations where flexibility and analytics-driven insights are priorities.

Key Features

• High-Speed 60fps Capture: Delivers fluid 1920x1080 16:9 video at full 60fps, with selectable frame rates (60/50/30/25/15/12.5 fps) and multiple resolution options (1920x1080, 1280x720, 1280x960, 640x360, 2048x1536, VGA, QVGA) to optimize bandwidth and storage efficiency.
• Exceptional Dynamic Range Processing: Achieves maximum 144dB dynamic range via Super Dynamic technology (configurable levels 0-31), compensating for backlighting, harsh reflections, and mixed illumination scenes without sacrificing detail.
• Ultra-Low-Light Sensitivity: Color minimum illumination of 0.006 lx (30IRE, F1.2, 1/30s) and B&W 0.004 lx (50IRE, F1.2, 1/30s) enables operation in near-darkness with selectable ICR (Infrared Cut filter Removal) in Auto, Normal, IR Light, or SCC modes.
• Advanced AI Video Analytics: Integrated AI suite includes Video Motion Detection, Face Detection, People Detection, Vehicle Detection, Non-mask Detection, Occupancy Detection, and Scene Change Detection across configurable zones.
• PoE Powered Simplicity: IEEE 802.3af compliant PoE operation (Class 2 device, ~6.3W) eliminates separate power infrastructure, reducing installation complexity in compact mounting scenarios.
• Flexible Audio Support: Integrated microphone and line-level audio input with switchable output; supports G.726, G.711, and AAC-LC compression for two-way audio applications.
• Intelligent Compression: H.265 and H.264 codec support with Smart Coding (variable/fixed GOP control) and frame rate optimization to reduce bandwidth demand without compromising quality.
• Secure Network Architecture: FIPS 140-2 Level 3 certified hardware security module, HTTPS/SSL-TLS encryption, IEEE 802.1X authentication, and MQTT protocol support for enterprise deployments.

Technical Specifications

• Sensor & Optics: 1/2.8-inch CMOS image sensor with 5.57 mm (H) × 3.13 mm (V) scanning area; auto/preset/manual focus adjustment with configurable maximum shutter (1/10000–1/10 Fix across frame rate modes).
• Image Processing: Adaptive Black Stretch, Back Light Compensation, High Light Compensation, Fog Compensation, and Digital Noise Reduction (0-255 levels) for optimized output across conditions.
• Connectivity & Protocol: 10Base-T / 100Base-TX Ethernet with full IPv4/IPv6 support including TCP/IP, UDP, HTTP/HTTPS, RTSP, RTP, SMTP, DNS, NTP, SNMPv3, UPnP, and MQTT. ONVIF Profile G/M/S/T compliant. Supports up to 14 simultaneous users.
• Storage & Recording: microSD/microSDHC/microSDXC support (up to 512 GB) with VIQIS (Video Image Quality Indicator System) and privacy zone masking (up to 8 zones each).
• Alarm & I/O: 3 alarm input terminals (VMD, command, audio detection triggers); SDXC recording, email, HTTP, and TCP alarm notification actions.
• Power & Environmental: DC12V (5.8W) or PoE operation; -10°C to +50°C ambient temperature range; compact 75 × 57 × 146 mm form factor (370g); i-PRO white polycarbonate/ABS chassis.

Marty Allison

The WV-S1136A represents a mature engineering approach to compact indoor surveillance: the combination of 60fps native capture with a 1/2.8-inch sensor positions it for high-motion retail or transportation hub applications where temporal resolution directly impacts detection accuracy. The 144dB dynamic range ceiling via Super Dynamic mode, while software-driven rather than inherent sensor capability, effectively handles the mixed-illumination challenge common in mall atriums, reception areas, and backlit display zones—a notable advantage over fixed-WDR competitors at this price tier.

The AI analytics footprint (face detection, people/vehicle counting, occupancy heatmaps) is application-agnostic and zone-configurable, reducing reliance on external NVR-side processing for basic metrics. FIPS 140-2 Level 3 hardware-based encryption via the Ambarella CV25M SoC and GlobalSign device certificates signal serious enterprise-grade cryptographic intent, essential for financial or healthcare deployments. However, the 2MP resolution and fixed-lens box form factor impose a practical ceiling on identification tasks beyond ~3–4 meters; for facial recognition workflows, mounting distance and angle constraints are non-negotiable design parameters. The PoE Class 2 power budget and compact 370g mass make retrofit into existing ceiling grids straightforward, while dual audio I/O (mic/line in, mono out) supports collaborative spaces or two-way intercom use cases.
