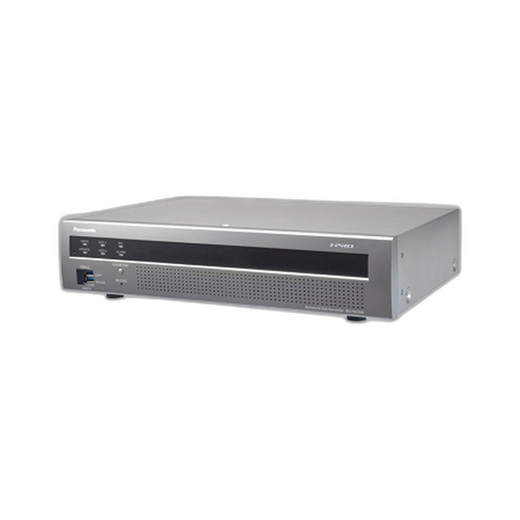

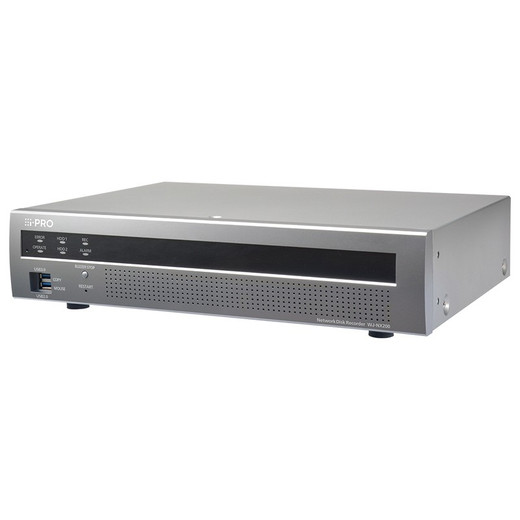

i-PRO WJ-NX200/12000T6 9-Channel 12TB Network Video Recorder
Overview
The WJ-NX200/12000T6 is a 9-channel network video recorder purpose-built for mission-critical surveillance without a PC backbone. It ships with 12TB of pre-installed storage (dual 6TB drives in RAID1 mirror configuration), delivering a PC-less solution tuned for retail, hospitals, education, banks, and factories. The unit supports mixed H.265/H.264 recording — compress older streams tighter and newer 4K feeds efficiently on the same box without codec switching penalties. Total throughput is 384 Mbps (192 Mbps dedicated to recording bandwidth), so concurrent playback and recording won't starve either function.
Compatibility
Designed for i-PRO series network cameras that comply with ONVIF NVT standards. The recorder automatically discovers and configures compatible i-PRO cameras via built-in ONVIF support — no manual IP entry needed. Supports 9 camera inputs (expandable to 16 with configuration), 9 terminal alarm inputs, 16 TCP camera-sourced alarms, and 128 event command channels. All alarm streams route through the same encrypted pipeline as video.
Installation Notes
120V AC mains power required. Dual HDMI outputs (4K/FHD capable) connect to local displays for live monitoring and forensic playback. The recorder includes pre-installed device certificates for secure communication — no separate kit purchases needed. Built-in GUI eliminates external VMS dependency. The unit is rack-mountable and designed for 24/7 operation. Instantaneous power failure protection: safe shutdown at power loss of 200 ms or more; normal operation maintained during transients under 200 ms. Proprietary eco-writing file system reduces mechanical load and extends 24/7 drive lifespan through optimized read/write cycles.
What's in the Box
- i-PRO WJ-NX200/12000T6 recorder with dual 6TB drives (RAID1 pre-configured)
- Power cable
- Mounting hardware
