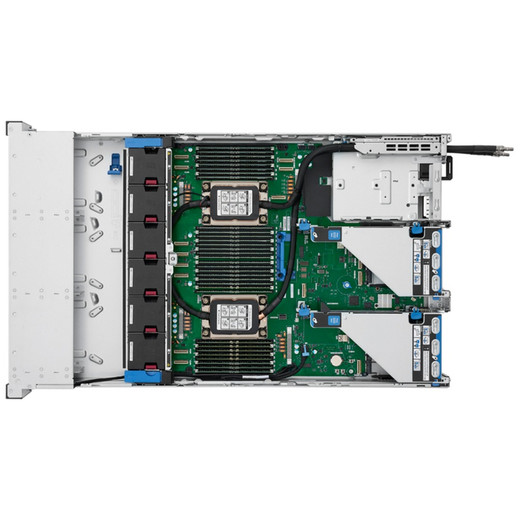

HPE Proliant Compute DL380 GEN12 6517P 1P 4X32GB-R 8SFF NS204I-U V2 MR408I-O 2X1 - P90822-005

HPE P90822-005 ProLiant DL380 Gen12 Configure-to-Order 2U Rack Server

Overview

The HPE ProLiant DL380 Gen12 (P90822-005) is a 2U rack-mount server configured with a single Intel Xeon 6517P processor (16 cores, 3.20 GHz, 72 MB L3 cache, 190W TDP) and four 32 GB HPE DDR5 Smart Memory modules for a 128 GB baseline. It ships with an HPE NS204i-u v2 480 GB NVMe boot device — keeping OS storage off your data drives — plus an HPE MR408i-o Gen11 OCP storage controller (4 GB cache) for workload storage via the eight SFF bays that ship without drives. Two HPE 1000W Flex Slot Titanium Hot Plug power supplies provide N+1 redundancy, and six high-performance fans ensure thermal headroom for sustained compute loads. This configuration targets mid-range enterprise workloads, rack servers, and dense compute deployments where DDR5 bandwidth and PCIe Gen5 expansion matter — specifically storage-intensive applications or virtualization stacks where the eight-drive cage gets populated post-delivery.

Compatibility

The P90822-005 is a factory-configured SKU within the HPE ProLiant DL380 Gen12 platform. Expansion is via up to 8 PCIe Gen5 slots plus 2 OCP 3.0 slots (front or rear) — consult the QuickSpecs for exact slot mapping. The onboard network controller is a Broadcom BCM5719 4-port 1GbE BASE-T OCP3 adapter; higher-speed NICs are installable via OCP 3.0. Storage options span any HPE-qualified SFF SAS/SATA/NVMe drives. Memory expansion must use HPE DDR5 Smart Memory DIMMs compatible with the Gen12 platform. An optional DVD-ROM is supported only through the Universal Media Bay (external). Security features include an onboard HPE TPM 2.0 module; optional locking Bezel Kit and Intrusion Detection Kit are sold separately. For detailed slot and drive compatibility, reference the HPE ProLiant Gen12 QuickSpecs documentation available from HPE's support site.

Installation Notes

Chassis weight is 104.61 lb fully populated — two-person lift or mechanical assist required for rack installation. The 2U form factor requires standard EIA 19-inch rack rails (rail kit sold separately; verify Gen12 rail compatibility before ordering). Both power supplies must be connected to independent PDU circuits to realize N+1 redundancy. Drive bays ship empty; populate with HPE-qualified SFF drives and configure RAID via the MR408i-o controller before OS deployment. TPM 2.0 is pre-installed on the motherboard — no TPM module installation needed.
