HPE Proliant Compute DL380 GEN12 6530P 1P 2X32GB-R 8SFF NS204I-U V2 MR408I-O 2X1 - P90005-005

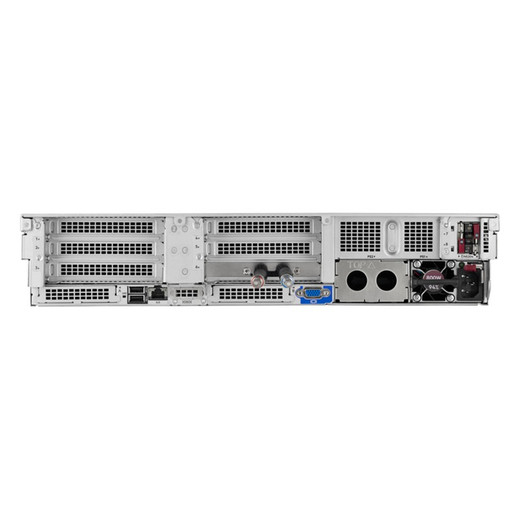

HPE P90005-005 ProLiant DL380 Gen12 2U Rack Server

Overview

The HPE P90005-005 is a factory-configured HPE ProLiant DL380 Gen12 2U rack server built around the Intel Xeon 6530P processor, 64GB of registered DDR5 memory (2×32GB), and an 8-drive SFF bay chassis. The configuration includes the NS204i-u v2 NVMe boot controller and MR408i-o storage controller, with dual 1GbE network connectivity. At 103.50 lb and 39.50 × 23.50 × 10.60 inches, this is a full-depth 2U platform sized for standard 19-inch enterprise racks.

The DL380 Gen12 platform targets enterprise workloads requiring a balance of compute density, storage expandability, and reliability — including surveillance recording infrastructure, VMS backend deployments, and data-intensive security operations environments where server-grade compute is paired with IP camera or access control ecosystems.

Key Features

• Intel Xeon 6530P Single-Socket Configuration: The 6530P is a current-generation Xeon Scalable processor designed for workload-optimized 2U deployments. Single-socket (1P) keeps licensing costs lower for per-socket software like some VMS platforms — a real factor in total cost of ownership calculations for large camera counts.
• 2×32GB DDR5 Registered Memory (64GB): DDR5 delivers higher bandwidth than DDR4, relevant when multiple storage and network I/O streams are running concurrently. 64GB baseline gives headroom for a VMS database, video analytics engine, and OS without memory pressure — expandable as workload grows.
• 8-Bay SFF Drive Chassis: Eight small-form-factor drive bays support high-density SAS or NVMe storage in a 2U footprint. For continuous surveillance recording across dozens of channels, the ability to populate all 8 bays with high-capacity drives directly impacts retention depth without adding rack units.
• NS204i-u v2 NVMe Boot Controller: Dedicated NVMe boot storage keeps the OS drive separate from data drives, so a failed data drive doesn't touch the boot volume. Simplifies OS recovery and reduces single points of failure in always-on recording environments.
• MR408i-o Storage Controller: The MR408i-o is an HPE OEM RAID controller that supports hardware RAID configurations, offloading parity calculations from the main CPU. Relevant for surveillance deployments where write-intensive, continuous recording benefits from RAID write-back cache.
• Dual 1GbE Embedded Networking: Two onboard 1GbE ports handle standard LAN connectivity for VMS traffic and management separation. Most surveillance recording workloads fit within 1GbE per port at typical camera densities; expansion slots support 10GbE or 25GbE NICs if bandwidth demands increase.
• 2U Rack Form Factor (39.50 × 23.50 × 10.60 in): The full-depth chassis fits standard 600mm and 1000mm rack enclosures. At 103.50 lb, plan for two people or a server lift during installation — this is not a lightweight short-depth chassis.

Integration & Compatibility

The DL380 Gen12 generation is supported by HPE's iLO management firmware, enabling out-of-band management, remote console, and hardware health monitoring without requiring the server to be running an OS — useful during initial VMS software deployment or troubleshooting. The P90005-005 configuration with dual 1GbE and 8 SFF bays is a common baseline for mid-to-large VMS deployments; NIC and storage expansion depend on available PCIe slots, which are not specified in available evidence and should be confirmed against the HPE QuickSpecs document for this CTO configuration.

For organizations building out surveillance infrastructure, this server pairs with network video recorders and VMS software platforms and is part of the broader HPE server and infrastructure catalog. Buyers evaluating storage capacity for video retention should review a video storage planning guide before finalizing drive configuration. For network connectivity between cameras and the recording server, a managed PoE switch is typically required upstream.

Frequently Asked Questions

Q: What processor does the HPE P90005-005 include?

A: The P90005-005 configuration includes a single Intel Xeon 6530P processor, as indicated by the product name string. This is a current-generation Xeon Scalable processor in a 1P (single-socket) configuration.

Q: How much memory does the P90005-005 come with?

A: The factory configuration includes 2×32GB registered DDR5 memory, totaling 64GB. Additional DIMMs can be added depending on available slots and HPE's memory population rules for this platform.

Q: How many drive bays does this server have?

A: The P90005-005 is configured with an 8-bay SFF (small form factor) drive cage. SFF bays support 2.5-inch SAS, SATA, or NVMe drives depending on backplane type.

Q: What are the physical dimensions and weight?

A: The server measures 39.50 × 23.50 × 10.60 inches (L × W × H) and weighs 103.50 lb. Plan for a two-person lift or server rail kit during rack installation.

Q: What RAID controller is included?

A: The P90005-005 includes the HPE MR408i-o storage controller, which supports hardware RAID and is separate from the NS204i-u v2 NVMe boot controller used for the OS volume.
