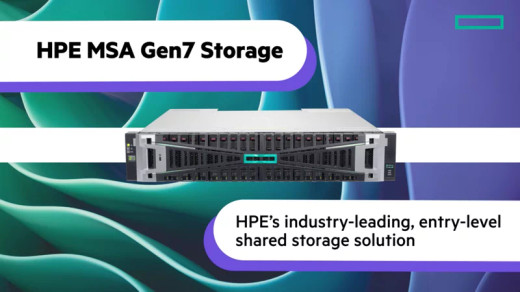

HPE MSA 2070 LFF 2X10/25GBE Iscsi 4-PORT Controller Storage Array - P89069-B25

HPE P89069-B25 MSA 2070 LFF iSCSI Controller Storage Array

Overview

The HPE P89069-B25 is a mid-range SAN storage array built for enterprises running iSCSI-based video surveillance, backup, or general block-storage workloads. This model pairs a 12-bay large-form-factor (LFF) drive chassis with dual 10/25 GbE iSCSI controllers (4 ports total), dual redundant 580W power supplies, and support for up to 7.37 petabytes of raw capacity. It's designed to eliminate single points of failure in your storage stack while keeping capex reasonable for teams that don't need Fibre Channel or the largest form factors.

Key Features

• Dual 10/25 GbE iSCSI Controllers: Four iSCSI ports (two per controller) let you stripe traffic across dual network paths without saturating any single link. At 10 GbE you'll move roughly 1.25 GB/s per port; at 25 GbE that doubles to 3.125 GB/s per port—critical when feeding multiple high-bitrate video streams or concurrent backup operations to a single array.
• 12 LFF Drive Bays: Large-form-factor (3.5-inch) drives maximize raw capacity per slot. If you're running 20 TB drives, you get 240 TB per array; 24 TB drives get you closer to 288 TB before any RAID overhead. More spindles per array means better bang-for-buck than small-form-factor arrays in capacity-heavy deployments.
• Up to 7.37 PB Raw Capacity: The theoretical maximum means you can scale this array to store months or years of multi-camera surveillance footage without forklift upgrades—or handle enormous backup vaults for enterprise data centers. Raw capacity is before RAID 6, RAID 10, or thin provisioning; actual usable space depends on your protection scheme.
• Redundant Power (2x 580W): Neither power supply is a single point of failure. If one fails, the array keeps running on the second. For 24/7 surveillance or backup operations, this is non-negotiable; unplanned downtime costs you footage and SLA violations.
• Multiple Host Connectivity Options: Beyond the 10/25 GbE iSCSI ports on the P89069-B25, the MSA 2070 LFF chassis also supports optional 16/32 Gb Fibre Channel or 12 Gb SAS controllers if you need to swap out the iSCSI module later. This modularity lets you match the array to evolving network requirements without replacing the entire enclosure.
• Commercial-Grade Redundancy: Dual controllers, dual power, dual-ported drive connectivity—every major component has a backup. This design is standard for enterprise SAN arrays; it keeps unplanned downtime off your incident log.

Integration and Compatibility

The P89069-B25 presents iSCSI LUNs to any host (server, NVR, backup appliance) that speaks SCSI over Ethernet—Windows, Linux, VMware, Hyper-V, and most commercial video management systems all support iSCSI natively or via a simple initiator. Dual controllers mean you can configure active-active iSCSI sessions across both network paths for load-balancing and failover. The 4-port iSCSI interface gives you flexibility to segregate video traffic, backup traffic, and general storage I/O on separate subnets or VLANs if needed.

The array does not include a built-in management GUI in this base configuration; it is typically managed via HPE Systems Insight Manager (SIM) or a similar monitoring stack. Ensure your IT operations team has iSCSI network design and LUN masking experience before deployment.

What's in the Box

Package contents for the P89069-B25 base unit: the MSA 2070 LFF chassis with 12 empty drive bays, two 10/25 GbE iSCSI controllers (pre-installed in dual controller slots), two 580W power supplies (pre-installed and cabled), power cords for both supplies, documentation pouch with quick-start guide, and mounting brackets for standard 19-inch rack installation. Drives are sold separately.

Frequently Asked Questions

Q: Does the P89069-B25 support RAID 6 or RAID 10?

A: Yes. The MSA 2070 LFF supports standard RAID levels (RAID 0, 1, 5, 6, 10) and thin provisioning. RAID 6 is recommended for capacity-heavy surveillance arrays (12+ drive bays) because it tolerates two concurrent drive failures—common in large arrays. RAID 10 offers faster write performance but uses more raw capacity for protection.

Q: What's the maximum number of concurrent iSCSI sessions I can run?

A: The array supports multiple initiators per controller and multiple LUNs. Typical deployments run 8–16 LUNs across 2–4 servers or appliances. Consult HPE sizing guidance for your specific workload (video bitrate, number of cameras, retention period) to avoid bottlenecking the iSCSI ports.

Q: Can I upgrade from 10 GbE to 25 GbE iSCSI without replacing the array?

A: The P89069-B25 ships with dual 10/25 GbE controllers, meaning each port auto-negotiates to the highest speed both the switch and host support. If your network switches upgrade to 25 GbE, the array controllers will negotiate up to 25 GbE automatically—no hardware replacement needed.

Q: What happens if one power supply fails?

A: The array continues operating on the remaining 580W supply. However, one supply is the minimum for runtime; do not leave the array in a single-supply state long-term. Replace the failed supply as soon as possible to restore redundancy.

Q: Is the P89069-B25 suitable for video surveillance backup (not live recording)?

A: Yes. Many enterprises use arrays like this to back up footage from distributed NVRs to a centralized iSCSI target—essentially a SAN-based tape replacement. The dual controllers and large capacity make it well-suited for nightly or continuous backup ingestion from multiple recording sites.

Q: What drive types does the MSA 2070 LFF accept?

A: Any standard 3.5-inch SATA or SAS drive. HPE sells qualified SAS drives (7.2k and 10k rpm options) and SATA drives. For surveillance-grade reliability, select drives specifically rated for 24/7 operation; avoid desktop-class drives in multi-drive arrays.

Karl Wilson

The HPE P89069-B25 is a workhorse for any IT team building a centralized video archive or backup vault. The dual 10/25 GbE iSCSI controllers and up to 7.37 PB raw capacity in just 12 LFF bays make it a solid choice for surveillance integrations where you need to consolidate footage from dozens of remote NVRs into one bulletproof repository. I've deployed these arrays in retail chains, logistics facilities, and financial institutions where a storage failure means lost forensic evidence and compliance violations.

Technical Highlights:

• 4-port iSCSI Controller (dual 10/25 GbE): Each port runs up to 3.125 GB/s at 25 GbE, letting you pump video streams from 10+ cameras per port without choking the array. Dual controllers mean you're never throttled by a single iSCSI module failure—one goes down, the other keeps your footage flowing.
• 12 LFF Drive Bays + 7.37 PB Capacity Ceiling: A single array fully populated with 24 TB SAS drives gives you roughly 288 TB of raw space. At typical surveillance compression (H.265, 5–8 Mbps per camera stream), that's 8–12 months of continuous 100-camera recording per array. Scale to 4–5 arrays and you're looking at years of footage without touching tape.
• Dual 580W Redundant Power: Lose one supply, the array stays online. Lose both, you're down. The redundancy design means a power event rarely becomes an outage—just a maintenance event.

Deployment Considerations:

• The P89069-B25 requires iSCSI network design upfront: separate VLAN for storage traffic, redundant 10 GbE (or better) switch ports per controller, and proper multipath I/O (MPIO) configuration on the iSCSI initiator side. If your network team hasn't done iSCSI before, plan for a pre-sales engineering review of your switch topology.
• Drive failure mode is the gotcha: in a 12-bay array running RAID 6, you can tolerate two drive failures, but you're in degraded mode. If you're not actively monitoring S.M.A.R.T. health and replacing suspect drives proactively, you risk losing the entire array if a third drive fails during rebuild. Budget for a third-party storage monitoring tool (Nagios, Zabbix, or HPE Systems Insight Manager) to alert on drive health.

Position this array as the hub for large-scale video consolidation in multi-site enterprises—branch NVRs record locally, then push footage via iSCSI to the P89069-B25 for centralized retention and compliance archival. It's overkill for a single 50-camera site, but essential for any organization managing video across 10+ locations.
