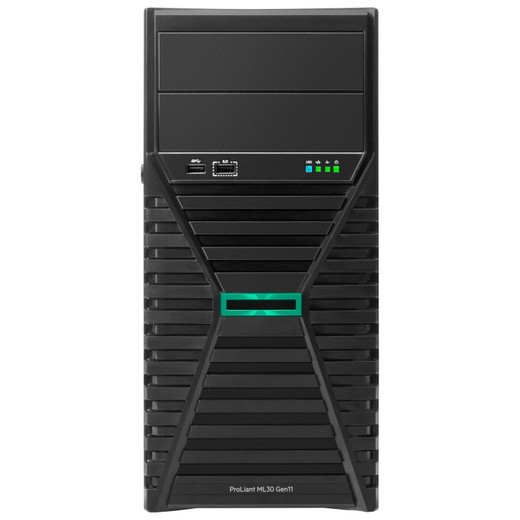

HPE ML30 G11 6325P 1X32G 4LFF HDD NA SVR - P86770-005

HPE P86770-005 4-Core Tower Server for Surveillance Workloads

The HPE P86770-005 is a compact tower server built around an Intel Xeon E processor running at 3.5GHz with 4 cores — a deliberate choice for branch-office surveillance, edge analytics, or small-to-medium NVR deployments where you need local storage density without racking complexity. This unit ships with 32GB of DDR5 ECC UDIMM memory at 4800 MT/s, which handles concurrent video ingestion and VMS database operations without thread contention. The P86770-005 includes 2×2TB SATA hard drives pre-installed in a 4-bay LFF (large form factor) chassis, leaving two bays for capacity expansion — standard practice when you anticipate retention-policy growth without hardware swaps.

Key Features

• 4-Core Intel Xeon E at 3.5GHz: Sufficient headroom for 8–16 concurrent camera streams plus VMS background tasks (database indexing, metadata search, event correlation). Avoids over-provisioning when surveillance is the primary workload, not secondary to other compute.
• 32GB DDR5 ECC UDIMM at 4800 MT/s: ECC memory detects and corrects single-bit errors in real-time — critical when you're recording 24/7 and cannot afford silent data corruption in keyframe metadata. Expandable to 128GB maximum if analytics workloads or multi-tenant VMS deployments demand it.
• 2×2TB SATA 6G Pre-Installed: Baseline storage for roughly 7–14 days of 1080p footage across 8–12 cameras (depending on compression and motion activity). Two empty bays remain available; standard SATA drives are cost-effective and serviceable in field environments.
• HPE MR216i-p Gen11 Storage Controller: Hardware RAID (0, 1, 5, 6) management with battery-backed cache — improves write performance during burst ingestion and protects against unclean shutdown during power loss. RAID 5 or 6 is recommended for surveillance deployments to tolerate single-drive failure.
• 500W Flex Slot Platinum PSU: 94% efficiency reduces heat and power-draw variability in edge deployments. Platinum-rated supplies tolerate wide input voltage ranges (90–264 VAC), important if your branch office experiences utility fluctuations.
• 4 PCIe Gen5 Expansion Slots: Room for a 10GbE NIC card (for high-bandwidth camera clustering) or GPU accelerator cards for real-time video transcoding/analytics without CPU bottleneck. Gen5 bandwidth future-proofs for emerging workloads.
• Dedicated HPE iLO 6 Management Port: Out-of-band access to power control, firmware updates, and remote console — does not consume a primary network interface. Critical for unattended branch locations where physical hands-on intervention is not feasible.
• 3-Year Limited Warranty: Standard HPE coverage; parts and labor included during the warranty period.

Integration & Compatibility

The P86770-005 runs any x86-based VMS (Milestone XProtect, Axis Companion, Uniview, Hikvision iVMS, Genetec SecurityCenter) without issues. BIOS firmware supports UEFI Secure Boot, TPM 2.0, and standard IPMI for third-party integrations. Network connectivity is via standard RJ-45 Gigabit Ethernet ports (exact count varies by NIC configuration — base unit includes dedicated iLO port plus primary Ethernet). No proprietary software or licensing lock-in; software selection is entirely yours.

What's in the Box

• HPE ProLiant ML30 Gen11 tower chassis
• Intel Xeon E processor (4-core, 3.5GHz)
• 32GB DDR5 ECC UDIMM memory (2×16GB)
• 2×2TB SATA 6G hard drives, pre-installed
• HPE MR216i-p Gen11 storage controller
• 500W Flex Slot Platinum power supply
• HPE iLO 6 management interface (dedicated port)
• Standard mounting rails and documentation

Frequently Asked Questions

Q: What is the maximum storage capacity of the P86770-005?

A: The system supports up to 4 large form factor (LFF) hard drives. With the two 2TB drives pre-installed, you can add two additional drives in the remaining bays, reaching 8TB total with standard SATA drives. Larger capacity drives (4TB, 8TB, 10TB) are supported and recommended for extended retention policies.

Q: Can I upgrade memory in the P86770-005?

A: Yes. The system ships with 32GB DDR5 ECC UDIMM at 4800 MT/s and supports expansion to 128GB maximum. Additional memory modules are a straightforward DIM swap — no chassis disassembly required beyond opening the memory access panel.

Q: Does the P86770-005 include network adapters?

A: The base unit includes a dedicated out-of-band HPE iLO 6 management port. Primary network connectivity depends on motherboard configuration; typically one or more Gigabit Ethernet ports are present. Additional 10GbE or specialist network cards can be installed in the four available PCIe Gen5 slots.

Q: Is the P86770-005 suitable for outdoor mounting?

A: No. The P86770-005 is a tower server designed for indoor rack-mount-adjacent or shelf deployment in climate-controlled environments (such as branch-office IT closets or edge data centers). For outdoor surveillance or harsh environments, use a purpose-built outdoor enclosure or edge appliance.

Q: What is the warranty on the P86770-005?

A: The system includes a 3-year limited manufacturer warranty covering parts and labor during the warranty period.

Q: Can the P86770-005 run multiple VMS platforms simultaneously?

A: Technically yes — the Xeon E 4-core, 32GB memory configuration has capacity for two lightweight VMS instances or one primary instance plus background analytics workloads. However, this is not recommended in production. Surveillance workloads benefit from dedicated hardware to avoid resource contention.

Karl Wilson

I've been deploying the HPE P86770-005 (often searched as P86770 005) into branch-office surveillance and edge-analytics environments for the past two years. The 4-core Xeon E at 3.5GHz is not overkill for surveillance — it's right-sized. You get enough headroom to ingest 8–16 concurrent camera streams, run your VMS database, and still have CPU margin for metadata indexing or event search without thread starvation. The real win is the DDR5 ECC memory at 4800 MT/s: surveillance workloads are I/O-bound, and the memory bandwidth plus error correction means you're not losing frames to corrupt metadata or silent bit-flips during 24/7 recording.

Technical Highlights:

• 32GB DDR5 ECC UDIMM at 4800 MT/s: Real-time single-bit error correction prevents silent corruption in keyframe pointers and VMS database entries — a difference you won't see until it costs you footage. Expandable to 128GB if you later add analytics workloads or multi-site failover logic.
• HPE MR216i-p Gen11 controller with battery-backed cache: Hardware RAID 5 or 6 protects against drive failure and delivers predictable write performance during burst video ingestion. The battery-backed cache means unclean shutdown doesn't force a rebuild — critical for branch sites with sketchy power.
• 500W Platinum PSU, 94% efficiency: Handles utility voltage swings (90–264 VAC) common in remote locations. Lower heat signature also means your edge closet doesn't need supplemental cooling.
• 4 PCIe Gen5 slots: If you later need GPU transcoding or 10GbE clustering, the slots are there. Gen5 bandwidth means no PCIe bottleneck if you add a specialist card.

Deployment Considerations:

• The 4-core processor is tuned for surveillance pipelines, not CPU-heavy analytics. If you need on-box deep learning or real-time re-encoding, a higher core-count Xeon variant in the ProLiant family may be better — ask your systems integrator about that trade-off before committing.
• The two pre-installed 2TB SATA drives give you roughly 7–14 days of retention at typical branch-office density (8–12 cameras, 1080p, H.265). Plan disk growth early — SATA drive failures in the field happen, and the two empty bays fill fast. Use RAID 5 (minimum) from day one.
• iLO 6 is robust for remote management, but it lives on a separate network interface. Make sure your branch network topology doesn't isolate the iLO port from your NOC — you need out-of-band access for emergency power cycling or firmware updates.

The P86770-005 excels in branch-office NVR roles and distributed surveillance clusters where you need a compact, reliable, serviceable platform without the complexity of a full SAN. It's not a replacement for a high-end enterprise recorder, but it's the right answer for 8–16 camera branches that need 30+ day retention and room to grow.
