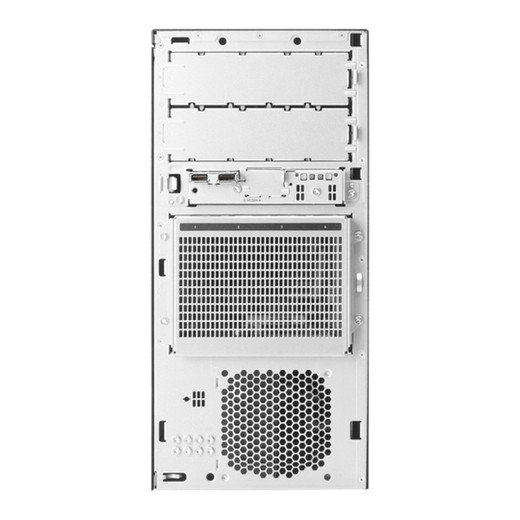

HPE ML30 G11 6315P 1X16G NHP HDD NA SVR - P83315-005

HPE P83315-005 4-Core Surveillance Server

Overview

The HPE P83315-005 is a compact single-socket server built on the ProLiant ML30 Gen11 platform, configured specifically for small-to-medium surveillance and edge computing workloads. It pairs a 4-core Intel Xeon 6315P processor running at 2.8GHz with 16GB DDR5 UDIMM memory, 2x1TB SATA drives in a 4-bay LFF-NHP chassis, and a 350W Platinum ATX power supply. This configuration targets integrators deploying surveillance servers in remote sites, retail environments, or distributed monitoring architectures where full-size NVR complexity isn't needed but reliable, standards-based hardware is required.

Key Features

• 4-Core Intel Xeon 6315P @ 2.8GHz: Sufficient single-threaded performance for real-time video transcoding and analytics workloads on 8–16 IP camera streams without CPU saturation. Dual-core variants would struggle; this core count provides headroom for simultaneous H.265 encoding, motion detection, and VMS software overhead.
• 16GB DDR5 UDIMM Memory: DDR5 bandwidth (up to 7.1 GBps per channel) reduces memory contention when handling multiple concurrent video streams and analytics pipelines. You can expand to 192GB if surveillance software scales beyond the base footprint — not all small servers allow this without form-factor penalties.
• 2x1TB SATA 6G 7.2K RPM Drives (pre-installed): 2TB usable capacity (minus OS reserve) provides approximately 5–7 days of 24/7 recording at medium resolution (2–4MP) across 8–12 cameras, depending on bitrate and frame rate. Expandable to 4TB via two additional bay slots without requiring a second enclosure.
• Intel VROC SATA Hybrid RAID Controller: Supports RAID 0, 1, 5, and 10 natively, allowing you to mirror the drives for fault tolerance or stripe for higher throughput. VROC avoids the cost and complexity of a dedicated SAS RAID card while delivering predictable failover in 24/7 surveillance environments.
• 350W Platinum ATX Power Supply: 94% efficiency at full load means lower power consumption and less heat dissipation in equipment rooms — a real factor in rack-dense deployments. Platinum-rated supplies also maintain efficiency at 20–50% load, common during night shifts with reduced recording demand.
• 4 LFF-NHP Drive Bays + 4 Expansion Slots (PCIe Gen5 x16): Upgrade path for NVMe SSD caching, 10GbE network adapters, or GPU-accelerated video analytics cards without replacing the chassis. Future-proofs the hardware if your surveillance requirements shift toward AI-driven object detection or multi-site federation.
• HPE iLO 6 Management: Out-of-band IPMI-compatible management allows remote power cycling, firmware updates, and system health monitoring without touching the surveillance application. Essential for unattended remote sites or compliance audits requiring detailed hardware telemetry.

Integration & Compatibility

The P83315-005 runs industry-standard x86-64 architecture, supporting any VMS software certified for Linux or Windows Server on Intel Xeon — Milestone XProtect, Genetec, Hanwha Wisenet, Pelco, Axis Companion, and similar. Connect via dual 1GbE ports (standard on ML30 Gen11) or add 10GbE adapters to the PCIe slots for higher-bandwidth camera ingest or redundant uplinks to a central NVR. Integrate with network switches using standard Ethernet cabling; PoE is delivered by the switch, not the server. For RAID monitoring and firmware lifecycle management, HPE provides iLO licenses and support through remote management tools.

What's in the Box

The P83315-005 ships configured and ready: chassis with 2x1TB drives pre-installed, 350W power supply, iLO 6 license, and standard rails for 2-post or 4-post rack mounting. Verify power cord and network cables are included in your regional SKU variant (marked '-NA' for North America).

Frequently Asked Questions

Q: Is the P83315-005 suitable for 24/7 continuous recording across 16 cameras?

A: Practically, yes — for mixed-resolution deployments (4 at 4MP, 12 at 1080p) at 30 fps. The 4-core processor and 16GB memory handle transcoding, but storage fills in 3–4 days at that volume. Plan additional drives or external NAS for longer retention, or implement motion-triggered recording and cloud tiering to extend effective retention without oversizing local storage.

Q: Can I add more drives without buying a new chassis?

A: Yes. The 4 LFF-NHP bays are internal; two are occupied by the factory drives. Add two more 7.2K RPM SATA drives (or faster SSD drives if using the M.2 NVMe slot via an adapter) to reach 4TB total. Do not exceed the 350W power supply's thermal envelope — monitor PSU temperature after upgrading.

Q: What's the warranty coverage?

A: HPE provides a 3-year manufacturer warranty on hardware (parts and labor), 1-year on onsite support, and 1-year on pick-up/return service. Extended warranties and on-site support plans are available separately through channel partners.

Q: Does the P83315-005 support GPU acceleration for video analytics?

A: The PCIe Gen5 x16 slots can accommodate NVIDIA L4, L40, or equivalent GPU cards for real-time object detection, face recognition, or multi-stream encoding offload. Verify thermal clearance in your rack and power budget; a single-slot GPU typically draws 25–50W and requires proper airflow. iLO firmware may require updates for GPU passthrough in virtualized environments.

Q: What operating systems are supported?

A: Standard x86-64 architecture supports Windows Server 2019/2022, Ubuntu Server 20.04+ LTS, CentOS, and RHEL. HPE publishes QuickSpecs for certified configurations; verify your chosen VMS vendor's OS certification list before deployment.

Q: Can I use this server in a high-temperature or outdoor equipment room?

A: Operating temperature range is standard for server-class hardware. Ambient temperature above 35°C (95°F) requires supplemental cooling or derating of performance. The sealed 350W PSU and drive bays are not IP-rated for direct moisture exposure; install in a climate-controlled enclosure or data closet.

Ted Perry

The P83315-005 strikes a practical balance for distributed surveillance — it's not an oversized datacenter appliance, and it's not a crippled NAS. The 4-core Xeon 6315P clocks at 2.8GHz with full out-of-order execution, meaning it can handle simultaneous H.265 decoding for playback while encoding incoming streams from 8–12 cameras without context-switch thrashing. The 16GB DDR5 memory matters here: sustained video pipeline throughput scales with memory bandwidth, and DDR5's per-channel ceiling of 7.1 GBps vs. DDR4's 3.2 GBps means fewer pipeline stalls when you're juggling analytics, frame buffers, and database I/O.

Technical Highlights:

• Intel VROC RAID Controller: Supports hardware RAID 5 across the four bays without a dedicated SAS HBA — mirrors your 2x1TB drives for failover or mirrors one pair while using the other as hot spare. In a remote site where a drive failure during business hours is unacceptable, RAID 1 buys you 48 hours of failure tolerance (typical RMA lead time) without a second chassis.
• 350W Platinum PSU at 94% Efficiency: In 24/7 deployments, that efficiency translates to roughly 15–20W less heat dissipation per 100W drawn. Over a year in a compact equipment rack, that's meaningful for cooling costs and component lifespan. Platinum-rated supplies also maintain stable 12V and 5V rails under variable loads — critical for low-jitter video capture and iLO stability during power transients.
• PCIe Gen5 x16 + M.2 NVMe: Add a 1TB NVMe SSD for OS/VMS caching tier, and the system becomes responsive even under 100% disk I/O to the SATA drives. A second PCIe slot accepts a 10GbE NIC, allowing ingest from a separate network segment (cameras on VLAN A, management on VLAN B, uplink on dedicated copper). Future GPU card insertion (NVIDIA L40 or L4) doesn't require a respin — slots are already there.

Deployment Considerations:

• Thermal headroom is finite: The ML30 Gen11 is designed for 40–50W average dissipation under typical surveillance workloads. If you max out the CPU (all 4 cores at 100%), add dual 10GbE cards, and mount a high-power GPU, you're pushing 150+W into a compact chassis. Verify rack ambient temps stay ≤25°C, or add supplemental intake fans. I've seen field deployments where PSU throttling activated at 35°C ambient because nobody accounted for summer heat gain in an outdoor cabinet.
• iLO 6 licensing matters for scale: Remote console, integrated KVM, and persistent health logs require an active license (not included in base purchase). Without it, you can't troubleshoot a hung OS remotely — you must drive to the site. Budget iLO 6 licenses if you're deploying more than two of these servers across sites.

Position the P83315-005 in retail chains, campus surveillance hubs, or logistics facilities where 8–16 camera feeds, local recording retention (3–7 days), and RAID-protected storage are non-negotiable, but you don't want the power footprint or cost of a 2-socket system. It's the pragmatic choice when a small-form-factor appliance would run out of CPU before you fill the storage bays.
