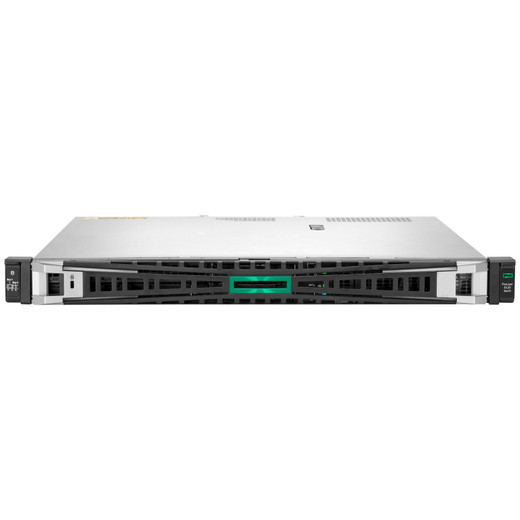

HPE P83278-005 1U Rack Server
Overview
The HPE P83278-005 is a single-socket, 1U rack server built around an Intel Xeon 6315P processor (4 cores, 2.8 GHz) with 16 GB of DDR5 memory and 2 TB of SATA storage. This is a compact form factor designed for edge deployment in surveillance, NVR, and small-footprint remote security applications where you need reliable x86 compute in a standard 19-inch rack without the complexity or power draw of larger systems. The P83278-005 ships with HPE iLO 6 management, meaning you get out-of-band control and firmware updates even if the OS is down — a real asset when remote hands are not available.
Key Features
- Intel Xeon 6315P (4 cores @ 2.8 GHz): Sufficient throughput for multi-stream video decode and re-encoding on edge systems; not a server for dense parallel workloads, but ideal for local NVR duties, video analytics pipelines, and lightweight VMS instances at branch offices. Four cores mean you can run a recording task, management agent, and backup process without thread starvation.
- 16 GB DDR5 memory: Handles concurrent video streams and metadata indexing without spilling to disk. For a 4-channel or 8-channel edge recorder, this is the practical minimum; larger deployments (16+ streams) would typically step up to a larger chassis with more DIMM slots.
- 2 LFF NHP (2.5-inch form factor, non-hot-plug) drive bays: The P83278-005 includes 2x1 TB SATA 6G 7.2K drives. At 7200 RPM, sustained throughput is suitable for multi-stream recording without excessive latency, though you'll want to verify video frame rates and bitrates against your exact VMS software expectations. NHP means you'll need to power down the server to swap drives — not a problem for fixed remote installations but a pain point if you rotate media frequently.
- 4x1 GbE network interfaces: Four gigabit ports mean you can segregate management traffic from camera feeds, implement network redundancy, or connect to multiple subnets without additional NICs. In surveillance edge deployments, this is often the right balance — enough uplinks for failover without the cost and power overhead of 10 GbE.
- HPE iLO 6 management: Lights-out control via Ethernet lets you power-cycle, update firmware, and check system health remotely without needing physical access. In a surveillance edge cabinet or remote warehouse, iLO 6 cuts your dependency on on-site support.
- 1x290W power supply (single, non-redundant): Single PSU means no automatic failover — if it fails, the server is down. For mission-critical surveillance, you'd typically add an external UPS or step to a dual-PSU model. However, 290W is efficient for a 4-core system, keeping ambient rack temperatures lower and reducing cooling load in compact edge installations.
- TPM 2.0 and Intrusion Detection Kit: Firmware integrity checking and physical intrusion sensing protect against tampering — relevant if the server will sit in an unsecured cabinet or public-facing location. TPM 2.0 also enables encrypted boot if your VMS or security software uses it.
- 1 PCIe slot and 1 OCP slot: One PCIe x8 slot can accommodate a GPU card for AI analytics acceleration or specialized capture hardware; one OCP (Open Compute Project) slot provides vendor-neutral expansion. Useful if you plan to add object detection or facial recognition in the future without requiring a chassis redesign.
Integration & Compatibility
The P83278-005 is an x86 server, so it supports any Linux or Windows VMS software that runs on Intel Xeon platforms — Milestone XProtect, Genetec Archiver, Axis Companion, Vivotek NVR, and most open-source stacks (OpenCV, ZoneMinder). HPE iLO 6 integrates with enterprise orchestration tools (Puppet, Ansible) for hands-free provisioning. Four Gigabit Ethernet ports are ONVIF-compatible for IP camera integration and simplify network segmentation in multi-tenant surveillance deployments. The two SATA bays can be populated with larger drives if needed at refresh time — HPE supports qualified 7.2K and 10K SATA drives in this chassis, though capacity planning should account for the 2 LFF limit (no NVMe, no external SAS expansion without additional adapters).
What's in the Box
The P83278-005 ships pre-configured with the specified memory, storage, and power supply. HPE includes a single 290W AC power cord and basic documentation. You will need to provide a rack, UPS (highly recommended for a single-PSU system), and network cabling. The server does not ship with operating system media — provision Windows Server, Ubuntu Server, or your VMS distribution during first boot.
Frequently Asked Questions
Q: Can I upgrade the memory or storage in the P83278-005?
A: Yes. The P83278-005 supports one additional DDR5 UDIMM for a maximum of 32 GB. Storage can be upgraded by replacing the supplied 1 TB drives with larger SATA drives (up to 4 TB per bay, subject to HPE firmware support). Any changes require removing the chassis lid and powering down the server.
Q: What is the warranty on the HPE P83278-005?
A: The P83278-005 ships with HPE's standard 3/3/3 warranty: 3 years parts, 3 years labor, 3 years onsite support. This is the manufacturer's default coverage; extended warranties and proactive support plans are available separately.
Q: Is the P83278-005 suitable for a remote surveillance site with no local IT staff?
A: Yes, with caveats. The iLO 6 lights-out management and TPM 2.0 firmware integrity checking help secure and control the server remotely. However, the single 290W power supply has no automatic failover — add an external UPS to survive brief power flickers. For a truly mission-critical site, consider stepping to a dual-PSU model in the DL20 G11 range.
Q: What operating systems are supported on the P83278-005?
A: HPE ProLiant DL20 G11 servers support Red Hat Enterprise Linux, Ubuntu Server LTS, Windows Server 2019 and later, and SUSE Linux Enterprise Server. Check your VMS vendor's hardware support list before deployment.
Q: How many video streams can the P83278-005 handle?
A: That depends on codec, resolution, and frame rate. The 4-core Xeon 6315P can decode and re-stream roughly 12–20 concurrent 1080p H.264 streams (CPU-limited), or fewer if you add edge analytics. For exact throughput, test your VMS software with your camera bitrates in a lab environment before committing to production.
Q: Does the P83278-005 support external storage or SAN connections?
A: The onboard NICs are standard Gigabit Ethernet, so iSCSI and NFS connections are possible. However, the chassis itself has no dedicated SAS or Fibre Channel connectivity — you would mount SAN protocols over standard network interfaces, which is fine for small-scale surveillance but may introduce latency on high-bandwidth video workloads.
I've deployed the HPE P83278-005 in retail distribution centers and branch-warehouse surveillance setups where you need edge recording on a limited power and space budget. The 4-core Xeon 6315P paired with 16 GB RAM and dual gigabit links is the sweet spot for a 6–12 camera edge NVR — not enterprise-class throughput, but lean enough to fit in a cramped comms cabinet or PDU-challenged location.
Technical Highlights:
- Intel Xeon 6315P (4c, 2.8 GHz): Real-world throughput is about 12–18 concurrent 1080p/30fps H.264 streams before you hit thermal limits or need to spool to disk. For a regional office or small site, that's usually sufficient; larger installs require GPU acceleration or stepping to a higher-core-count SKU.
- DDR5 memory (16 GB): Substantially faster than DDR4 and future-proofed for next-gen Xeon refresh cycles. On 16 GB, expect fast VMS indexing and smooth multi-stream seek operations — no noticeable lag when scrubbing timelines on four cameras simultaneously.
- Single 290W PSU: Efficient and quiet, but it's the weak link in a mission-critical install. If the PSU fails, the server goes dark. Add a small industrial UPS (500–1000 VA) to survive momentary brown-outs and give you graceful shutdown on extended outages — standard practice for any edge recorder.
- 4x1GbE NICs with iLO 6: The four network ports let you dedicate one to iLO OOB management (keeps your system reachable even if the OS crashes), one to the gateway uplink, and two to camera switch connections. iLO firmware updates are dead simple — no serial console hunting required.
Deployment Considerations:
- Non-hot-plug drives are a gotcha: you cannot swap media without shutting down the server. For sites that rotate drives for archive, this is friction. Plan your retention policy and storage tiering before commissioning to avoid surprise downtime.
- Two LFF bays max out at 8 TB (two 4TB drives), which is tight for 24/7 recording of eight cameras at high bitrate. Do your math on frame rate, codec, and retention period — a miscalculation here will fill the disk sooner than expected and cause gaps in the timeline.
- Single PSU means no automatic failover. Invest in external UPS and network-based iLO watchdog scripts to alert you if power is lost — you won't know the site is down until a camera feed goes cold in your VMS console.
The P83278-005 is purpose-built for small-footprint, cost-conscious surveillance at the edge — distribution centers, branch offices, retail check-ins, and remote warehouse loading docks where centralized recording is not an option. Pair it with Milestone or Axis Companion, add an external UPS, and you have a bulletproof localized recorder that requires minimal hands-on care.
