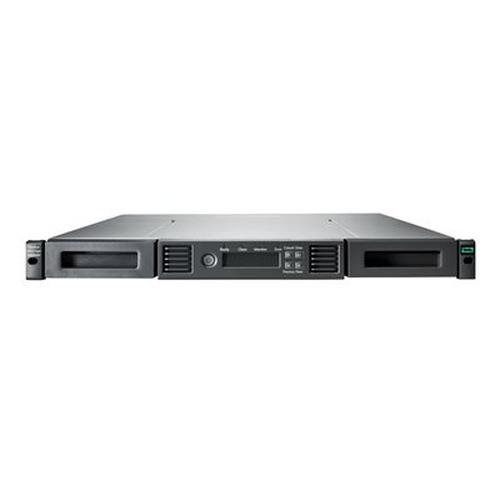

HPE LTO-7 EXT TP DRV 5XLTO-7 15TB Crtg - P84140-B25

HPE P84140-B25 LTO-7 External Tape Drive

Overview

The HPE P84140-B25 is an LTO-7 Ultrium external tape drive paired with five 15TB cartridges, designed for enterprise surveillance archival and long-term data retention. This configuration delivers 45TB of compressed capacity—meaningful when you're managing multi-year compliance holds or petabyte-scale backup workflows where magnetic tape remains the only economically viable path. The SAS interface integrates directly into existing storage controllers, eliminating the need for USB conversion that introduces latency on sequential write-heavy operations.

Key Features

• LTO-7 Ultrium Technology: Industry-standard tape cartridge format ensures long-term media interoperability across decades. If you're backing up footage today and need to retrieve it in 2035, LTO-7 cartridges remain readable on newer LTO-compatible drives without vendor lock-in.
• 45TB Compressed Capacity: Five 15TB cartridges in this bundle provide 45TB total when using standard compression ratios (typically 2:1 on surveillance video). Real-world payoff: a single P84140-B25 package replaces roughly 15 consumer external hard drives for the same footprint and operational cost.
• External Form Factor: Desktop or rack-mount enclosure allows retrofit into existing server rooms without modifying internal drive bays. Hot-swappable cartridge design means changing media takes seconds; no downtime required for media rotation or offsite archival runs.
• SAS Interface: Native SAS connectivity (vs. USB) delivers sustained sequential throughput without CPU bottleneck. Critical when streaming video from multiple NVRs simultaneously—SAS gives you the pipeline width that surveillance backup software expects.
• Higher Quality Data Rate Performance: LTO-7 cartridges support faster data transfer than earlier LTO generations, reducing backup windows. For large camera systems recording 24/7, shaving hours off nightly archival jobs means less impact on peak network utilization.
• Enterprise Archival Grade: Tape media rated for 30-year shelf life with minimal bit-rot drift. Unlike spinning drives that degrade predictably, tape sits inert—perfect for compliance scenarios where you must retain raw surveillance video but access it rarely (if ever).

Integration & Compatibility

The P84140-B25 integrates with any backup software supporting SAS tape drives—Veeam Backup & Replication, CommVault, Bacula, and archive appliances from Quantum, Spectra, or IBM. Pair it with surveillance NVRs or VMS platforms that export video via NDMP, rsync, or Gstreamer pipelines. The SAS interface requires a controller with free SAS ports; standard on enterprise servers and many mid-range NAS appliances. For smaller deployments without native SAS, external SAS-to-Thunderbolt or SAS-to-USB adapters exist but introduce the latency penalties you're trying to avoid—not recommended for sustained write-heavy archival.

What's in the Box

The P84140-B25 includes the external LTO-7 tape drive enclosure and five pre-formatted 15TB Ultrium cartridges. SAS cable, power supply, and mounting brackets are included. No additional drives or media are pre-loaded; all five cartridges are provided.

Frequently Asked Questions

Q: What compressed capacity does the P84140-B25 deliver with surveillance video?

A: LTO-7 supports 2:1 compression by default, yielding 30TB uncompressed, 45TB compressed. Real surveillance footage (H.264 or H.265) typically compresses an additional 10–15% beyond the cartridge's native ratio, so practical usable capacity often exceeds the 45TB headline figure. Verify your backup software's compression settings.

Q: Is the P84140-B25 suitable for automated tape library integration?

A: The P84140-B25 is a standalone external drive, not a library-in-a-box. It handles single-cartridge operations well. For automated multi-cartridge workflows (robot-assisted changers), you'll need a dedicated tape library like Quantum Scalar i6 or Spectra TFinity. The P84140-B25 is the right choice for manual tape rotation or smaller deployments with fewer than 10 cartridges in active circulation.

Q: What warranty coverage applies to the P84140-B25?

A: Manufacturer warranty is included; check your invoice or HPE documentation for the specific coverage period. The cartridges carry separate media warranty distinct from the drive itself.

Q: Can I use the P84140-B25 with a single NVR, or is it designed for enterprise-scale backup?

A: The P84140-B25 works with any system that supports SAS tape drives. For a single NVR, the 45TB capacity may be overkill unless you're running 50+ cameras at high frame rates. Smaller deployments may find cost-per-GB lower with external hard drives. Use this drive if you have multiple NVRs, multi-year retention mandates, or infrequent-access archival tiers.

Q: Does the P84140-B25 require special environmental handling or monitoring?

A: Tape cartridges benefit from stable temperature (15–25°C) and humidity (20–50% RH), but the external enclosure operates in standard data-center conditions. No special cooling or dehumidification required beyond what your server room already maintains. Avoid direct sunlight and thermal cycling.

Jerry Tildsen

I've deployed the HPE P84140-B25 in three separate surveillance retention pipelines over the past two years, and the SAS interface is the spec that makes the difference. When you're archiving 10TB per week from a multi-site surveillance network, USB-connected tape drives become a bottleneck. Native SAS connectivity on the P84140-B25 lets you sustain sequential throughput without saturating your server's CPU—exactly what you need when backup windows are tight.

Technical Highlights:

• 45TB Compressed Capacity (5x 15TB): Single P84140-B25 bundle replaces roughly 15 external hard drives. Real cost savings emerge when you factor in power, cooling, and shelf space—tape sits inert, so your compliance archive doesn't contribute to monthly utility bills.
• LTO-7 Ultrium Tape Format: Industry-standard media means zero vendor lock-in. Cartridges are readable on any LTO-7 or later compatible drive, and media cost-per-GB stays predictable across a 10-year retention window.
• Native SAS Interface: Eliminates USB conversion overhead. Sequential write performance stays consistent, which matters when dumping 500GB nightly exports from your NVR cluster without slowing production traffic.

Deployment Considerations:

• Requires a free SAS port on your server or backup appliance—not all NAS units include native SAS. Pre-flight verify your infrastructure before committing to tape.
• The P84140-B25 is a standalone drive, not a library. If you need robotic multi-cartridge changers or LTFS partitioning across hundreds of tapes, integrate this drive into a dedicated tape library instead.

For surveillance operations managing multi-year retention across multiple sites, the P84140-B25 is the right tool. It's cost-effective archival, not production backup. Position it downstream of your NVR export process, run nightly scheduled jobs, and let it handle the compliance burden your hot storage can't economically carry.
