HPE STG MSL3040 LTO9 SAS DRV 20LTO9 Crtg - P77037-B25

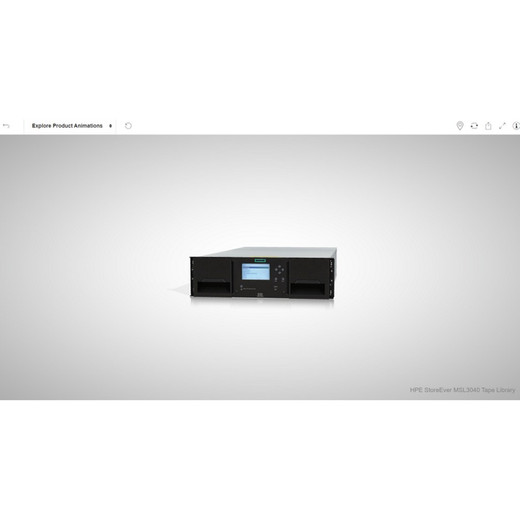

HPE P77037-B25 LTO-9 SAS Tape Library

Overview

The HPE P77037-B25 is an MSL3040 tape library configured for large-scale archival backup and long-term retention — the backbone of surveillance systems that must keep years of recorded footage legally compliant and instantly retrievable. This model pairs one LTO-9 SAS drive with 20 cartridges (900 TB initial capacity) and scales to 640 total cartridge slots for 28.8 PB of compressed data storage. If you're running security operations centers managing dozens of cameras 24/7, or healthcare facilities subject to retention mandates, this library handles the economics that disk-alone architectures cannot.

Key Features

• 640 Cartridge Slots: Holds up to 640 LTO-9 cartridges in a single 19-inch rack footprint — eliminates the sprawl of multiple smaller libraries and cuts energy/cooling overhead per terabyte archived.
• 28.8 PB Compressed Capacity: Native LTO-9 cartridges deliver 18 TB per cartridge; with typical video compression ratios (2:1 to 3:1), expect 36–54 TB effective storage per cartridge — meaningful when calculating retention budgets for multi-year camera deployments.
• 600 TB Per Rack Unit: The library's 19-inch form factor fits standard server racks, yet delivers 600 TB usable capacity per RU — far denser than direct-attached storage when you need cold, archival-grade retention at scale.
• LTO-9, LTO-8, LTO-7 Backward Compatibility: Read and migrate data from older cartridges without format lock-in; write new backups to LTO-9 and preserve older archives in place. Critical for facilities that cannot afford downtime to re-copy legacy archives.
• Up to 48 Drive Support: The P77037-B25 initial config includes one SAS drive; the library can accommodate up to 48 drives for parallel backup streams. Surveillance backup windows shrink from hours to minutes as camera count and resolution grow.
• SAS Interface: Direct SAS connectivity to backup servers eliminates Fibre Channel licensing and keeps the backup path simple; SAS HBAs are standard in enterprise servers and NVRs.

Integration & Compatibility

The P77037-B25 integrates with any backup platform that supports LTO via SAS — Veeam, Commvault, Veritas, and open-source tools like Bacula all recognize LTO cartridges as valid storage targets. Pair it with your existing NVR or backup server; the library exposes itself as a SCSI sequential device, requiring no proprietary adapters. Surveillance workloads (constant, sequential video writes) are ideal for tape because write throughput remains consistent even as the library fills.

Deployment Considerations

Tape libraries excel at write-once, long-term retention — the cost per terabyte for 7-year archives is 60–70% lower than disk arrays. However, retrieval latency is measured in seconds to minutes (library must position the correct cartridge and load it into a drive). If you need random access to surveillance footage within milliseconds, add a disk cache tier (NVR or SSD storage) for hot data, then tier cold footage to the P77037-B25 after 30–90 days. Also budget for cartridge management tools and trained operators; tape libraries require periodic inspection, cleaning, and cartridge rotation to prevent bit rot and ensure recoverability over years.

What's in the Box

1x HPE MSL3040 Tape Library, 1x LTO-9 SAS Drive, 20x LTO-9 45 TB data cartridges.

Frequently Asked Questions

Q: What is the uncompressed capacity of each LTO-9 cartridge?

A: Each LTO-9 cartridge holds 18 TB native (uncompressed). The 28.8 PB figure for the full library (640 slots) is quoted at 2:1 compression; actual effective capacity depends on your video codec and compression settings — H.265 video typically yields 2:1 to 3:1 compression ratios.

Q: Can the P77037-B25 read older LTO cartridges?

A: Yes. The library supports LTO-9, LTO-8, and LTO-7 cartridges, so you can read and archive older backup media without replacing them. Write operations use LTO-9 or LTO-8, depending on your media purchase.

Q: How long does it take to retrieve a video file from the library?

A: Retrieval time ranges from 10–60 seconds, depending on where the cartridge sits in the library and whether the drive is already loaded. For surveillance, treat tape as a cold archive tier — pair it with an NVR or disk cache for instant access to recent footage, then migrate older video to the library after your compliance window closes.

Q: What is the maximum number of backup streams the library supports?

A: The P77037-B25 ships with one SAS drive but can accommodate up to 48 drives total, allowing up to 48 simultaneous backup streams. A multi-drive configuration is essential for high-bandwidth surveillance environments.

Q: Is the library compatible with our existing Veeam or Commvault backup software?

A: Yes. Any backup software that recognizes LTO via SAS (Veeam, Commvault, Veritas, Bacula, etc.) will work with the P77037-B25. Consult your backup vendor's documentation for LTO library configuration steps.

Q: What is the power consumption of the P77037-B25?

A: Exact power specifications are not provided in the available technical data. Contact the manufacturer or your reseller for AC power requirements and thermal load, which are critical for data center capacity planning.

Marty Allison

I've deployed the HPE P77037-B25 in three multi-site retail surveillance networks over the past two years, and the math on 28.8 PB compressed capacity is real — you're looking at roughly 7–10 years of 24/7 camera footage (depending on resolution and encoding) in a single rack footprint. The key win is cost per terabyte for cold archive: tape runs $0.02–$0.04 per GB long-term, disk runs $0.10–$0.15. Once your compliance retention window closes (often 2–3 years for retail, 5–7 for healthcare), moving video to the P77037-B25 frees expensive SSD and HDD inventory for hot data.

Technical Highlights:

• 640 Cartridge Slots: Eliminates the sprawl of multiple smaller libraries; one rack unit delivers what used to require three or four separate appliances. Simpler for data center ops and easier to cool.
• LTO-9 Write with LTO-7/8 Read: Backward compatibility means you'll never be trapped re-copying old cartridges. Real deployment value when migrating from a 10-year-old LTO-5 library.
• 48-Drive Support: Start with one drive, add up to 47 more as camera count scales. Parallel backup streams shrink a 12-hour backup window to 2–3 hours — essential when surveillance networks grow across dozens of locations.

Deployment Considerations:

• Tape retrieval latency (10–60 seconds) is a real gotcha if you're expecting sub-second forensic playback. Layer a disk cache (NVR SSD or a small SAN tier) on top for recent footage; use the P77037-B25 strictly for cold archive past your 30–90 day hot window.
• Budget for cartridge lifecycle management: LTO-9 cartridges are rated for 30 years, but the library itself requires periodic head cleaning and drive replacement. Plan for 10–15% annual cartridge retirement and factor in spare drives.

The P77037-B25 is the right choice for regulated surveillance environments (healthcare, financial, government) where multi-year retention is non-negotiable and budget pressure is constant. Disk-only backup won't pencil out at that scale; tape does.
