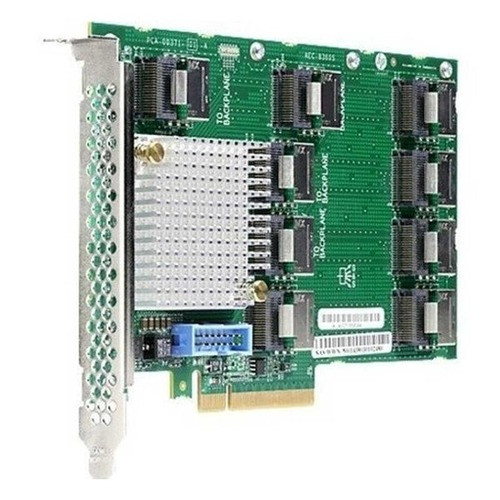

HPE DL580 GEN10 12G 24-PORT SAS Expander - 881101-B21

HPE 881101-B21 12G 24-Port SAS Expander

Overview

The HPE 881101-B21 is a 12G 24-port SAS expander card designed for the HPE ProLiant DL580 Gen10 platform. It expands the server's internal SAS drive connectivity beyond what the base controller supports — the right component when a DL580 Gen10 build needs to populate additional drive bays without adding a second host bus adapter or restructuring the storage stack. At 2.10 lb and 16.00 × 11.90 × 3.40 in, this is a full-size internal board sized for the DL580 Gen10 chassis; verify bay and slot compatibility against your specific server configuration before ordering.

The 881101-B21 (often searched as 881101 B21) carries a UNSPSC code of 43202105, classifying it within the storage controller and expander product family. Sourcing through distribution channels ensures factory-new, genuine components — no grey-market, no parallel imports.

Key Features

• 12G SAS Interface: 12Gb/s SAS throughput doubles the bandwidth ceiling of 6G predecessors — meaningful when multiple high-RPM SAS drives or NVMe-bridged devices are competing for bandwidth on a busy storage backplane. Eliminates the bottleneck that 6G expanders introduce in mixed-workload environments.
• 24-Port Expansion: Twenty-four SAS ports on a single expander card means a single 881101-B21 can serve a fully-populated drive shelf without daisy-chaining expanders. Fewer hops in the SAS topology reduces latency variance and simplifies fault isolation during maintenance.
• DL580 Gen10 Platform Fit: Engineered specifically for the ProLiant DL580 Gen10, a 4-socket server commonly deployed in large-scale database, virtualization, and in-memory computing workloads where storage density directly impacts performance. Platform specificity means firmware compatibility and HPE support coverage are tied to this chassis — do not attempt cross-platform installation.
• Physical Form Factor (16.00 × 11.90 × 3.40 in / 2.10 lb): The board's dimensions reflect a full-depth internal expander design. Confirm physical clearance within your DL580 Gen10 chassis configuration, particularly if additional PCIe cards or cable runs are already occupying adjacent space.

Integration and Compatibility

The 881101-B21 is designed for the HPE ProLiant server line, specifically the DL580 Gen10 chassis. It integrates with HPE's SAS storage infrastructure and is intended to work alongside HPE Smart Array controllers or compatible HBAs. Confirm your storage planning requirements against HPE's DL580 Gen10 QuickSpecs before procurement — expander compatibility depends on backplane revision, controller firmware version, and drive bay configuration. For environments running high-density SAS drive arrays, this expander removes the port-count ceiling that limits base controller configurations. Consult the HPE DL580 Gen10 QuickSpecs or a pre-sales engineering resource to confirm exact slot assignment and cabling requirements for your build.

Frequently Asked Questions

Q: What server platform is the HPE 881101-B21 designed for?

A: The 881101-B21 is designed for the HPE ProLiant DL580 Gen10 server platform. Do not attempt installation in other ProLiant generations or third-party chassis — physical fit and firmware compatibility are chassis-specific.

Q: What SAS generation does the 881101-B21 support?

A: It operates at 12Gb/s SAS (SAS-3), which provides twice the per-lane bandwidth of 6G SAS-2 expanders. This matters in high-drive-count configurations where aggregate bandwidth from spinning SAS or fast SSD devices can saturate a 6G expander.

Q: How many ports does the 881101-B21 expander provide?

A: The expander provides 24 SAS ports, sufficient to serve a densely-populated drive shelf from a single card without daisy-chaining additional expanders.

Q: Does the 881101-B21 require a specific HPE Smart Array controller?

A: Controller compatibility depends on the HPE DL580 Gen10 configuration. Consult the HPE DL580 Gen10 QuickSpecs for the validated controller and firmware matrix before deploying this expander in production.

Q: What are the physical dimensions of the 881101-B21?

A: The board measures 16.00 × 11.90 × 3.40 inches and weighs 2.10 lb. Verify physical clearance in your chassis before installation, especially if adjacent slots are occupied.

Jerry Tildsen

The HPE 881101-B21 is a purpose-built 12G SAS expander for the DL580 Gen10 — the kind of component that rarely gets attention until someone tries to max out a drive shelf and realizes the base controller ran out of ports two trays ago. At 24 ports on a single board, this expander handles a fully-populated high-density shelf without forcing you into a daisy-chain topology that complicates both performance analysis and fault isolation.

Technical Highlights:

• 12G SAS Bandwidth: 12Gb/s per lane is the current SAS-3 standard — critical when you're aggregating throughput from a mix of 15K SAS drives and fast SAS SSDs. A 6G expander in this configuration becomes the bottleneck before the drives do.
• 24 SAS Ports: A single 881101-B21 covers a full 24-drive shelf. In a DL580 Gen10 configured for maximum storage density, this means one expander replaces what would otherwise require multiple cabling runs back to an HBA with a port splitter — cleaner topology, easier to troubleshoot.
• Platform Specificity: At 16.00 × 11.90 × 3.40 in, this board is sized and validated for the DL580 Gen10 internal bay. That physical specificity is also a constraint — this is not a universal expander and HPE firmware updates are chassis-paired.

Deployment Considerations:

• Verify your DL580 Gen10 backplane revision against the HPE QuickSpecs before ordering — expander compatibility is tied to backplane and controller firmware version, not just chassis model number.
• The board's 2.10 lb weight and 16-inch length mean cable management and adjacent card clearance need to be planned before installation, not after. In a fully-loaded 4-socket DL580 Gen10, internal real estate is tight.

Best fit for DL580 Gen10 deployments running high-density SAS storage — large-scale virtualization hosts, database servers, or in-memory analytics platforms where drive-bay saturation is the design target, not an afterthought.
