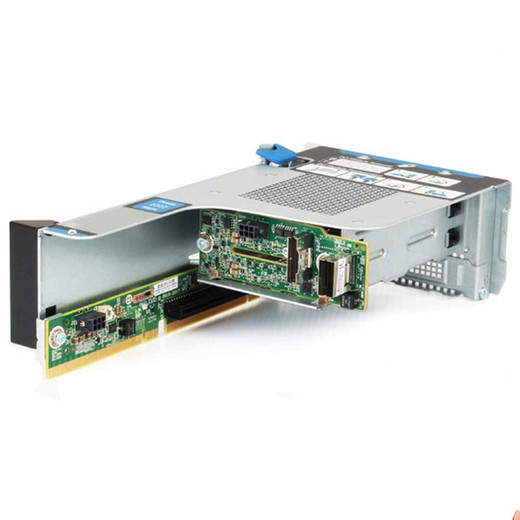

HPE DL380 G12 2SFF X4 PCIE BOX6 CBL KIT - P76475-B21

HPE P76475-B21 Concise Descriptor

Overview

The HPE P76475-B21 is a PCIe cable kit designed to facilitate the installation of PCIe devices within compatible HPE ProLiant server chassis. This accessory provides the necessary cabling to connect a PCIe adapter card to the server's motherboard, enabling expanded functionality such as additional network ports, storage controllers, or specialized processing cards. Its primary function is to ensure a reliable electrical connection for high-speed data transfer between the adapter and the server's core system, crucial for performance-sensitive applications.

Compatibility

This kit is specifically designed for use with HPE ProLiant DL380 Gen10 Plus servers configured with a 2SFF (Small Form Factor) drive bay and a specific PCIe riser configuration (Box 6). It is intended to support the installation of PCIe adapter cards into the designated expansion slots within these server models. Always verify your server's internal configuration and service manual to confirm compatibility before ordering.

Installation Notes

The HPE P76475-B21 kit includes the necessary cables for connecting a PCIe device. Installation requires opening the server chassis and carefully routing the cables to the appropriate motherboard connectors. Ensure the server is powered off and properly grounded before beginning installation. The weight of the kit is 0.20 lb, indicating it is a lightweight component that does not add significant load to the server's internal structure.

What's in the Box

• 1x HPE P76475-B21 PCIe Cable Kit
