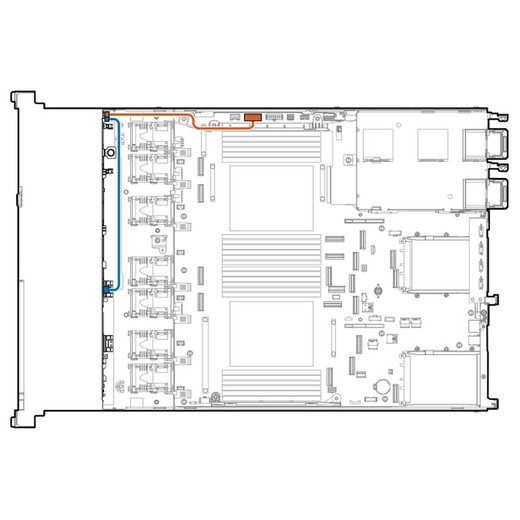

HPE DL365 GEN11 2SFF TM U.2 X4 BC BP KIT - P55023-B21

HPE P55023-B21 Concise Descriptor

Overview

The HPE P55023-B21 is a backplane kit designed for specific HPE server configurations, enabling the integration of U.2 NVMe drives. This component is critical for storage expansion in servers where high-speed, direct-attached storage is required, such as for VMS servers or high-performance computing nodes. The P55023-B21 facilitates the use of 2.5-inch SFF (Small Form Factor) drives in a U.2 form factor, providing a pathway for enhanced I/O performance.

Compatibility

This backplane kit is engineered for compatibility with specific HPE ProLiant server models that support 2SFF (2 Small Form Factor) drive bays and U.2 drive configurations. It is designed to integrate seamlessly into the server chassis, providing the necessary electrical and mechanical interfaces for U.2 NVMe drives. Refer to HPE server QuickSpecs for exact model compatibility, typically found in the DL365 Gen11 server family.

Installation Notes

Installation requires opening the server chassis and seating the backplane securely into the designated drive bay area. Proper cable management is essential to ensure airflow and prevent interference with other server components. Ensure the server is powered down and all safety precautions are followed before installation. The kit is designed for tool-less installation in compatible HPE server bays.

What's in the Box

• 1x HPE P55023-B21 Backplane Kit
