HPE P61535-B21 Concise Descriptor

Overview

The HPE P61535-B21 is a Flexible I/O (FIO) cable designed to bridge the connection between SlimSAS storage devices and the main logic board (MLB) within compatible HPE ProLiant servers. This cable is critical for expanding storage capacity by enabling the integration of SAS/SATA drives in configurations that utilize SlimSAS connectors on the motherboard, ensuring data integrity and performance for storage-intensive applications.

Compatibility

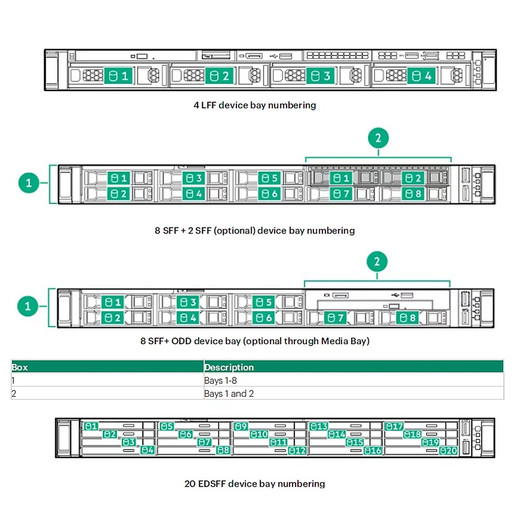

This cable is specifically designed for use with HPE ProLiant DL360 Gen11 servers. It facilitates the connection of SlimSAS backplanes or direct-connect drives to the server's MLB, supporting SAS and SATA drive types. Ensure your server model is listed for confirmed compatibility.

Installation Notes

Installation requires careful attention to connector alignment to prevent pin damage. The SlimSAS connectors are keyed to ensure correct orientation. Ensure the server is powered down and properly grounded before connecting or disconnecting the cable. Torque specifications for drive bays and backplane connections should be followed as per the HPE ProLiant DL360 Gen11 server documentation.
