HPE DL320 GEN12 Prim Front OCP CBL KIT - P77261-B21

HPE P77261-B21 Concise Descriptor

Overview

The HPE P77261-B21 is a front OCP cable kit designed to provide essential connectivity for specific HPE ProLiant DL server models. This kit ensures that the necessary cabling is present for front-panel components and internal data paths, critical for maintaining system integrity and functionality in server deployments. It is engineered for straightforward integration into compatible server chassis, simplifying the installation process for IT infrastructure managers and technicians. The P77261-B21 is a component that supports the operational readiness of your HPE server hardware.

Compatibility

This cable kit is specifically designed for use with HPE ProLiant DL server generations that feature the Open Compute Project (OCP) form factor for front I/O modules. While exact model compatibility is best confirmed via HPE's QuickSpecs documentation for your specific server, it is intended for servers supporting OCP front modules. It is not a universal kit and requires verification against your server's bill of materials or technical specifications to ensure proper fit and function.

Installation Notes

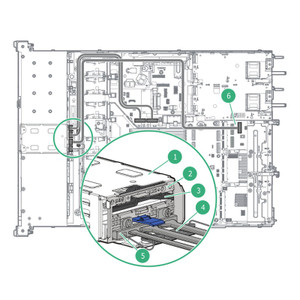

Installation requires opening the server chassis and connecting the provided cables to the designated ports on the motherboard and front OCP module. Ensure the server is powered off and properly grounded before beginning installation. Refer to the server's service manual for detailed instructions on cable routing and connection points to avoid damage to components or improper system configuration. The kit is designed for a specific installation path within the server chassis.

What's in the Box

• 1x HPE P77261-B21 Front OCP Cable Kit
