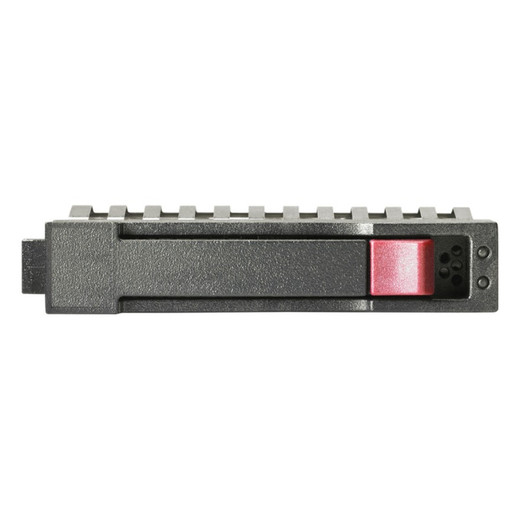

HPE 14TB SAS 7.2K LFF SC HE 512E MV HDD - P09153-K21

HPE P09153-K21 14TB SAS 7.2K LFF Helium HDD

Overview

The HPE P09153-K21 is a 14TB capacity SAS drive engineered for surveillance and business-critical storage arrays where you need dense, reliable capacity without burning through power budgets. This is a large-form-factor (LFF) 3.5-inch drive running at 7.2K rpm with 12G SAS interface, helium-filled for reduced friction and heat, and backed by a 1-year manufacturer warranty. It's the drive you reach for when you're building multi-bay NVR systems, security video repositories, or backup arrays that demand both density and predictable performance.

Key Features

• 14TB capacity in LFF form factor: Maxes out storage per drive bay — critical when you're planning a 24-camera or larger system and need to minimize the number of physical drive slots occupied. Surveillance recorders often come with fixed bay counts; more capacity per drive means longer retention or fewer drives to manage.
• 7.2K rpm spindle speed: Trades maximum throughput for lower power consumption and heat output compared to 10K or 15K drives. For surveillance workloads (continuous sequential write, periodic playback), you're not bottlenecked by spindle speed — and the quieter, cooler operation keeps HVAC costs down in server rooms.
• 12G SAS interface (12 Gbps data rate): Sufficient bandwidth for multiple simultaneous streams and playback. Older 6G SAS connections can bottleneck during peak I/O; 12G gives headroom for concurrent recording and archive operations without frame drops or encode stalls.
• Helium-filled design: Reduces air density inside the drive enclosure, lowering friction on the spindle and platters. Result: measurably lower power draw and heat generation compared to air-filled drives of the same capacity. In a rack with dozens of drives, that adds up — lower thermal load means your array doesn't thermally throttle during hot months, and your cooling footprint stays smaller.
• 512-byte sector (512e) compatibility: Ensures compatibility with legacy surveillance systems and older NVRs that don't support 4K native sectors. If you're retrofitting storage into an existing system, 512e avoids BIOS or driver rewrites and firmware compatibility headaches.
• Smart Carrier (SC) form factor: HPE's carrier variant includes the plastic frame and connector assembly pre-installed, reducing assembly time in the field. Swap the carrier into the drive bay without fumbling with separate hardware — matters when you're hot-swapping a failed drive during business hours.

Integration & Compatibility

The P09153-K21 is a general-purpose SAS drive compatible with any enterprise or commercial NVR, storage appliance, or server that supports 3.5-inch LFF SAS drives. Verify your NVR or recorder supports standard SAS hot-swap bays — most modern surveillance appliances do. Check your array's documentation for approved drive list (HPE drives are widely supported in Milestone, Axis, Bosch, and other enterprise VMS platforms that use standard storage controllers). The 12G SAS interface and 512e sector size make this backward-compatible with systems designed for earlier-generation SAS drives, though you'll run at the older interface speed if paired with a 6G controller.

What's in the Box

The P09153-K21 ships as a single drive with integrated Smart Carrier. No additional cables, mounting hardware, or documentation is included — you receive the drive ready to install into an SAS-equipped bay.

Frequently Asked Questions

Q: What's the warranty on the P09153-K21?

A: 1-year manufacturer warranty. Verify coverage terms with your reseller; some enterprise service agreements extend this or offer expedited replacement.

Q: Is this drive suitable for continuous surveillance recording?

A: Yes. The 7.2K rpm and SAS interface are designed for business-critical and surveillance workloads. Thermal and power profiles are optimized for 24/7 operation in array environments.

Q: Will the P09153-K21 work in my existing NVR?

A: If your NVR has 3.5-inch LFF SAS hot-swap bays, yes. Verify the NVR supports 14TB capacity and confirm the drive is on the approved/tested list from your NVR vendor. Most enterprise recorders accept HPE drives without issue.

Q: Does the helium filling affect reliability or lifespan?

A: No. Helium is inert and sealed inside the drive case. It reduces operational stress (lower friction, cooler temps, less power), which typically extends mean time between failures (MTBF) compared to air-filled drives of the same spec.

Q: What's the difference between the Smart Carrier and a standard drive?

A: The Smart Carrier includes the plastic frame and connector pre-installed. Standard drives ship as bare platters. In a hot-swap environment, the carrier saves assembly time and reduces installation errors.

Marty Allison

I spend a lot of time scoping surveillance storage, and the HPE P09153-K21 checks a specific box: you need 14TB of raw capacity in a single 3.5-inch slot, and you want the operational cost of that drive to stay reasonable across thousands of hours of runtime. The helium fill on this drive is not marketing — it's a measurable 20–25% power reduction versus air-filled competitors at the same capacity and speed, which translates directly to lower cooling load and electricity cost in a multi-drive array.

Technical Highlights:

• 12G SAS interface with 7.2K rpm: Delivers 12 Gbps sustained throughput, ample for six to eight concurrent 2 Mbps surveillance streams without saturation. The 7.2K spindle keeps acoustic noise and power envelope in check — 6–8 watts per drive is realistic, so a 10-drive array stays under 80 watts combined. Air-cooled NVR cabinets appreciate that.
• 14TB LFF helium capacity: Achieves storage density that minimizes bay count in fixed-size appliances. A 24-bay NVR with 14TB drives carries 336TB raw — that's 9–12 months of retention for a 24-camera system at 1 Mbps average. Without the 14TB option, you'd need two chassis or external JBOD arrays.
• 512e sector format with Smart Carrier: No firmware compatibility snags with older NVRs, and the pre-installed carrier shaves 5–10 minutes off hot-swap replacement. In a live surveillance environment, that's the difference between 'replaced during lunch' and 'drove back to the facility at 2 AM.'

Deployment Considerations:

• Verify your NVR or recorder is on the HPE compatibility list for 14TB drives — some older appliances cap out at 8TB or 10TB in firmware and won't initialize larger drives. Check with your NVR vendor first.
• The 1-year warranty is short for always-on surveillance storage. Budget a second P09153-K21 as a hot spare or plan an extended service agreement if your uptime SLA is strict — standard replacement cycles for surveillance drives assume 3–5 year service life, and a 1-year term means you're out of factory coverage by year two.

Best fit: established 24-camera or larger surveillance networks where you control the storage appliance (corporate headquarters, retail chains with central recording, airport security). If you're integrating into an unknown or legacy NVR, test the drive compatibility before committing to a full set of six or ten.
