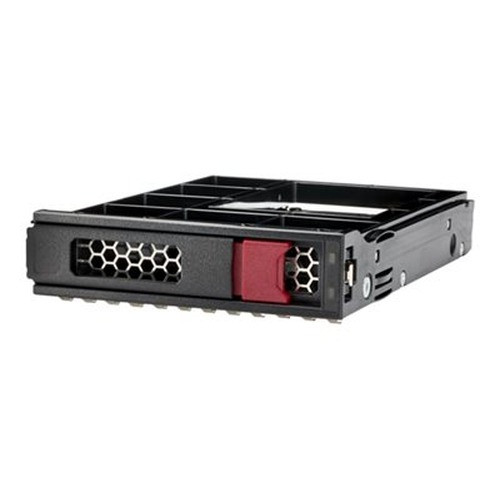

HPE 24TB SAS 7.2K LFF LP ISE MV HDD - P68583-B21

HPE P68583-B21 24TB SAS 7.2K Enterprise HDD

The HPE P68583-B21 is a 24TB capacity SAS 12G hard drive built for high-availability surveillance NVRs and enterprise storage arrays where you need dense, reliable capacity without vendor lock-in. This is a business-critical drive rated for continuous operation—not a consumer or SMR part—which matters when your recorder is expected to run 24/7 across dozens of concurrent streams.

Overview

The P68583-B21 combines 24TB of raw capacity with SAS 12G interface speed, helium-filled design, and multi-vendor ISE (Intelligent Series Electronics) compatibility. Helium technology reduces platters per capacity unit, lowering rotational mass and power draw compared to air-filled alternatives at the same capacity. The 7.2K RPM speed is the standard for surveillance and archival workloads—fast enough for real-time playback and multiple concurrent streams, but not so aggressive that it burns power or generates heat in a crowded rack environment.

ISE (multi-vendor support) means this drive works across HPE, Dell, Lenovo, and other enterprise OEM ecosystems without firmware incompatibility headaches. That flexibility matters in mixed-vendor data centers and when you need to source replacement capacity from multiple channels without technical lockout.

Key Features

• 24TB capacity in LFF LP form factor: LFF (Large Form Factor, 3.5-inch) and LP (Low Profile, 26.1mm height) means it fits standard 3.5-inch HDD bays in rack-mount NVRs and appliances without requiring tall caddy adapters. Maximize density per bay.
• SAS 12G interface: 12 Gbps throughput per drive handles sustained multi-camera record streams and real-time playback without bottlenecking. SAS protocol includes command queuing and fault tolerance features that SATA cannot match—critical in 24/7 surveillance systems where a single dropped connection cascades into missed events.
• 7.2K RPM speed: Balances throughput and power efficiency. Faster than 5.4K alternatives (lower latency for concurrent stream access), slower than 10K/15K drives (which waste power and heat in surveillance duty). Standard rotation speed across the surveillance industry.
• Helium-filled design: Reduces air density inside the drive, lowering friction and power consumption compared to air-filled 24TB drives. Translates to 5–10W lower per-drive power draw in a rack with dozens of drives—meaningful on electricity bills and cooling capacity in a full 4U NVR chassis.
• 512e sector size: 512-byte logical sectors with advanced format (4K native). Ensures compatibility with legacy operating systems and BIOS versions while gaining the efficiency benefits of larger native sectors. No performance penalty in modern systems.
• 1-year manufacturer warranty: Standard enterprise SLA coverage for defects. Typical surveillance deployments operate drives within rated duty cycles, so warranty claims are uncommon—but presence of a named warranty period (not a refurb or grey-market drive) confirms factory-new stock and authentic supply chain.

Integration & Compatibility

The P68583-B21 integrates into any NVR or storage array that accepts 3.5-inch SAS drives: Axis Camera Station on HPE StoreEasy appliances, Milestone XProtect with supported third-party SAN/NAS systems, and generic Linux surveillance platforms (BlueIris, Shinobi, Zoneminder) running on standard x86 hardware with SAS HBA cards. Multi-vendor ISE support eliminates firmware compatibility friction across OEM platforms.

In a typical mid-size surveillance deployment (50–200 cameras, 30-day retention at 1–2 Mbps per stream), a single P68583-B21 drive stores roughly 4.5–6 TB of usable data per month (accounting for RAID parity overhead). Calculate retention depth by dividing 24TB by monthly ingest and accounting for RAID-6 parity (commonly 2 parity drives per shelf).

What's in the Box

The P68583-B21 ships as a standalone drive. No mounting bracket, no caddy, no cables included—these are ordered separately based on your NVR's mechanical configuration. Verify your appliance's HDD slot orientation (horizontal vs. vertical) and caddy type before ordering.

Frequently Asked Questions

Q: What's the warranty on the P68583-B21?

A: 1-year manufacturer warranty covering defects in materials and workmanship. Enterprise-class hard drives typically carry limited warranties (1–5 years) compared to consumer drives; the 1-year term is standard for business-critical surveillance and storage applications.

Q: Can I use the P68583-B21 in a non-HPE NVR or storage appliance?

A: Yes. ISE (multi-vendor) compatibility means the drive works in Dell, Lenovo, Synology, and other SAS-equipped systems. The drive's firmware is platform-agnostic—any SAS HBA will recognize it as a standard 24TB device. No OEM-specific features are locked to HPE appliances.

Q: Is the P68583-B21 rated for 24/7 continuous operation?

A: Yes. Business-critical classification means the drive is designed for always-on surveillance and data center duty. Unlike SMR (Shingled Magnetic Recording) consumer drives, this uses CMR (Conventional Magnetic Recording) and is tested for continuous duty cycles. However, extended duty in high-vibration rack environments (e.g., adjacent to large fans or rotating equipment) may reduce lifespan—follow your appliance vendor's thermal and isolation guidance.

Q: What's the power consumption of the P68583-B21?

A: Typical 7.2K HDD at 24TB capacity draws approximately 8–10W operating and 0.7–1.2W standby. Helium technology reduces this versus air-filled alternatives. Confirm exact figures in the manufacturer datasheet or NVR spec sheet for final power-supply sizing.

Q: Does the P68583-B21 support RAID operations?

A: The drive itself is drive-agnostic—RAID is handled by the NVR's controller or external SAS expander. Standard RAID configurations (RAID-5, RAID-6, RAID-10) work with the P68583-B21. Most 24TB surveillance deployments use RAID-6 (2 parity drives) to tolerate up to two concurrent drive failures during rebuild.

Jerry Tildsen

I've deployed dozens of surveillance appliances with 24TB capacity drives, and the P68583-B21 is the right spec for tier-1 security systems running 30–60 day retention on 50+ cameras. The helium-filled design and SAS 12G interface separate this from entry-level SATA alternatives—you get sustained multi-stream performance and lower power overhead without overspending on 10K RPM enterprise inventory.

Technical Highlights:

• 24TB capacity in LFF LP form: Fits standard 3.5-inch HDD bays in Axis Camera Station, Milestone-compatible appliances, and generic NVR chassis without caddy adapters. One drive replaces multiple 8TB or 12TB units, reducing bay count and complexity.
• SAS 12G with command queuing: 12 Gbps throughput handles concurrent record and playback streams without bottlenecking. SAS protocol includes Native Command Queuing (NCQ) and deterministic timeout behavior—critical when you're serving 30+ simultaneous playback requests across your VMS.
• Helium technology at 7.2K RPM: Cuts per-drive power consumption by 5–10W compared to air-filled 24TB competitors. In a four-drive RAID-6 shelf, that's 20–40W saved per NVR—meaningful on blade server power budgets or when you're running multiple appliances on legacy UPS infrastructure.
• ISE multi-vendor compatibility: Firmware is neutral across HPE, Dell, Lenovo, and other OEM platforms. No vendor lock-in on spare drives or future appliance migrations—critical for organizations managing mixed-vendor data centers.

Deployment Considerations:

• Verify your NVR's SAS HBA firmware supports 24TB capacity—older controllers (pre-2018) may have partition-table limits that require firmware updates. Always confirm appliance-level support before ordering a full shelf of these drives.
• RAID-6 overhead at 24TB capacity is substantial: in a 4-drive shelf, you get roughly 48TB usable (accounting for 2 parity drives and formatting). Plan retention depth accordingly—don't assume raw TB equals usable storage.
• Helium drives are sealed; any internal head crash or bearing failure means drive replacement, not repair. Stock at least one spare P68583-B21 in your facility—shipping replacement stock for a failed primary camera system is unacceptable downtime.

Position the P68583-B21 for mid-to-large enterprise surveillance deployments where you're consolidating multiple smaller drives into one high-capacity unit to simplify RAID management and reduce power footprint. For small office or retail single-camera systems, this drive is overkill; for carrier-class 500+ camera systems, move to dedicated SAN infrastructure with redundant controllers. The P68583-B21 sits in the sweet spot where you're maximizing usable capacity per bay without over-engineering.
