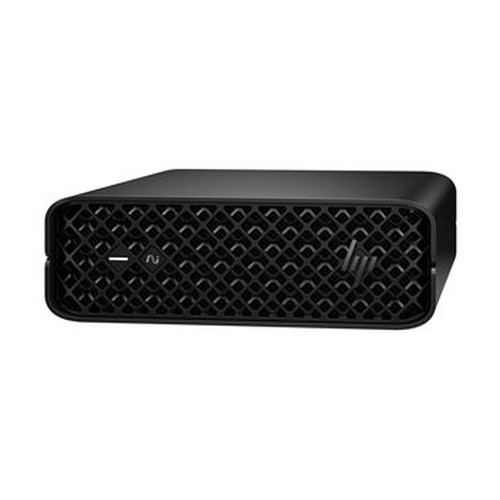

HP Inc BM6N4UT#ABA Z2 Mini G1i Compact Workstation Desktop
Overview
The HP Inc BM6N4UT#ABA is a SmartBuy-configured Z2 Mini G1i workstation — a palm-sized professional desktop that packs Intel's 15th Generation Core Ultra 9 285 processor and an NVIDIA Quadro RTX 4000 discrete GPU into a chassis small enough to mount behind a monitor or sit flat on a shelf. For security operations centers, video analytics workstations, or engineering desks where floor space is at a premium and professional-grade compute is non-negotiable, this is the configuration to evaluate.
Explore the full HP Inc workstation and computing line to compare configurations across the Z-series portfolio.
Key Features
- Intel Core Ultra 9 285 (15th Gen, 24 cores, up to 5.60 GHz): Twenty-four cores with a 5.60 GHz boost clock handle multi-stream video decoding, simultaneous VMS client rendering, and background analytics processing without the frame-drop or latency that chokes lesser chips under real production load. The 1.90 GHz base keeps idle power draw modest — relevant if this station runs 24/7 in a monitored environment.
- Intel AI Boost NPU (up to 13 TOPS): The on-chip neural processing unit offloads AI inference tasks — object detection pre-processing, noise reduction pipelines, or on-device classification — away from the CPU and GPU, preserving both for rendering and I/O. In AI-enhanced surveillance or edge analytics deployments, the NPU reduces the CPU overhead that would otherwise throttle concurrent stream counts.
- NVIDIA Quadro RTX 4000 Discrete GPU: The Quadro RTX 4000 is a professional-class GPU certified for ISV workstation applications — CAD, simulation, and multi-display video walls — not a gaming card rebadged for workstation use. NVIDIA's driver certification program means it has been validated against professional software stacks, reducing driver-related instability in 24/7 deployments. It also carries hardware-accelerated H.264/H.265 encode and decode engines, which matter when the station is tasked with real-time video transcoding or serving a VMS recording role.
- 32GB System RAM: 32GB is the working baseline for running a full VMS client, browser-based management console, and background analytics concurrently without memory pressure forcing OS-level paging. It keeps response times predictable under the mixed workloads that characterize an active security or operations desk.
- 1TB M.2 PCIe NVMe 2280 TLC 4×4 SSD: A Gen 4×4 NVMe drive delivers read bandwidth in the multi-GB/s range — fast enough that OS boot, application launch, and local video cache operations don't become the bottleneck in a demanding workflow. TLC NAND at this capacity tier gives a reasonable balance of density and endurance for a workstation boot and application drive.
- Z2 Mini G1i Form Factor: The Mini chassis is VESA-mountable behind compatible displays, which eliminates desk clutter and simplifies cable management in rack-adjacent or operator desk environments. At 5.29 lb, it's light enough to relocate without a facilities ticket. The compact footprint makes it a natural fit for compact workstation deployments where full-tower real estate isn't available.
- SmartBuy Configuration: SmartBuy designates a pre-configured, channel-stocked HP business unit — meaning this exact BOM (Core Ultra 9 285 / 32GB / 1TB NVMe / RTX 4000) is a discrete orderable SKU rather than a custom-configured build. Lead times are predictable and unit-for-unit consistency is guaranteed across multi-seat deployments, which matters when you're rolling out identical analyst workstations across multiple locations.
Integration & Compatibility
The Quadro RTX 4000 GPU supports multiple simultaneous display outputs, making this unit viable as a multi-monitor operator workstation without an add-in display splitter. The Intel Core Ultra 9 285 platform supports Intel vPro technologies (verify with HP for this specific SmartBuy SKU), which enables out-of-band remote management — a meaningful operational advantage for IT teams managing distributed security workstations without on-site access.
For environments running network video recorders or VMS platforms with GPU-accelerated decoding (Milestone, Genetec, Avigilon), the RTX 4000's NVENC/NVDEC engines can be leveraged to offload stream decode from the CPU, increasing the number of concurrent live or playback streams before the station saturates. Pair this with a managed PoE switch feeding IP cameras on the same network segment to keep latency low on live view feeds.
The NVMe 4×4 SSD architecture is compatible with standard M.2 2280 replacement drives if higher-endurance or higher-capacity storage is needed — relevant for deployments where local video buffering or forensic evidence storage is part of the workstation's role. Consult HP's Z2 Mini G1i configuration guide for confirmed storage expansion limits on this platform.
Frequently Asked Questions
Q: What processor does the BM6N4UT#ABA ship with?
A: It ships with an Intel Core Ultra 9 285 — a 15th Generation processor with 24 cores, a 1.90 GHz base clock, and a 5.60 GHz boost clock, plus an integrated Intel AI Boost NPU rated up to 13 TOPS for on-device AI inference.
Q: What GPU is included in the BM6N4UT#ABA?
A: The unit includes an NVIDIA Quadro RTX 4000 discrete GPU — a professional-class card with ISV certifications and hardware H.264/H.265 video encode and decode engines, distinct from consumer gaming GPUs.
Q: How much RAM and storage does the BM6N4UT#ABA include?
A: 32GB of system RAM and a 1TB M.2 PCIe NVMe 2280 TLC 4×4 SSD for primary storage.
Q: What does the Intel AI Boost NPU do in this workstation?
A: The Intel AI Boost NPU (rated up to 13 TOPS) is a dedicated neural processing unit on the Core Ultra 9 285 die. It accelerates AI inference tasks — such as object classification, noise reduction, or analytics pre-processing — independently of the CPU and GPU, preserving those resources for rendering and I/O workloads.
Q: Can the Z2 Mini G1i be VESA-mounted behind a monitor?
A: The Z2 Mini platform supports VESA mounting (verify compatible VESA mount accessory with HP for this specific SmartBuy unit). At 5.29 lb, the chassis is suitable for behind-display mounting in operator desk or kiosk configurations.
Q: Is the BM6N4UT#ABA a custom-order or a stocked SKU?
A: It is a SmartBuy configuration — a pre-defined, channel-stocked HP business SKU with a fixed BOM. This means consistent unit-to-unit hardware and more predictable availability compared to custom-configured builds.
The BM6N4UT#ABA is one of the more interesting compact workstation configurations I've seen cross the security and AV integration space in this product generation. The combination of a 24-core Core Ultra 9 285 running up to 5.60 GHz with a Quadro RTX 4000 and a dedicated 13-TOPS NPU in a sub-6-lb chassis changes what's possible at an operator desk without a tower footprint.
Technical Highlights:
- NVIDIA Quadro RTX 4000 + NVENC/NVDEC: Hardware video encode/decode on the RTX 4000 means the CPU stays free for VMS logic and analytics while the GPU handles stream transcoding — a real multiplier on concurrent stream counts in Milestone or Genetec deployments.
- Intel AI Boost NPU (13 TOPS): Dedicated on-chip inference acceleration means lightweight AI models (object detection, scene classification) can run continuously without measurable CPU load increase — keeps the 24-core CPU headroom available for burst decode tasks.
- 1TB NVMe Gen 4×4 SSD: Multi-GB/s sequential read means forensic video retrieval and evidence export operations that would stall a SATA drive complete in seconds — operationally meaningful in incident response workflows where time-to-clip matters.
Deployment Considerations:
- The Quadro RTX 4000 requires confirming display output count and connector type against your monitor array before deployment — verify HP's Z2 Mini G1i display specification for this SmartBuy BOM, as mini-chassis GPUs sometimes ship with active adapter requirements for full multi-display configurations.
- At 5.29 lb and Mini form factor, thermal management depends on adequate airflow in the mounting location — VESA-mounting in a sealed enclosure or directly against a wall without clearance can throttle sustained performance on the Core Ultra 9 285 under heavy encode/decode load.
This unit is best positioned as a dedicated video analytics or VMS operator workstation in a security operations center or command room where desk real estate is constrained, professional GPU driver stability is required, and AI-assisted video review is part of the daily workflow.
