HP Inc BM6M3UT#ABA HP SmartBuy Z2 Mini G1i Workstation Desktop PC Intel Core Ultra 5 235 with Intel

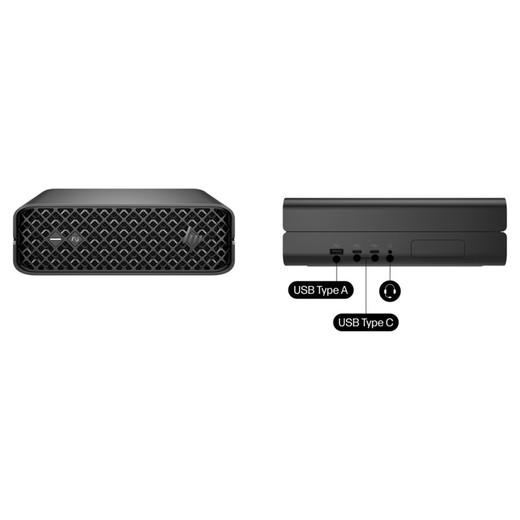

HP Inc BM6M3UT#ABA Z2 Mini G1i Compact Professional Workstation

The HP Z2 Mini G1i, model BM6M3UT#ABA, is a 15th-generation compact workstation built around Intel's Core Ultra 5 235 processor and paired with an NVIDIA Quadro RTX A400 GPU — a combination that targets engineers, analysts, and security operations staff who need certified professional graphics and AI-accelerated compute in a form factor small enough to VESA-mount behind a monitor. At 11 lb and roughly the footprint of a large book (19.75 × 6.65 × 11.50 in), it fits under a desk, on a wall plate, or inside a rack shelf where a tower would be impractical.

Key Features

• Intel Core Ultra 5 235 — 14 cores, up to 5.00 GHz: The hybrid core architecture (performance + efficiency cores in a single die) handles multi-threaded workloads — video analytics, simultaneous VMS streams, or CAD rendering — without the thermal overhead of a full desktop part. Boost to 5.00 GHz keeps single-threaded tasks like database queries and UI interaction snappy even under background load.
• Intel AI Boost NPU — up to 13 TOPS: The dedicated Neural Processing Unit offloads AI inference tasks from the CPU and GPU, keeping both available for primary workloads. In a security operations context, this means on-device analytics or AI-assisted video review can run concurrently with live stream monitoring without throughput degradation. 13 TOPS is a meaningful hardware AI accelerator for edge inference, not a marketing asterisk.
• NVIDIA Quadro RTX A400 professional GPU: The RTX A400 is an ISV-certified professional graphics card — certified by Autodesk, Bentley, Siemens, and other enterprise software vendors for driver-stable, validated operation. Unlike consumer GeForce parts, Quadro-class cards carry workstation driver certification, which matters in environments running VMS software with GPU-accelerated decoding or operators using GIS or engineering design tools alongside surveillance management.
• 32GB system RAM: 32GB is the practical floor for running a full VMS client, browser-based management dashboards, and local analytics simultaneously without paging to disk. It avoids the performance cliff that 16GB systems hit when a VMS client caches video buffers while a local database runs alongside.
• 1TB M.2 PCIe NVMe 2280 TLC 4×4 SSD: PCIe Gen 4×4 NVMe delivers sequential read speeds in the 5,000–7,000 MB/s range — far above the SATA ceiling — which means video export, large file transfers, and OS boot are not storage-bound. The 1TB 2280 form factor is the standard slot size; upgrading to a larger M.2 drive later is straightforward without compatibility concerns.
• 15th-generation Intel platform: The Gen 15 Core Ultra architecture includes updated memory controllers, improved integrated I/O, and the AI Boost NPU as a native silicon feature — not an add-in card. This extends the useful platform life compared to systems built on prior generations and keeps the BM6M3UT#ABA compatible with emerging AI-accelerated enterprise software that targets NPU offload.
• Compact chassis — 19.75 × 6.65 × 11.50 in, 11 lb: The Mini form factor enables deployment scenarios that eliminate a tower entirely: VESA mount directly to the back of a 27-in operator monitor for a clean command center desk, or slide into a 1U rack shelf for consolidated deployment in a server closet. The 11 lb weight means a single technician can relocate it without assistance.

Integration and Compatibility

The NVIDIA Quadro RTX A400 is compatible with the major video management software platforms that support GPU-accelerated decoding — including those from Milestone, Genetec, and Axis Camera Station — reducing CPU load during multi-stream live view and playback. The Core Ultra 5 235 platform supports Windows 11 Pro (the OS standard for enterprise domain join and group policy management), and the 15th-gen Intel chipset carries broad driver support across enterprise imaging tools.

For NVR and VMS server deployments, the Z2 Mini G1i works as a dedicated operator workstation paired with a headless NVR appliance, handling client-side rendering and analytics display while the server handles recording. It is also suitable as a standalone edge workstation for smaller deployments where a single machine handles both recording and operator display duties — the 32GB RAM and 1TB NVMe provide enough headroom for software NVR operation at moderate channel counts.

The HP Inc workstation line includes larger Z-series towers and rack units for higher channel counts or GPU-intensive rendering pipelines. The Z2 Mini G1i sits at the compact end of that family — the right pick when footprint matters and you do not need a multi-GPU configuration. For workstation accessories including VESA mounts, additional NVMe storage, and display adapters, verify compatibility with the Mini chassis dimensions before ordering.

Frequently Asked Questions

Q: What processor does the BM6M3UT#ABA ship with?

A: It ships with an Intel Core Ultra 5 235 (15th generation), a 14-core processor with a base clock of 2.90 GHz and boost up to 5.00 GHz. The chip includes Intel's AI Boost NPU rated at up to 13 TOPS for on-device AI inference.

Q: What GPU is included in the HP Z2 Mini G1i BM6M3UT#ABA?

A: The unit ships with an NVIDIA Quadro RTX A400 — a professional-class GPU with ISV certification for enterprise software. This is a workstation-grade card, not a consumer GeForce part, which matters for driver stability in VMS and engineering applications.

Q: Can the HP Z2 Mini G1i be VESA-mounted behind a monitor?

A: The Z2 Mini G1i is designed for compact deployment including VESA mounting. At 11 lb and 19.75 × 6.65 × 11.50 in, it is sized for behind-monitor or under-desk installation. Verify the VESA mount accessory is rated for the chassis weight and confirm the specific mount bracket SKU with the product documentation.

Q: How much RAM does the BM6M3UT#ABA ship with, and is it upgradeable?

A: This configuration ships with 32GB of system RAM. For upgrade specifications, consult the HP Z2 Mini G1i maintenance guide to confirm supported SODIMM types and maximum capacity for the BM6M3UT#ABA chassis.

Q: What storage does the BM6M3UT#ABA include?

A: It ships with a 1TB M.2 PCIe NVMe 2280 TLC 4×4 SSD — a Gen 4 NVMe drive in the standard 2280 form factor, providing fast sequential transfer speeds suitable for video workstation and analytics workloads.

Q: Is the HP Z2 Mini G1i BM6M3UT#ABA suitable for use as a VMS operator workstation?

A: Yes. The combination of 32GB RAM, an NVIDIA Quadro RTX A400 (with GPU-accelerated video decoding supported by major VMS platforms), and a fast NVMe SSD makes it well-suited for operator workstation duty — running a VMS client, live view across multiple streams, and analytics dashboards simultaneously without resource contention.

James Everett

The spec that stands out to me on the BM6M3UT#ABA is the combination of the NVIDIA Quadro RTX A400 and the Intel AI Boost NPU in the same compact chassis. Most Mini PCs in this footprint ship with integrated graphics only — getting a certified professional GPU alongside a dedicated 13 TOPS neural accelerator in an 11 lb package is a meaningful hardware configuration for an operator workstation that also needs to run edge inference locally.

Technical Highlights:

• Core Ultra 5 235 — 14 cores, 5.00 GHz boost: Hybrid core architecture handles the mixed workload profile of a security ops desk — multi-threaded VMS stream decoding on efficiency cores while performance cores handle UI and analytics reporting — without the power draw of a full desktop part.
• Intel AI Boost NPU — 13 TOPS: Offloads AI inference from both the CPU and GPU. In a workstation running real-time object classification or behavioral analytics alongside a live VMS view, the NPU keeps the RTX A400 available for GPU-accelerated decode rather than competing with inference tasks.
• 1TB PCIe Gen 4×4 NVMe SSD: Gen 4 NVMe in a workstation this size means local video exports and large evidence file transfers are not storage-bottlenecked — a practical advantage in investigations workflows where an operator needs to export multi-hour clips quickly.

Deployment Considerations:

• VESA mounting places the 11 lb chassis behind a monitor — confirm the mount bracket load rating before installation and check cable management clearance for the rear ports, which may be tight against a wall-mounted display arm.
• The Quadro RTX A400 is a professional GPU, not a gaming card — ISV certification is the advantage, but raw rasterization throughput is modest compared to current consumer mid-range parts. It is the right choice for certified VMS and engineering software; it is not the right choice if the deployment requires real-time 3D rendering at high frame rates.

This configuration is specifically well-positioned for a physical security command center operator desk where space is limited, the VMS platform requires certified GPU drivers (Milestone, Genetec), and there is a growing requirement to run AI-assisted analytics locally rather than cloud-offloading — the 13 TOPS NPU makes that viable without adding a separate inference appliance to the rack.
