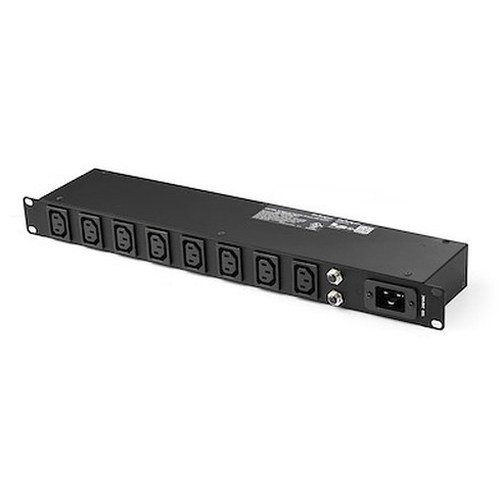

StarTech PDU08C13H 1U Horizontal 8-Outlet Rack Mount PDU

Overview

The StarTech PDU08C13H is a 1U horizontal rack-mount power distribution unit built for data center racks, server rooms, and security equipment cabinets that need clean, protected AC distribution without consuming more than a single rack unit. Rated for 20A input via an IEC C20 connector, it distributes power across eight IEC C13 outlets on a steel chassis — the kind of no-frills, purpose-built PDU that integrators rely on when populating a rack with PoE switches, NVRs, and edge servers. At 3.4 lbs, it installs without drama and occupies the same footprint as a 19-inch standard rack unit.

Key Features

• 8x IEC C13 Outlets: Eight C13 sockets give you enough ports to power a full row of 1U appliances — NVRs, managed switches, servers, or KVM units — without stacking PDUs or running extension cords inside the cabinet. Each outlet accepts standard C14 power plugs, which covers virtually every rack-mount device in a commercial installation.
• 20A / IEC C20 Input: The single-phase IEC C20 input supports up to 20A, which means you can connect directly to a 20A dedicated circuit without a plug adapter — something 15A PDUs cannot do. At 120V, that translates to 1920 VA of usable capacity; at 240V, capacity climbs to 4800 VA, making this equally practical in international deployments.
• 3600 Joule Surge Protection: Built-in surge suppression rated at 3600 joules absorbs transient voltage spikes before they reach connected equipment. For a rack containing an NVR with active recordings or a managed switch running critical VLANs, that protection is worth having — a single power event can corrupt drives or damage NICs in unprotected racks.
• Wide Voltage Range (110V–240V): Universal input from 110V to 240V means the PDU08C13H works on North American 120V circuits, European 230V installations, and everything in between. Integrators deploying equipment internationally or across mixed-voltage facilities can standardize on a single PDU model.
• 10 ft (3 m) Power Cord: The included 10-foot cord reaches the floor PDU or wall outlet from mid-rack without strain — long enough that you are not forced to position the PDU at the very bottom of a tall cabinet just to reach the nearest power source.
• Steel Construction, 1U Form Factor: The all-steel chassis sits in a standard 19-inch rack at 1.7 inches tall — exactly 1U. Steel matters here: plastic-chassis PDUs flex under cable weight and can loosen outlet connections over time. The 3.4 lb weight confirms a solid, non-hollow build without being difficult to handle during single-person rack installs.
• Operating Range -5°C to 45°C: The specified operating temperature covers typical data center and equipment room environments. The extended storage range (-25°C to 65°C) means units can be warehoused or shipped in unheated vehicles without pre-conditioning before deployment.

Integration and Compatibility

The PDU08C13H is compatible with any standard 19-inch EIA-310 rack. The IEC C13 outlets accept C14 plugs — the connector found on most rack-mount servers, network video recorders, managed PoE switches, and UPS units. Because the input is a C20 connector rated at 20A, pair this PDU with a UPS that has a C19 output (many APC and Eaton rack UPS models do) for a direct, no-adapter connection. The single-phase design is appropriate for standard commercial branch circuits; it is not intended for three-phase power environments. Review your branch circuit rating before loading the PDU to its 20A maximum — the 80% rule for continuous loads means the practical ceiling is 16A on a 20A circuit under NEC guidelines.

Frequently Asked Questions

Q: What is the maximum load the PDU08C13H can handle at 120V?

A: The PDU08C13H is rated for 1920 VA at 120V with a 20A maximum input current. Under NEC 80% continuous load guidelines, plan for a practical ceiling of approximately 1536W on a 20A branch circuit.

Q: What type of input connector does the PDU08C13H use?

A: It uses a single IEC C20 input connector. This pairs directly with C19 outputs found on most rack-mount UPS units, and it connects to a 20A wall outlet via a C20-to-NEMA 5-20P cord.

Q: How much surge protection does the PDU08C13H provide?

A: The PDU08C13H includes built-in surge protection rated at 3600 joules, which provides meaningful transient voltage absorption for connected rack equipment.

Q: Does the PDU08C13H work on 240V international circuits?

A: Yes. The input voltage range is 110V to 240V, and load capacity at 240V is 4800 VA, making it suitable for both North American and international rack deployments.

Q: How many rack units does the PDU08C13H occupy?

A: It is a 1U horizontal unit, measuring 1.7 inches tall and fitting a standard 19-inch rack without any adapter hardware.

Q: What is the warranty on the PDU08C13H?

A: StarTech covers the PDU08C13H with a 2-year manufacturer warranty.

Ted Perry

The spec that stands out to me on the PDU08C13H is the 3600-joule surge rating combined with a genuine 20A IEC C20 input — you are not shimming a 15A PDU into a 20A circuit with an adapter, and you are not relying on token surge suppression that clears on the first significant spike. This is the combination I look for when populating a security rack that will run unattended for months.

Technical Highlights:

• 3600J Surge Protection: Enough joule rating to handle repeated transient events without immediate clamping failure — meaningful in facilities where HVAC compressors or elevator motors share the building electrical system.
• 4800 VA at 240V: At 240V, the PDU08C13H nearly triples the usable capacity versus 120V operation — relevant for international deployments or US facilities running 208V three-phase infrastructure feeding single-phase branch circuits.
• 1U Steel Chassis at 3.4 lbs: The all-steel build at that weight tells you the outlets are properly anchored — cable sag from eight C13 connections will not torque a flimsy chassis and loosen the contacts over time.

Deployment Considerations:

• The 10-foot cord is long enough for most mid-rack positions, but verify your rack depth and UPS output location before ordering — a short cord on a deep cabinet can force awkward cable routing that creates strain on the C20 connector.
• At 20A input, the NEC 80% continuous load rule puts your real-world ceiling at 16A / 1536W at 120V — plan your device load totals before commissioning, especially if adding NVRs with spinning drives that surge at startup.

For a physical security rack running a mix of NVRs, managed PoE switches, and a rack-mount UPS in a commercial building equipment room, the PDU08C13H covers the power distribution side cleanly without requiring a metered or switched PDU at additional cost.
