Honeywell 4232CBM VISTA Automation Module

Overview

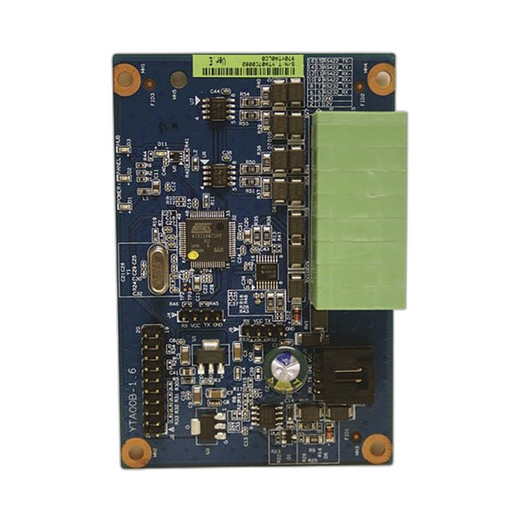

The 4232CBM is a control panel accessory that bridges VISTA® security systems to external automation hardware and software. It mounts directly inside the panel cabinet and provides dual serial interfaces—three-wire RS232 (up to 50 feet) and four-wire RS422 (up to 1,000 feet)—plus a standard four-wire ECP connection back to the panel. Use this when you need the security system to communicate with third-party building automation, home control systems, or custom integrations without tearing apart your cabinet layout.

Compatibility

Works with VISTA-21iP and VISTA-21iPSIA (firmware 3.13 or higher), VISTA-128BPT (all firmware levels), VISTA-250BPT (revision 10.3 or higher), VISTA-32FBPT, VISTA-128FBPT, and VISTA-250FBPT (all firmware levels). Also compatible with First Alert Professional equivalents: VISTA-15P, VISTA-15PSIA, VISTA-20P, and VISTA-20PSIA (firmware 9.1 or higher). The ECP home run is limited to 900 feet maximum on the supported panels.

Installation Notes

Mounts using included double-sided tape directly to the inside of the control panel cabinet—no drilling or fasteners required. RS232 connections use 24 AWG twisted pair wire and max out at 50 feet; RS422 can reach 1,000 feet with the same wire gauge. The module draws 50mA nominal (75mA maximum) from the panel's ECP bus at 8–12V. Operating temperature range is 32°F to 140°F (0°C to 60°C). Driver software is required and must be obtained separately from the third-party vendor you are integrating with. The package includes RS422 termination resistors (not required for all applications—check your integration specs). Four status LEDs on the module aid troubleshooting during commissioning.

What's in the Box

• 1x 4232CBM Connected Building Module
• 1x ECP cable
• 1x double-sided mounting tape
• 1x RS422 termination resistors set
