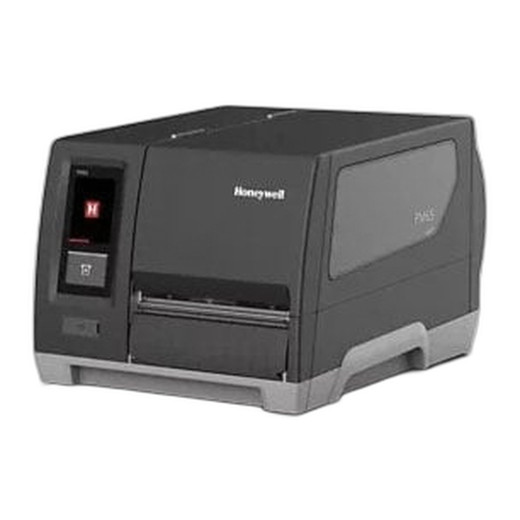

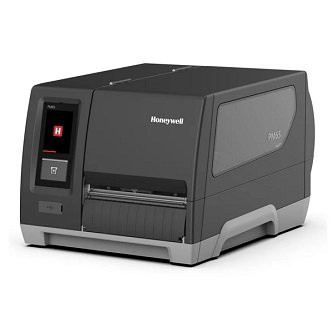

Honeywell PM65A11000030201 Industrial Label Printer 203 DPI
The Honeywell PM65A11000030201 is a production-grade thermal transfer label printer engineered for high-volume barcode and label printing in warehouse, manufacturing, and distribution environments. At 203 DPI resolution with print speeds up to 350 mm/s (14 inches per second), this printer balances edge sharpness with throughput—sharp enough for tight-tolerance barcodes that won't fail scan verification, yet fast enough to keep up with conveyor-line demands without creating bottlenecks.
Key Features
- 203 DPI resolution, 350 mm/s print speed: Higher resolution than 150 DPI alternatives ensures barcode readability even when label real estate is tight; faster than many 300 DPI units, so you don't sacrifice throughput for quality. Critical for scan-first operations where barcode failure triggers manual intervention.
- 167.4 mm (6.59 inch) maximum print width: Accommodates standard shipping labels, compliance tags, and multi-barcode asset labels without requiring custom media. Narrower than wide-format units, so this is the right choice if your label stock is pre-sized—not suitable for full-width carton labels on wider stock.
- 256 MB SDRAM, 512 MB Flash memory: Sufficient for storing multiple complex multi-barcode templates and high-density graphics without network round-trips. Prevents delays when templates switch rapidly during label changes.
- 6-inch color touch LCD display: Larger operator interface than many competitors reduces training time and on-floor configuration errors. Real-time print monitoring shows job queue and error status without requiring PC software access.
- Integrated real-time clock: Ensures accurate timestamp and date-based label data without relying on external time sync. Essential for pharmaceutical and food traceability where label timestamps are auditable and must match batch records.
- Fixed hanger mounting: Designed for inline integration into conveyor systems and production lines. Bolts directly to frame or gantry—verify mounting clearance during site assessment.
Connectivity & Printer Language Support
Multi-protocol connectivity via Gigabit Ethernet and Wi-Fi 6 (802.11 a/b/g/n/ac/ax) enables direct integration with warehouse management systems, ERP platforms, and cloud print-management solutions. Dual USB 2.0 Host ports allow connection of external devices such as barcode scanners and label hoppers without additional interface hardware. Supporting ZPL II, ZSim2, Direct Protocol, Fingerprint, and IPL emulations, the PM65A11000030201 provides drop-in compatibility with existing printer installations across multi-vendor environments—legacy applications transition without code modification, reducing migration costs and operator retraining.
Operating Environment & Physical Specifications
- Operating temperature 5–40°C (41–104°F): Suitable for climate-controlled warehouse and manufacturing floors. Below 5°C (e.g., cold-storage operations) will void specifications; above 40°C (e.g., direct sunlight or unventilated shipping areas) risks printhead degradation.
- Humidity tolerance 10–90% non-condensing: Standard warehouse humidity acceptable; condensation risk exists during temperature swings (sealed enclosures in very cold climates). Monitor during seasonal transitions.
- Dimensions 484 × 292 × 350 mm (19.1 × 11.5 × 13.8 inches), weight 13.7 kg (30.2 lbs): Compact footprint suitable for tight conveyor integration. Weight manageable for single-person mounting but requires two-person handling during installation to avoid back strain and equipment damage.
- US power cord included: 110–240V input assumed; verify outlet availability at installation site.
Ideal Deployment Scenarios
The PM65A excels in high-volume labeling: e-commerce order fulfillment (shipping label velocity), pharmaceutical and food traceability (timestamp compliance), retail distribution (multi-tier barcode requirements), manufacturing work-in-process (machine-to-machine label flow), and asset-tracking programs. Thermal transfer printing (ribbon-based) is the standard for supply-chain labels because print permanence outlasts direct-thermal alternatives in variable storage conditions.
Frequently Asked Questions
Q: Can the PM65A11000030201 print on 4×6 shipping labels directly?
A: Yes. At 167.4 mm width, it supports standard 4×6 label stock without oversizing or media waste. Verify your label design fits within that width before purchasing ribbon and stock.
Q: Does the PM65A11000030201 support wireless printing from my WMS?
A: Yes. Wi-Fi 6 connectivity enables direct integration with warehouse management systems over your facility network. Ethernet is also available for wired deployments. Ensure your WMS supports ZPL II or one of the other supported emulations (IPL, Fingerprint, ZSim2).
Q: What's the expected ribbon and printhead lifespan?
A: Evidence does not specify consumable life. Consult the manufacturer's maintenance documentation or contact your supplier for expected ribbon length (meters per spool) and printhead duty cycle before committing to volume estimates.
Q: Is the PM65A11000030201 suitable for cold-storage environments?
A: No. The operating range minimum is 5°C (41°F). Cold-storage warehouses below that temperature will violate printer specifications. This is a warehouse-floor or manufacturing-plant device, not a freezer application.
Q: Can I integrate the PM65A11000030201 into our existing Zebra-based print infrastructure?
A: Yes, if your application uses ZPL II. The PM65A supports ZPL II emulation, so legacy Zebra label formats will print without modification. Test a sample batch before full deployment to verify barcode rendering.
Q: What power supply do I need to install this printer?
A: The PM65A11000030201 ships with a US power cord. Confirm your facility outlet supports 110–240V AC input. No separate external power supply is required—internal conversion is integrated.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The PM65A11000030201 represents a mature, field-proven platform in the Honeywell industrial printing portfolio. Its combination of 350 mm/s print speed and 203 DPI resolution strikes an optimal balance for most enterprise label applications—faster than 300 DPI units, yet delivering superior edge definition compared to 150 DPI alternatives. The inclusion of Wi-Fi 6 and Bluetooth 5.1 signals Honeywell's commitment to modern wireless reliability, particularly valuable in facilities with dense RF environments.
Technical Highlights:
- 203 DPI thermal transfer at 350 mm/s: This speed-to-resolution ratio minimizes line-side bottlenecks. A 4×6 label at 203 DPI takes roughly 1.5 seconds to print—manageable within most conveyor pacing. Compare this to 300 DPI units (slower) or 150 DPI (less reliable barcodes); the PM65A strikes the practical middle ground.
- 256 MB SDRAM + 512 MB Flash: Sufficient for up to 200+ multi-barcode label templates without network latency. In high-velocity fulfillment, this means label changes happen in milliseconds, not seconds. Real-world: Amazon-scale warehouses routinely rotate 50+ label designs per hour without delays.
- Real-time clock with timestamp capability: Non-negotiable for pharmaceutical, food, and medical device traceability. Regulatory audits expect label timestamps to match batch-release records; without an integrated clock, you're dependent on external time sync and face audit risk if time drifts.
Deployment Considerations:
- The 5–40°C operating window excludes cold-storage and outdoor shipping-container environments. If your labels need to survive -10°C environments, this is not the printer. Plan thermal integration (heated enclosure) or use a cold-rated alternative if required.
- Fixed hanger mounting is frame-integrated, not modular. Repositioning mid-deployment requires structural rework. Finalize conveyor line layout before commissioning.
- Ribbon width and spool capacity are not specified in this datasheet. Order consumables through your supplier; mismatch between printer and ribbon media will cause jams or poor print quality.
The PM65A11000030201 is the go-to choice for high-velocity e-commerce fulfillment centers, multi-SKU pharmaceutical distribution, and automotive manufacturing where barcode reliability and label throughput are non-negotiable.
