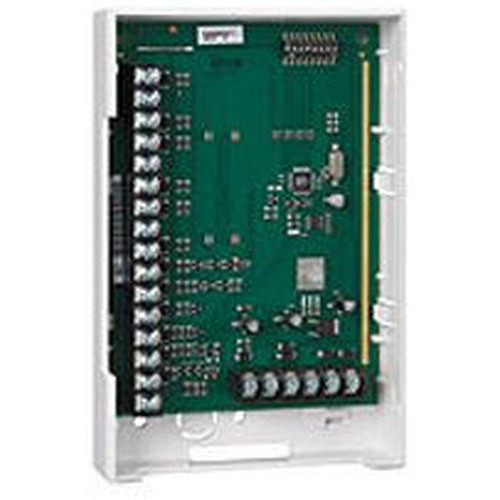

Honeywell 4208SN 8-Zone Expander Module
Overview
The Honeywell 4208SN is a hardwired 8-zone expander designed to extend the input capacity of RISK2-series control panels. This module adds monitored zones to an existing panel without requiring a panel upgrade or replacement — a significant cost advantage when a customer's site has outgrown the original panel's input count. The 4208SN integrates directly into the panel's expansion bus via wired terminal connection, making it suitable for new installations and retrofit deployments alike.
Key Features
- 8 Additional Zones: Expands RISK2 panel capacity by 8 monitored zones, allowing facilities to add door/window sensors, motion detectors, or environmental monitors without hardware replacement — cost-effective alternative to swapping the control panel.
- Wired Integration: Connects to the main RISK2 panel via hardwired terminal blocks. No wireless or network dependency means reliable, secure communication with no RF interference risk — critical for facilities with metal structures or dense wireless environments.
- RISK2 Compatibility: Purpose-built for Honeywell RISK2-series panels. Requires compatible firmware and proper terminal configuration; integrators must verify panel version before installation to avoid commissioning delays.
- Modular Architecture: Expander design lets integrators scale zone capacity incrementally as customer needs grow — avoids over-provisioning at initial install and reduces upfront capital spend.
- Standard Zone Monitoring: Each zone supports traditional hardwired sensor inputs (door contacts, motion detectors, glass breaks, environmental sensors). No IP or network connectivity on the expander itself — it functions as a pure input multiplier for the control panel.
- Integrator-Grade Installation: Terminal-based wiring and firmware configuration mean hands-on commissioning is required. Not suitable for end-user self-installation; requires trained security technician.
Integration & Compatibility
The 4208SN works exclusively with Honeywell RISK2 control panels. Before ordering, verify your RISK2 panel firmware supports zone expansion — older firmware revisions may not recognize the expander module. Wiring must follow Honeywell's terminal configuration diagrams; improper termination can result in intermittent zone faults or complete expander failure. The module requires no separate power supply; it draws power from the main panel via the hardwired connection. Once installed and commissioned, zones on the 4208SN report to the panel's monitoring logic identically to onboard panel zones.
Integrators expanding commercial security control panels should confirm terminal availability on the main panel before committing to the 4208SN. Some older RISK2 units have limited expansion ports; in those cases, a panel upgrade may be more practical than multiple expanders.
When to Choose a Different Approach
If the RISK2 panel is at or near end-of-life, or if the customer's site requires more than 16–24 total zones, evaluate a full panel replacement with higher native zone capacity. The labor cost of installing multiple expanders may approach or exceed the cost of a newer, larger-capacity panel. Similarly, if the site will eventually migrate to IP-based sensors or smart building integration, a panel upgrade to a model supporting network-connected devices will provide better long-term flexibility.
Frequently Asked Questions
Q: Can I stack multiple 4208SN expanders on a single RISK2 panel?
A: Yes, RISK2 panels support multiple expanders, but total zone count and available expansion ports vary by panel model. Consult your panel documentation or Honeywell technical support for the maximum number of 4208SN modules your specific panel can address.
Q: Does the 4208SN require separate power?
A: No. The expander draws power from the main RISK2 panel via the hardwired terminal connection. No auxiliary 12VDC supply or PoE is needed.
Q: What happens if a zone on the 4208SN opens (sensor triggered)?
A: The zone reports to the RISK2 panel just like a native panel zone. Panel logic applies the same reaction rules — alarm, delay, logging, notification — as programmed for that zone address.
Q: Can I install the 4208SN myself?
A: Installation requires proper terminal wiring, firmware configuration, and panel commissioning. This is a technician-level task. Improper wiring can corrupt zone data or cause panel instability. Use a trained integrator.
Q: Is the 4208SN suitable for retrofit into an existing monitored system?
A: Yes, if your facility currently has a RISK2 panel and needs more zones. However, installation does require panel access and a service window — coordinate with your monitoring center before scheduling work.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Honeywell 4208SN is a straightforward, no-surprises zone expander — which is exactly what you want from this type of module. If your customer's RISK2 panel is stable and you just need more monitored inputs without the cost and complexity of a full panel swap, the 4208SN delivers that. The 8-zone capacity is real-world useful for facilities adding a warehouse expansion, second floor, or new perimeter — you avoid the hundred-plus-hour integration tax of a panel replacement.
Technical Highlights:
- 8 Hardwired Zones: Adds 8 discrete monitored inputs to RISK2 control panels. Each zone behaves identically to native panel zones — same alarm logic, same reporting to the UL-listed monitoring center. No second-class zones or degraded response.
- Terminal-Based Integration: Wired directly to the main panel; no network gateway, no IP dependency, no wireless latency. In a warehouse with heavy RF noise or metal structures, this is a massive reliability win compared to wireless expanders.
- Zero Auxiliary Power: Draws current from the panel itself via the hardwired bus. You won't need to run a separate 12VDC supply line or fuel an additional UPS circuit — lowers installation labor and reduces single points of failure in the power distribution.
Deployment Considerations:
- Firmware Verification is Non-Negotiable: Not all RISK2 firmware revisions recognize zone expanders. Before you order, confirm your panel's firmware version with Honeywell or dig into the panel's service menus. Installing a 4208SN on incompatible firmware will give you ghost zones and false alarms — costly callbacks.
- Expansion Bus Saturation: RISK2 panels have a finite number of expansion ports. If the customer ever installs voice modules, RF receiver cards, or other plug-in modules, you may lose the physical slot for a second or third expander. Plan your zone expansion strategy upfront, or you'll end up upselling a panel upgrade mid-project.
- Wiring Distance Matters: Terminal blocks mean hardwired runs from the panel to the expander. In large facilities, you may need to run conduit across significant distances — account for that labor in your estimate. Twisted-pair cable shielding is recommended to avoid cross-talk in noisy electrical environments.
The 4208SN is a no-brainer retrofit for a stable, existing RISK2 installation where adding 8 zones now avoids a six-figure panel replacement later. It's less useful if your customer is already planning a major system overhaul or migration to IP-based inputs — in that scenario, swallow the upfront panel cost and future-proof the deployment.
