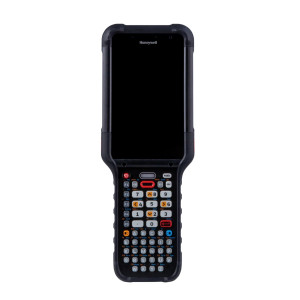

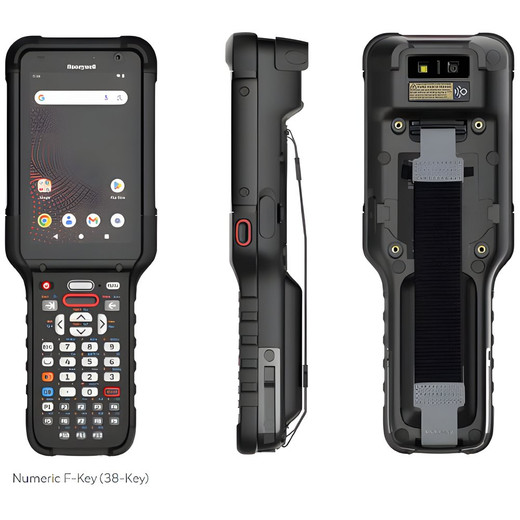

Honeywell CK67-X0N-5ES1B0G Handheld Mobile Computer
The Honeywell CK67-X0N-5ES1B0G is a rugged handheld mobile computer built for field operations that demand durability, processing power, and extended barcode capture range without mid-shift charging. If your team handles inventory, last-mile delivery, or warehouse operations in wet or high-impact environments, this device eliminates the scanning-distance compromises and device-replacement costs that plague consumer hardware.
Key Features
- WiFi 6E connectivity (802.11 a/b/g/n/ac/ax): Delivers roughly 3x the bandwidth and lower latency compared to WiFi 5 — meaningful when your team synchronizes high-volume inventory uploads or real-time location data in congested RF environments with dozens of devices on the same network.
- Qualcomm QCS4490 octa-core processor at 2.0 GHz with 6 GB RAM: Sustains fast barcode processing, multi-app workflows, and database queries without UI lag — critical when operators work back-to-back transactions in fast-paced warehouses or field routes.
- FlexRange XLR Imager for 1D/2D barcode capture: Scans barcodes from near-contact distance to 20+ meters without operator repositioning — eliminates wasted motion and scanning retries, especially on high-shelving and pallet-rack inventory.
- IP65/IP68 sealing with 2.4 m (8 ft) drop rating: Concrete floors, rain, dust, and incidental drops won't require device replacement. Total cost of ownership drops significantly in high-turnover environments where consumer devices need replacement every 12–18 months.
- 4.3-inch 800 x 480 display with Corning Gorilla Glass 7: Sunlight-readable screen resists scratches and impacts; non-glare performance in outdoor or dock operations. 800x480 resolution is adequate for barcode entry forms, pick lists, and map-based routing without excessive font scaling.
- 7000 mAh Li-Ion battery: Supports full 8–10 hour shift operations without mid-shift charging dock return — keeps operators on-route and reduces downtime in remote or distributed sites.
- 128 GB internal storage with microSD expansion: Holds offline transaction databases and maps for areas with poor or no connectivity; microSD support lets you swap cards for data security between users or sites.
- Bluetooth 5.2: Pairs reliably with external scanners, printers, and labels readers without RF interference common in older Bluetooth iterations.
- Android non-GMS operating system: Enterprise ROM control without Google Mobile Services dependencies — beneficial for deployments requiring offline-first architecture, custom app signing, or restricted app distribution.
- Operating temperature range -20°C to 50°C (-4°F to 122°F): Operates in cold storage, outdoor winter conditions, and sun-exposed outdoor environments without performance degradation or battery shutdown.
- Day/night imaging with audio support: Dual-mode capture and voice logging expand use cases beyond inventory tagging — useful for field incident documentation or hands-free note-taking during deliveries.
- Weight 516 g (18.2 oz) and dimensions 220 x 83 x 37 mm: Fits comfortably in chest pockets or belt holsters; light enough for all-shift handheld use without fatigue even during high-volume scanning.
When to Choose the CK67-X0N-5ES1B0G
Select this model if you operate in wet, dusty, or high-impact environments where standard mobile devices fail within 6–12 months. The extended barcode range (20+ meters) and 8-foot drop rating justify the investment where scanning speed and device lifespan directly reduce labor costs. WiFi 6E support becomes essential if your deployment spans buildings with dense AP density or overlapping SSID coverage.
For teams that require offline-first operation, custom ROM deployment, or air-gapped network isolation, the non-GMS Android implementation provides flexibility that GMS-dependent devices cannot match. If your workflows demand day/night documentation or hands-free audio logging, the built-in imaging and microphone support this requirement natively.
When to Choose a Different Model
If your environment remains climate-controlled (no extreme cold or heat exposure), if barcode distances rarely exceed 5 meters, or if your deployment timeline is under 2 years, a consumer-grade smartphone with a clip-on barcode reader may meet immediate needs at lower upfront cost. Likewise, if your IT infrastructure requires strict GMS integration (Google Play Services authentication, enterprise mobility management via standard MDM solutions), confirm non-GMS Android support with your MDM provider before committing.
Integration & Compatibility
The CK67-X0N-5ES1B0G integrates via standard WiFi and Bluetooth to existing warehouse management systems (WMS), enterprise resource planning (ERP), and field service platforms that support mobile HTTP/REST APIs. Non-GMS Android means you will not have automatic Google Play Store access — app distribution requires sideload, enterprise app management platforms, or custom app stores. Confirm your chosen third-party apps (inventory apps, navigation tools, communication clients) function without Play Services dependencies before deployment.
Frequently Asked Questions
Q: Does the CK67-X0N-5ES1B0G support standard Android apps from the Play Store?
A: The device runs Android (non-GMS), so Google Play Store is not available. Apps that require Google Mobile Services (authentication, maps, push notifications via Firebase) will not function. You will need to sideload apps or use enterprise app management solutions. Apps that use standard HTTP APIs or alternative services (OpenStreetMap, custom push solutions) work normally.
Q: What is the actual barcode scanning range?
A: The FlexRange XLR Imager captures 1D and 2D barcodes from near-contact to 20+ meters depending on barcode size, print quality, and lighting. For reference, standard consumer barcode readers typically max out at 1–3 meters, so the CK67 eliminates repositioning on high shelves or pallets.
Q: Can the CK67-X0N-5ES1B0G survive drops and splashes?
A: Yes. The device is IP65/IP68 sealed and rated for 2.4 m (8 ft) drops onto concrete. IP65 means dust ingress protection and direct rain resistance; IP68 adds brief submersion tolerance. Gorilla Glass 7 protects the screen from impact scratches and minor drops that would crack consumer glass.
Q: How long does the battery last on a single charge?
A: The 7000 mAh battery supports full-shift operation (8–10 hours) of typical warehouse or field service use. Runtime varies with WiFi/Bluetooth activity and screen brightness. Heavy processing or continuous scanning may reduce runtime; lighter administrative tasks extend it.
Q: Is WiFi 6E necessary for my deployment?
A: WiFi 6E provides real benefit in high-density RF environments (large warehouses with 50+ devices, urban multi-building sites, or areas with neighbor network interference). If your site has sparse AP coverage or few competing devices, WiFi 5 devices are adequate. WiFi 6E's lower latency also helps real-time inventory sync and location services, especially in congested radio bands.
Q: What operating system do I need to deploy apps to this device?
A: The CK67-X0N-5ES1B0G uses Android (non-GMS). Your IT team will manage app deployment via sideload, enterprise MDM platforms, or custom app stores rather than Play Store. Consult your MDM provider to confirm support for non-GMS Android before procurement.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Honeywell CK67-X0N-5ES1B0G targets warehouse automation and field service teams that absorb high device replacement costs due to damage, water ingress, or scanning-distance limitations. The combination of IP65/IP68 sealing, an 8-foot drop specification, and the FlexRange XLR extended-range barcode engine positions this device as a genuine total-cost-of-ownership play — not just a rugged phone wrapper. If your team operates in wet docks, outdoor yards, or high-shelf environments where consumer devices fail within 12 months, this device pays for itself through durability alone.
Technical Highlights:
- FlexRange XLR Imager (20+ meter range): Eliminates the scanning-distance bottleneck common to consumer barcode readers. In a warehouse with floor-to-ceiling racking, operators can capture pallet barcodes from ground level without repositioning or climbing, reducing cycle time and injury risk.
- WiFi 6E (802.11ax): 3x bandwidth improvement and lower latency versus WiFi 5 matter when you deploy 50+ devices across a single warehouse or when your inventory sync jobs hit the network simultaneously. Real-world benefit in high-density sites; less critical in sparse coverage.
- 7000 mAh battery plus 128 GB onboard storage: Supports full 8–10 hour shifts without dock return and holds offline transaction databases for remote or low-connectivity routes. Eliminates the charging-station logistics that plague consumer-grade deployments.
- IP65/IP68 + 2.4 m drop rating: Concrete-floor impact and rain exposure won't trigger device replacement. Device lifespan of 4–5 years versus 1–2 years for consumer hardware directly cuts per-unit cost of ownership by 50–60%.
Deployment Considerations:
- Non-GMS Android is both a feature and a constraint: Enterprise ROM control and offline-first architecture are genuine advantages for regulated or air-gapped deployments. However, your MDM solution and third-party apps must support non-GMS Android. Sideload logistics and custom app stores add operational overhead — factor this into your rollout plan.
- WiFi 6E hardware is forward-looking but may be over-spec today: If your site runs WiFi 5 infrastructure and has no plans for dense multi-building rollout, the WiFi 6E capability delivers minimal near-term value. Don't pay for it if your infrastructure doesn't yet support it.
- Battery runtime varies with workload: Heavy continuous scanning or WiFi uploads (e.g., real-time synchronization of large images or video clips) will drain the 7000 mAh battery faster than light transactional work. Design your sync strategy (batch uploads at shift end vs. real-time streaming) to match battery endurance targets.
Deploy the CK67-X0N-5ES1B0G in high-impact warehouse or field service operations where device durability directly reduces replacement costs and scanning range unlocks efficiency gains. This is the right choice if your current fleet replacement cycle is under 18 months, if operators work outdoors or near water, or if barcode distances exceed 5 meters. Avoid this model if your infrastructure is GMS-dependent, your site uses legacy WiFi 5, and your rollout timeline is under 2 years — the upfront cost and deployment overhead may not justify the durability gains in a short-term scenario.
