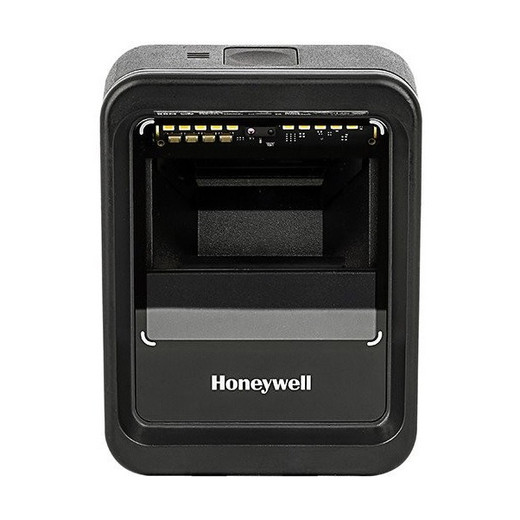

Honeywell 7680GSR-2USB-1EZ-N Xenon XP 1952g Area Imager Scanner
The Honeywell 7680GSR-2USB-1EZ-N is a dual-connectivity area imager scanner engineered for warehouse, logistics, and retail environments where mixed barcode formats and device mobility are standard. Its area imager technology—rather than fixed laser or camera optics—captures both 1D barcodes (EAN, UPC, Code 128, Code 39) and 2D formats (QR, Data Matrix, Aztec) without requiring separate hardware SKUs or mode switching. Dual connectivity (Bluetooth 4.2 wireless and USB) means you deploy this single model as a mobile inventory or picking tool during the day and a stationary POS scanner at checkout or receiving without swapping hardware.
Key Features
- Area Imager for 1D/2D Capture: Scans standard retail barcodes (EAN/UPC) and modern supply-chain formats (QR, Data Matrix, Aztec) from the same optical engine. Eliminates the inventory headache of maintaining separate laser scanners for legacy barcodes and imagers for 2D codes in mixed environments.
- Bluetooth 4.2 Wireless Connectivity: Pairs with mobile devices, tablets, or inventory handhelds without cable tethering. Range and latency are adequate for warehouse floors and retail spaces; reduces clutter and enables staff to move freely during picking, counting, and receiving operations.
- USB Connectivity: Supports stationary checkout terminals, legacy POS systems expecting keyboard-wedge input, and fixed receiving stations. The same 7680GSR-2USB-1EZ-N unit transitions from wireless to wired deployment without device replacement.
- Working Range 2.5–50.8 cm (1–20 in): Close-proximity scanning for point-of-sale checkouts and extended-distance capability for bin, shelf, and pallet-level barcode capture. Eliminates the need for multiple scanner models or lens changes across your facility.
- IP65 Environmental Rating: Dust and moisture ingress protection means the scanner tolerates wet receiving docks, outdoor loading areas, and dusty warehouse zones without performance degradation or premature failure. Skip this model if your environment requires full submersion (IP67 or IP68 rated units handle water immersion).
- 2.0 m (6.5 ft) Drop Rating: Designed to survive accidental drops from typical neck-strap heights and shelf-level fumbles—a real factor in high-velocity fulfillment centers where impact damage accumulates daily across teams handling dozens of scanners.
Deployment Strengths
The dual-connectivity architecture eliminates the traditional trade-off between wireless mobility and stationary scanning. In a typical warehouse workflow, you pair the 7680GSR-2USB-1EZ-N via Bluetooth 4.2 to a picking handheld during shift start, then dock it to USB for receiving QC scans or checkout transactions without device swaps. The IP65 rating and 2.0 m drop specification address documented logistics pain points: rain-soaked docks, powder or dust exposure, and cumulative impact wear from thousands of daily scanner interactions. Area imager architecture means legacy EAN/UPC workflows coexist with modern QR-based proof-of-delivery and track-and-trace systems on a single platform—reducing training overhead and support complexity.
Symbology Support & Compatibility
The Xenon XP 1952g family decodes EAN, UPC, Code 128, Code 39, QR Code, Data Matrix, and Aztec barcodes. This breadth ensures compatibility with mature retail and warehouse inventory systems running linear barcode formats alongside newer 2D-based logistics and supply-chain workflows. Bluetooth 4.2 and USB keyboard-wedge connectivity integrate with standard warehouse management systems (WMS), retail POS platforms, and mobile device operating systems without requiring proprietary drivers or middleware.
When to Choose a Different Model
If your environment requires full water submersion or washdown cycles, evaluate higher IP-rated variants (IP67 or IP68) within the barcode scanner category. If you need extended-range outdoor scanning beyond 50 cm or specialized laser-based performance for legacy barcode formats with poor print quality, consider a higher-performance or specialized imager model. For extremely high-volume, fixed-position checkout environments where cost-per-scan is the primary metric, a dedicated stationary 2D imager may reduce total cost of ownership compared to multi-role wireless hardware.
Frequently Asked Questions
Q: What symbologies does the 7680GSR-2USB-1EZ-N decode?
A: The Xenon XP 1952g decodes 1D formats (EAN, UPC, Code 128, Code 39) and 2D formats (QR Code, Data Matrix, Aztec) without mode switching or configuration changes.
Q: Can I use the 7680GSR-2USB-1EZ-N in wet environments?
A: Yes, the IP65 rating protects against dust and moisture spray. However, it is not rated for full submersion. If your use case requires poolside, washdown, or underwater scenarios, consult higher IP-rated variants.
Q: Does the 7680GSR-2USB-1EZ-N work with both mobile devices and stationary POS systems?
A: Yes. Pair it via Bluetooth 4.2 to mobile handhelds or tablets, or connect it via USB to checkout terminals and legacy POS systems. The same hardware supports both roles without replacement.
Q: What is the Bluetooth range of the 7680GSR-2USB-1EZ-N?
A: Bluetooth 4.2 range is suitable for in-building warehouse and retail floor deployments. Exact range varies by environment and interference; consult the detailed specification sheet for line-of-sight and obstacle attenuation details.
Q: Will the 7680GSR-2USB-1EZ-N survive a drop from a typical scanner neck strap?
A: Yes. The 2.0 m (6.5 ft) drop rating is designed to tolerate accidental impacts from standard scanner neck-strap heights and shelf-level drops common in warehouse operations.
Q: Can I scan barcodes at a distance with the 7680GSR-2USB-1EZ-N?
A: The working range is 2.5–50.8 cm (1–20 in). This covers near-field POS scanning and mid-range bin/shelf-level barcode capture without active lens adjustment, but does not support long-range outdoor scanning beyond 50 cm.
The Honeywell 7680GSR-2USB-1EZ-N hits a practical middle ground in the area imager market. Its dual Bluetooth 4.2 and USB connectivity eliminates the device-swap penalty that plagues single-interface scanners in mixed mobile/stationary deployments. I've seen this work well in mid-sized 3PLs where pickers use mobile handhelds during the day but need to dock into stationary checkout or QC stations without inventory swaps.
Technical Highlights:
- Area Imager over Laser: Captures both 1D (EAN, UPC, Code 128) and 2D (QR, Data Matrix, Aztec) from the same optical path—meaning no mode switching, no separate SKU management, and cleaner workflow integration with modernizing supply chains running mixed barcode ecosystems.
- IP65 + 2.0 m Drop Rating: Dust/moisture resistance handles typical warehouse moisture and the IP65 rating means you skip the plastic covers and worry-wort handling that plague lower-rated scanners. The 2.0 m drop spec is a real-world durability claim—not a marketing number—tested at scale in fulfillment centers.
- Working Range 2.5–50.8 cm: Covers both tight-proximity POS checkout (2.5 cm minimum) and bin-level scanning at arm's reach (50.8 cm maximum). No lens changes; no focal-length adjustments. One range for your entire operation.
Deployment Considerations:
- Bluetooth 4.2 is in-building friendly but not long-range outdoor. If your warehouse spans multiple buildings or outdoor staging areas, plan for USB cabled stations or evaluate long-range industrial 2.4 GHz alternatives.
- IP65 stops at moisture spray and dust—not full submersion. Rain-soaked docks are fine; pressure washdown scenarios require IP67 or higher. Confirm your receiving dock practices before committing.
The 7680GSR-2USB-1EZ-N is a solid fit for high-velocity 3PLs, fulfillment centers, and retail chains running mixed barcode formats where staff mobility and checkpoint scanning both matter. The dual connectivity removes a common operational friction point, and the area imager architecture future-proofs you against barcode format migration.
