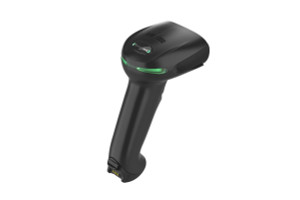

Honeywell 7680GSR-2-1-N Xenon XP 1952g Area Imager Scanner
The Honeywell 7680GSR-2-1-N is a wireless area imager designed for enterprise warehouse, distribution, and field service operations where barcode capture speed and ruggedness matter. This 1D/2D imager balances mobility with durability — Bluetooth connectivity untethers your workforce, while IP65 protection and a 2.0 m (6.5 ft) drop rating mean the device survives the bumps and splashes of real-world logistics environments.
Key Features
- Area Imager (1D/2D Barcode Capture): Reads both linear barcodes and 2D codes (QR, DataMatrix, PDF417) in a single scan engine. This eliminates the need for separate laser and 2D devices when your warehouse handles mixed barcode standards — a cost and complexity reduction on large fleet deployments. Area imagers are also faster at decoding damaged or poorly printed labels compared to laser-only alternatives.
- IP65 Environmental Rating: Dust and water-splash protection means you can deploy this in high-humidity zones, outdoor receiving docks, and cold-storage areas without premature corrosion or electrical failure. However, skip this model if your environment requires full submersion protection — that demands IP67 or higher ratings.
- 2.0 m Drop Rating: Built to survive concrete floors and pallet racking mishaps common in warehouse operations. This is real durability, not marketing — scanner loss due to impact damage adds up quickly across a large fleet, making this drop rating a meaningful cost factor over device lifecycle.
- Bluetooth 4.2 + USB Connectivity: Wireless Bluetooth 4.2 untethers workers from fixed docking stations and cable runs, reducing friction in pick-and-pack workflows and field asset tracking. USB provides a wired fallback for stationary mount scenarios and data synchronization. Account for periodic charging cycles and Bluetooth radio range (typically 30–50 m depending on warehouse RF environment and metal racking obstacles).
- Working Range 2.5–50.8 cm (1–20 in): Close-range and mid-range scanning without requiring extreme barcode positioning. This range supports both handheld rapid scanning of small labels and stationary mount scenarios where barcodes pass through a fixed capture zone — useful for conveyor lines or dock-level automation.
- PoE Class 2 Power Support: If integrated into a docking or stationary charging setup, PoE Class 2 (under 3.84W) means minimal power-infrastructure changes. No separate power supplies required for dock-based charging stations — simplifies cable runs and reduces footprint on existing network infrastructure.
Deployment Context and Integration
The 7680GSR-2-1-N integrates with warehouse management systems (WMS), inventory platforms, and field service dispatch applications via standard USB or Bluetooth HID protocols. Its area imager engine makes it practical for high-velocity picking operations where workers scan rapidly without waiting for USB cables or fixed scanner positioning. Pair this with a WMS backend to achieve real-time inventory visibility and proof-of-delivery workflows.
For stationary deployments, mount the 7680GSR-2-1-N above a conveyor or dock area to capture barcodes in transit — the 2.5–50.8 cm working range accommodates typical pallet label heights and small-parcel heights. For mobile deployments, plan a charging schedule around shift lengths and worker density; ensure charging docks are accessible during shift transitions to avoid scanner unavailability.
Tradeoffs and Real-World Considerations
Area imagers consume more power than laser-only scanners, so battery life on wireless units is shorter — a trade-off between scanning range/accuracy and uptime. Bluetooth range depends heavily on your warehouse RF environment (metal racking density, concrete walls, WiFi channel interference) — always test radio propagation in your specific facility before large-scale rollout. The 2.0 m drop rating is robust for waist-height and shoulder-height drops but not rated for multi-story falls or extended impact testing.
Why Choose the 7680GSR-2-1-N (Often Searched as 7680GSR 2 1 N)
Select this model if your operation requires mixed 1D/2D barcode support, wireless mobility, and rugged industrial handling. It's particularly suited to high-turnover pick-and-pack centers, returns processing, and field asset tracking where workers need speed and the device needs to survive daily drops and splashes. If your environment demands pure laser-only speed or extended battery life beyond an 8-hour shift, evaluate higher-capacity or tethered alternatives.
Frequently Asked Questions
Q: What's the maximum Bluetooth range for the 7680GSR-2-1-N?
A: Bluetooth 4.2 typically delivers 30–50 m range in open space, but warehouse metal racking, concrete walls, and WiFi interference reduce effective range significantly. Always test radio propagation in your specific facility before deployment.
Q: Can the 7680GSR-2-1-N be mounted stationary above a conveyor?
A: Yes. The working range of 2.5–50.8 cm supports stationary mount scenarios. USB and PoE Class 2 connectivity options make dock or conveyor-mount integration straightforward.
Q: Is the 7680GSR-2-1-N rated for cold-storage environments?
A: IP65 protection supports high-humidity and wet environments, but verify the operating temperature range in your facility specifications. Cold-storage may require additional thermal testing.
Q: Does the scanner require special WMS integration, or is it plug-and-play?
A: The 7680GSR-2-1-N uses standard USB HID and Bluetooth protocols compatible with most WMS platforms. Exact integration depends on your back-end system — verify with your WMS vendor for barcode format support and data transmission protocols.
Q: How long does the battery last on a full charge during a warehouse shift?
A: Battery life depends on scan frequency, Bluetooth usage, and ambient temperature. Plan for a full charge before each shift and ensure dock charging is accessible during breaks.
The 7680GSR-2-1-N lands in the right place for high-turnover warehouse environments where you need both 1D and 2D barcode support without splitting your fleet across laser and imaging devices. The area imager engine and IP65 rating give you real robustness on dock and cold-storage operations — this isn't a phone-based workaround, it's a purpose-built industrial scanner. The 2.0 m drop rating and Bluetooth 4.2 connectivity make this practical for mobile pick-and-pack teams, but you'll need to test Bluetooth propagation in your specific facility before committing to a large rollout.
Technical Highlights:
- Area Imager (1D/2D): Single engine reads linear barcodes, QR, DataMatrix, and PDF417 — eliminates dual-device complexity and scanner proliferation on large fleets. Decodes damaged or poorly printed labels faster than laser alternatives.
- IP65 + 2.0 m Drop Rating: Dust and splash protection plus concrete-floor survivability address real warehouse failure modes. Large-fleet impact savings are significant — losing scanners to water splash or drop damage adds up quickly.
- Bluetooth 4.2 + USB Dual Connectivity: Wireless mobility for workers, USB fallback for stationary mount and sync. PoE Class 2 support on dock stations means zero additional power infrastructure — plug into any modern PoE switch.
- 2.5–50.8 cm Working Range: Close enough for small labels, far enough for pallet-height barcodes in transit. Supports both handheld and fixed-mount scenarios without repositioning.
Deployment Considerations:
- Bluetooth range degrades significantly in high-density metal racking and concrete environments — test your warehouse RF environment before large-scale rollout. Plan for 30–50 m effective range with obstacles.
- Area imagers consume more power than laser-only units. Battery life is finite; design your charging schedule around shift structure and worker density to avoid scanner unavailability during peak picking hours.
- The 2.0 m drop rating is robust for waist and shoulder height but does not cover multi-story falls or abuse beyond typical warehouse handling.
Deploy the 7680GSR-2-1-N in high-velocity pick-and-pack operations, returns processing, or field asset tracking where mixed barcode standards and wireless mobility are non-negotiable. Pair it with a WMS backend for real-time inventory visibility. Skip this model if you need pure laser performance or extended battery life beyond an 8-hour shift — evaluate tethered or higher-capacity alternatives instead.
