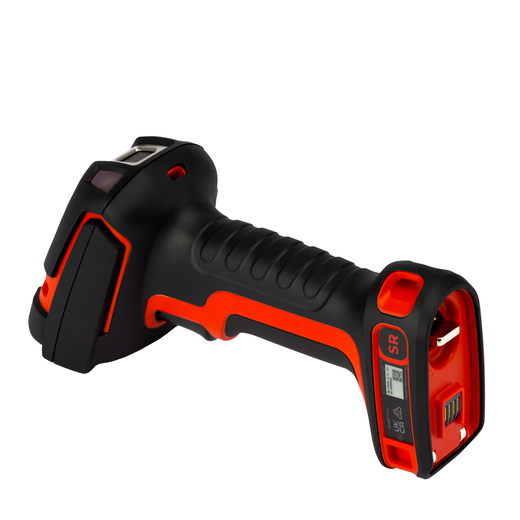

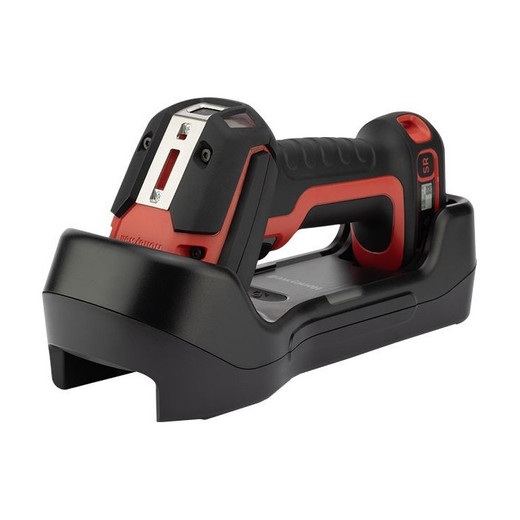

Honeywell 2105ISR-3-CLN Xenon XP 1952g Area Imager Scanner
The Honeywell 2105ISR-3-CLN is a rugged, enterprise-grade area imager scanner built for high-volume 1D and 2D barcode capture in retail, warehouse, and field service operations. With IP65 ingress protection and a 2.0 m drop rating, this scanner survives the physical punishment of industrial environments—spills, dust, and impacts won't compromise read performance. Wireless Bluetooth 4.2 connectivity eliminates cable friction during mobile scanning operations, though USB wired deployment remains available for fixed-position checkouts or docking stations.
Key Features
- Area Imager (1D/2D) Optical Engine: Captures both linear and matrix barcodes without mode-switching—meaningful in fast-paced retail and warehouse settings where you process EAN, UPC, Code 128, QR Code, and Data Matrix formats from the same device. No time lost fumbling with scan-mode buttons.
- IP65 Environmental Rating: Dust and water-resistant to the point of sustained spray exposure. Deploy this scanner in receiving docks, outdoor shipping areas, or wet environments without fear of premature failure. Skip this if you need full submersion protection (IP67 or higher).
- 2.0 m Drop Rating (6.5 ft): Concrete floors and careless handlers won't kill your device. This durability spec directly reduces replacement costs and scanner downtime in high-traffic warehouse and retail operations where equipment takes abuse.
- Bluetooth 4.2 Wireless: Untethered scanning enables mobility across your warehouse floor or retail aisle without the deployment cost of fixed USB cables or docking infrastructure. Reduces setup time when reconfiguring workstations or deploying temporary scanning stations during peak seasons.
- Working Range 2.5–50.8 cm (1–20 in): Covers close-proximity checkout scanning and mid-distance inventory pulls from shelving. This range handles most retail POS and warehouse picking scenarios without requiring specialty lenses or fixed-mount readers.
- Multi-Symbology Support: EAN, UPC, Code 128, QR Code, and Data Matrix compatibility ensures compatibility across different supply chain partners and barcode standards without reprogramming. One device, multiple supply chain environments.
- High First-Pass Read Accuracy: Minimizes re-scans in high-volume operations—repeated scan attempts slow throughput and frustrate staff. Area imager technology captures barcode data reliably across variable lighting and label damage.
- USB and Bluetooth Connectivity Options: Choose wireless mobility for handheld checkout or field use, or wire the scanner into fixed POS terminals and inventory management stations where cable permanence is preferred.
Integration & Deployment
The 2105ISR-3-CLN integrates with standard point-of-sale systems, mobile inventory applications, and warehouse management platforms via USB or Bluetooth. Retailers deploying this scanner in checkout lanes benefit from the wireless option to reduce cable clutter, while warehouse operations using fixed docking stations can leverage USB connectivity for permanent integration. The combination of durability and wireless capability makes this model well-suited to mixed environments where some scanners roam the floor and others remain tethered to fixed workstations.
When to Choose a Different Model
If your operation requires ultra-long-range scanning (beyond 50 cm) or needs to read heavily damaged or degraded barcodes, consider a higher-performance area imager in the same family. If you operate in food or chemical environments requiring washdown-level protection or need IP67 submersion ratings, those requirements fall outside the 2105ISR-3-CLN's IP65 envelope—consult with your supplier on specialized variants. For cordless-only deployments where wired fallback is not an option, verify that your warehouse management system supports Bluetooth pairing and device management at scale.
Frequently Asked Questions
Q: Does the 2105ISR-3-CLN support both USB and Bluetooth at the same time?
A: No. The scanner connects via USB or Bluetooth depending on deployment mode. You cannot use both simultaneously. Select the connectivity type that fits your workstation setup.
Q: What symbologies does the Xenon XP 1952g decode?
A: The 2105ISR-3-CLN supports 1D formats (EAN, UPC, Code 128, Code 39) and 2D formats (QR Code, Data Matrix, PDF417). Consult the datasheet for the full list of supported symbologies and any decoding configuration options.
Q: Can I drop the 2105ISR-3-CLN from shelving or a ladder?
A: The 2.0 m (6.5 ft) drop rating is designed for that abuse. Concrete and impact-resistant surfaces are expected in warehouse environments. However, repeated drops may eventually cause wear; the rating reflects a device built to survive typical mishandling, not unlimited drops.
Q: Is the 2105ISR-3-CLN suitable for outdoor shipping and receiving?
A: Yes. The IP65 rating handles dust and spray. However, if your receiving dock experiences standing water, high-pressure washdown, or direct rain immersion, you may want to review the specifics of your environment against IP65 limits—submersion requires IP67 or higher.
Q: What is the battery life on the Bluetooth model?
A: Battery runtime is not detailed in the core specifications provided. Contact the manufacturer or your supplier for battery capacity and estimated usage hours on the wireless variant.
Q: Does the 2105ISR-3-CLN work with standard mobile devices or only with specific hardware?
A: Bluetooth 4.2 support enables pairing with standard mobile devices, tablets, and mobile operating systems. Verify compatibility with your specific mobile OS and warehouse management software before large-scale deployment.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Honeywell 2105ISR-3-CLN is a straightforward choice for operations that need a durable, wireless-enabled area imager without premium pricing. The combination of IP65 protection and a 2.0 m drop rating makes it practical for rough-and-tumble warehouse and retail environments where scanner durability directly impacts operational continuity and labor costs. Bluetooth 4.2 connectivity reduces deployment friction compared to USB-only devices, though wired options remain available for fixed installations where mobility isn't a requirement.
Technical Highlights:
- 2.0 m Drop Rating: Equates to concrete-floor durability in high-traffic warehouses. One less device to replace after a careless handler drops it—meaningful cost avoidance across a fleet of 20+ scanners.
- IP65 Environmental Protection: Handles dust and spray exposure in receiving docks and outdoor shipping areas without special housings or protective covers. Removes the need for expensive ruggedized cases in wet or dusty environments.
- Working Range 2.5–50.8 cm: Covers both point-of-sale checkout (close proximity) and mid-distance warehouse picking scenarios. Single device covers multiple use cases without specialty lens swaps.
- Area Imager 1D/2D Decoding: Processes both linear barcodes (EAN, UPC, Code 128) and matrix codes (QR, Data Matrix) from the same optical engine. No mode-switching delays in fast-paced operations.
Deployment Considerations:
- Verify Bluetooth pairing stability across your warehouse management system at scale—wireless devices introduce potential connection loss that fixed USB scanners do not. Test with your specific WMS software and mobile OS before rollout.
- IP65 is robust for most retail and warehouse environments, but it is not submersion-rated. If your receiving area experiences standing water, floor-level spray washdown, or seasonal flooding, IP65 protection has limits.
- Battery life on the Bluetooth variant is not specified in the core documentation. Request runtime details from the manufacturer before committing to wireless-only deployments across a large facility.
Position the 2105ISR-3-CLN for warehouse receiving, inventory picking, and retail checkout operations where durability and wireless mobility justify the model choice. The 2.0 m drop rating and IP65 protection deliver real operational resilience in high-volume, high-abuse scanning environments.
