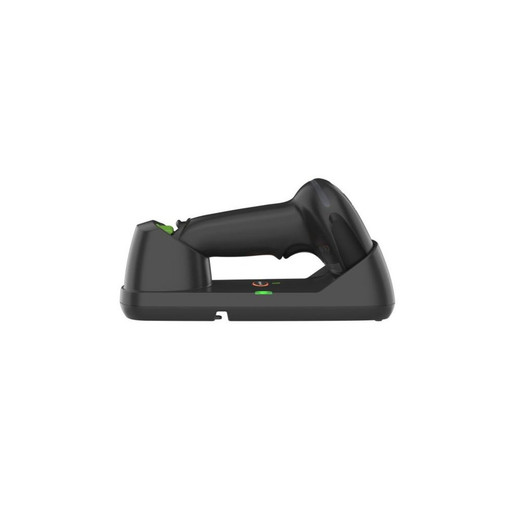

Honeywell 2100IXR-3USBN Area Imager Barcode Scanner
The Honeywell 2100IXR-3USBN is a rugged, dual-mode barcode scanner built for warehouse, retail, and field service environments where operational flexibility and environmental durability matter. This area imager delivers 1D and 2D barcode capture across a working range of 2.5 to 50.8 cm (1 to 20 inches), supported by Bluetooth 4.2 wireless connectivity and an optional USB wired mode for fixed-station integration. The IP65 rating and 2.0 m (6.5 ft) drop tolerance position it as a purpose-built tool for high-throughput scanning in less-than-perfect conditions.
Key Features
- Area Imager Engine (1D/2D): Captures standard and high-density barcodes without moving parts — eliminates the mechanical wear associated with laser scanners, reducing service calls and downtime over the scanner's operational life.
- IP65 Environmental Protection: Dust and moisture won't degrade performance in warehouse aisles, manufacturing floors, or outdoor receiving areas. Not rated for submersion; IP67 scanners are required if washdown or full water immersion is part of your workflow.
- Bluetooth 4.2 Wireless: Enables mobility without cable tethering — operators can move freely across picking aisles or between shelves without tripping hazards or constraint. Pairs with tablets, mobile computers, and enterprise systems.
- Extended Working Range (2.5–50.8 cm): Supports both close checkout scanning and longer-distance bin-picking or pallet-level operations from a single device, reducing the need for multiple SKUs in your fleet.
- 2.0 m (6.5 ft) Drop Rating: Designed to survive accidental drops typical in warehouse and field service — repeated drops can degrade optical calibration, so impact-resistant cases remain advisable for intensive use.
- Multi-Symbology Support: Decodes EAN, UPC, Code 128, QR Code, Data Matrix, and other standard formats — covers both legacy 1D systems and modern 2D requirements without device swaps.
- Dual Connectivity (Bluetooth + USB): Wireless for mobile deployment; USB option for integration with fixed POS terminals, label verification stations, or legacy serial/USB infrastructure without additional adapters.
Deployment Fit
Choose the 2100IXR-3USBN when your operation requires a single handheld scanner to handle both close-range and extended-distance scanning across diverse barcode types. Wireless mobility eliminates cable management overhead in dynamic warehouse and retail environments. The IP65 rating makes sense if scanning occurs near water, dust, or chemical exposure — but if your facility is climate-controlled indoors, a less rugged model may reduce cost without sacrificing performance.
The area imager architecture is ideal for organizations transitioning from 1D-only systems to 2D (QR, Data Matrix) without redeploying hardware. Bluetooth 4.2 pairing is straightforward with modern mobile computers and tablets, though integration with older serial-based systems requires a wireless receiver or gateway. The USB fallback ensures backward compatibility with existing infrastructure.
When to Choose a Different Model
If your operation is entirely stationary (checkout only, fixed verification station), a wired-only USB scanner may offer lower cost. If you require submersion-rated protection (washdown environments), specify an IP67-rated scanner. For ultra-high-density 2D applications (small parcel labels, pharmaceutical tracking), verify read-performance specs against specific label density before committing to fleet deployment.
Frequently Asked Questions
Q: Does the 2100IXR-3USBN support Data Matrix codes?
A: Yes. The area imager engine decodes Data Matrix along with QR, EAN, UPC, Code 128, and other standard symbologies. Multi-symbology support is built in — no configuration required beyond basic pairing to a host device.
Q: Can I use this scanner in a wet or washdown environment?
A: The IP65 rating handles splashing and dust, but not full water immersion or high-pressure washdown. If your workflow requires regular hose-down or wet conditions, select an IP67-rated alternative.
Q: What's the battery life on the 2100IXR-3USBN?
A: Battery runtime is not specified in available documentation. Contact the manufacturer or your authorized reseller for detailed battery capacity and estimated usage hours per charge.
Q: Will the 2100IXR-3USBN work with my existing Bluetooth mobile computer?
A: Bluetooth 4.2 is standard on modern mobile computers and tablets. Pairing is standard Bluetooth HID (Human Interface Device) protocol. Verify compatibility with your device's Bluetooth version and OS; older devices may have limited BLE support.
Q: Is USB integration straightforward for existing POS systems?
A: USB connectivity uses standard HID keyboard emulation — the scanner appears as an input device to POS terminals and checkout systems. No additional drivers are typically required for legacy USB serial interfaces.
Q: What's the warranty coverage on the 2100IXR-3USBN?
A: Warranty details are not included in available product specifications. Consult the manufacturer or your authorized reseller for standard coverage terms and optional extended-service options.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The 2100IXR-3USBN hits a genuine sweet spot for mixed-use scanning environments. Its area imager architecture eliminates the moving parts (motors, rotating mirrors) that plague laser scanners over time — you avoid the creeping maintenance costs and calibration drift that accumulate in high-volume operations. Paired with the IP65 rating and Bluetooth 4.2, this device bridges the gap between warehouse mobility and retail fixture compatibility without forcing a fleet split.
Technical Highlights:
- Area Imager (no moving parts): Reduces maintenance cycles compared to laser-based scanners; environmental seals remain more stable over thousands of reads, translating to lower per-unit cost of ownership across large deployments.
- IP65 + 2.0 m drop tolerance: Survives typical warehouse drops and light moisture without protective cases, though impact-resistant sleeves remain worthwhile for intensive picking operations where repeated falls are common.
- 2.5–50.8 cm working range: Single device handles both POS checkout (close range) and overhead bin picking (extended distance), eliminating the need to carry or swap multiple scanner types during a shift.
- Bluetooth 4.2 + USB dual mode: Wireless for new mobile deployments; USB fallback ensures integration with legacy POS terminals and serial systems without additional gateways or adapters.
Deployment Considerations:
- IP65 is splash-resistant but not submersion-rated — if your facility uses washdown cleaning or high-pressure hoses, specify an IP67 scanner instead.
- Bluetooth pairing is HID-based (plug-and-play on modern devices), but older serial mobile computers may require a wireless receiver or gateway to integrate with the 2100IXR-3USBN.
- Drop rating assumes intact optical elements post-impact; hard impacts can degrade focus calibration, so protective cases are still recommended for intensive warehouse use.
This model is purpose-built for organizations transitioning from 1D-only systems to mixed 1D/2D barcode environments without redeploying scanners. Deploy it in retail or warehouse settings where flexibility, durability, and multi-symbology support are more important than bleeding-edge scan speed or enterprise analytics integration.
