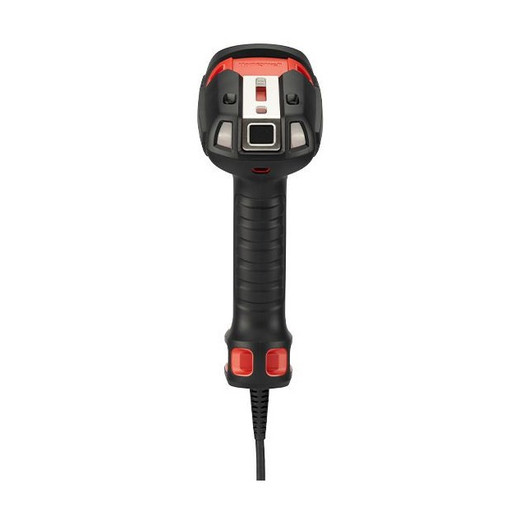

Honeywell 2100IXR-3N Area Imager Barcode Scanner
The Honeywell 2100IXR-3N is an enterprise-grade area imager barcode scanner engineered for high-performance 1D and 2D barcode capture in retail, warehouse, and field service environments. Area imaging technology—rather than single-line laser scanning—captures the entire barcode field at once, which means damaged, poorly printed, or tilted barcodes decode reliably. This advantage compounds in real warehouse conditions where label wear and odd scan angles are unavoidable. With IP65 ingress protection and a 2.0-meter (6.5 ft) drop rating, the 2100IXR-3N survives concrete floors and washdown conditions without frequent replacement cycles. Wireless Bluetooth 4.2 connectivity removes cable constraints, enabling roaming scan workflows across receiving docks, shelves, and fulfillment lines.
Key Features
- Area Imager 1D/2D Decoding: Captures the entire barcode in a single frame rather than sweeping a laser line. This approach handles dense, poorly printed, or damaged codes that laser scanners miss—a meaningful gain in real-world retail and warehouse environments where label quality varies.
- IP65 Environmental Rating: Protection against dust and water spray means the scanner survives typical warehouse washdowns and outdoor staging areas. If full submersion is required, IP67 models exist in the Honeywell portfolio—but IP65 covers most on-site conditions.
- 2.0-Meter Drop Rating: Specified for drops onto concrete from standard work heights. This durability rating reduces the total cost of ownership by avoiding frequent device replacement in high-impact settings.
- Bluetooth 4.2 Wireless Connectivity: Eliminates tethering to a fixed terminal or USB hub, enabling picker mobility and reducing cable snags at checkout counters. Dual Bluetooth and USB options allow mixed deployments—wireless for mobile associates, USB for stationary POS terminals.
- Wide Working Range (2.5–50.8 cm / 1–20 in): Close-range point-of-sale scanning (2.5 cm) to extended-range asset identification (50.8 cm) in a single model. Avoids the need for multiple SKUs across departments.
- Multi-Symbology Support: Decodes EAN, UPC, Code 128, QR Code, Data Matrix, and other standard formats. Simplifies integration with retail POS systems, shipping platforms, and warehouse management software without special configuration.
- Rapid Scan Processing: High-speed frame capture and image processing minimize transaction delays at checkout and speed up receiving line throughput during peak shipping periods.
- Optimized Optical Engine: Consistent first-pass read accuracy across varying lighting conditions—fluorescent retail lighting, bright outdoor staging areas, and dim back-of-warehouse environments.
Integration & Compatibility
The 2100IXR-3N pairs with standard Bluetooth host devices—mobile tablets, smartphones, and laptops—as well as traditional wired USB connections to retail POS terminals and warehouse management systems. Because it decodes standard barcode symbologies without proprietary encoding, integration effort is minimal. No special drivers or firmware updates are typically required on the host side; the scanner operates as a standard input device (HID keyboard emulation over Bluetooth or USB).
Ideal Deployment Scenarios
- Retail Point-of-Sale: Express checkout and fast-lane scanning where cable management is problematic or customer experience depends on fast transaction completion.
- Warehouse Receiving & Picking: Roaming pick carts, shipping dock mobile workflows, and inventory cycle counts where associates move frequently and wired scanners create tripping hazards.
- Shipping & Logistics: Proof-of-delivery operations, parcel tracking, and multi-leg freight documentation where the scanner must survive vehicle vibration and outdoor conditions.
- Manufacturing & Quality Control: Product traceability, serial number verification, and in-process inspection where barcode orientation and label condition vary by production phase.
- Asset Management: Fixed-asset tagging, equipment tracking, and maintenance logging where field technicians need durable, mobile scanning without tethering.
- Field Service: Mobile data collection, job site verification, and customer signature workflows where a rugged, wireless scanner reduces paperwork and rework.
Frequently Asked Questions
Q: Does the 2100IXR-3N work with iPad and Android tablets?
A: Yes. The Bluetooth 4.2 radio pairs with any iOS or Android device that supports standard HID (Human Interface Device) keyboard emulation. No special app is required; the scanner acts as a wireless keyboard, transmitting decoded barcode data directly into your existing mobile inventory or POS software.
Q: Can I use the 2100IXR-3N on a typical warehouse management system (WMS) without custom integration?
A: Correct. Because the scanner decodes industry-standard barcode formats (Code 128, UPC, QR, etc.) and emulates a USB keyboard or Bluetooth HID device, it integrates with any WMS that accepts barcode input from a standard scanner. No custom drivers, API calls, or middleware are needed. Plug it in (or pair it) and start scanning.
Q: What's the difference between area imaging and laser scanning?
A: Laser scanners sweep a line across the barcode and read the pattern as the beam passes over it. If the label is torn, the barcode is tilted, or the print contrast is poor, the laser may miss data. Area imagers capture a photo of the entire barcode in one instant, then decode the image digitally. This approach is more forgiving of label damage, print quality, and scanning angle—a real advantage in high-volume retail and warehouse floors where you don't control label conditions.
Q: Is the 2100IXR-3N suitable for outdoor or washdown environments?
A: IP65 means the scanner resists dust and water spray from any direction. Outdoor staging lots, truck loading docks, and regular washdowns are covered. However, if the device will be submerged or exposed to high-pressure jets, consider an IP67-rated model instead.
Q: What happens if I drop the 2100IXR-3N?
A: It's rated for 2.0-meter (6.5 ft) drops onto concrete, simulating drops from typical waist or shoulder height on the warehouse floor. This is a durability specification, not a guarantee; repeated impacts above 2.0 m or drops at extreme angles may cause damage. For high-drop environments (loading docks, elevated conveyor lines), consult the full datasheet for edge-case scenarios.
Q: Does the 2100IXR-3N require a separate power adapter?
A: When used wirelessly via Bluetooth, the scanner draws power from an internal rechargeable battery (specific capacity and charge time are in the full datasheet). When connected via USB to a terminal or workstation, it draws power from the USB port. No separate power supply is required for USB operation on standard 5V USB hubs or computer ports.
Karl WilsonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Xenon XP 1952g platform behind the 2100IXR-3N is a mature, battle-tested scanning engine that balances real-world durability with cost discipline. The IP65 rating and 2.0-meter drop specification eliminate the need for ruggedized third-party cases in typical warehouse and retail floor conditions—a direct savings on operational expense. The area imager approach deserves emphasis: you will decode damaged and poorly printed barcodes that single-line laser scanners routinely miss, reducing rescan rates and associate frustration during peak hours.
Technical Highlights:
- Area Imager Architecture: Captures the entire barcode field in a single exposure, then decodes the image digitally. This handles torn labels, low contrast, and scan angles—three common real-world failure modes for laser scanners.
- IP65 & 2.0m Drop Rating: Together, these specs mean the scanner survives typical warehouse concrete floors and washdown conditions without frequent replacement cycles. Over a 5-year lifecycle, durability translates directly to lower total cost of ownership.
- 2.5–50.8 cm Working Range: Close-range POS scanning and extended-distance asset identification in one SKU reduces inventory complexity and enables flexible deployment across retail, warehouse, and field service use cases.
- Bluetooth 4.2 Wireless: Pairs instantly with tablets, phones, and laptops; dual USB connectivity allows simultaneous wired terminal support. Avoids the cable sprawl and tripping hazards common in older tethered deployments.
Deployment Considerations:
- Wireless Channel Saturation: In high-density retail environments (flagship stores with 50+ mobile associates scanning simultaneously), verify that your 2.4 GHz wireless network has adequate capacity. Bluetooth 4.2 is efficient, but dense multipath retail floors can introduce latency if the access point is overloaded. A survey before rollout is prudent.
- IP65 Limitations: IP65 resists spray and dust but is not rated for full submersion or high-pressure washer jets. If your application involves dunking scanners or extreme pressure washdowns, specify an IP67 or IP68 variant instead.
- Battery vs. Wired: Wireless operation depends on regular charging cycles; incorporate battery management into your shift handoff procedures to avoid mid-shift downtime. Wired USB operation eliminates battery worry but tethers associates to fixed terminals.
The 2100IXR-3N is optimal for mid-market retail chains, third-party logistics (3PL) warehouses, and manufacturing facilities where barcode read accuracy and device durability matter more than premium feature sets. It excels in environments where you deal with high label-quality variance and moderate to heavy impact risk. Skip this model only if your use case demands IP67 full-submersion, extensive on-device analytics, or sub-10-millisecond latency—those cases call for specialized SKUs.
