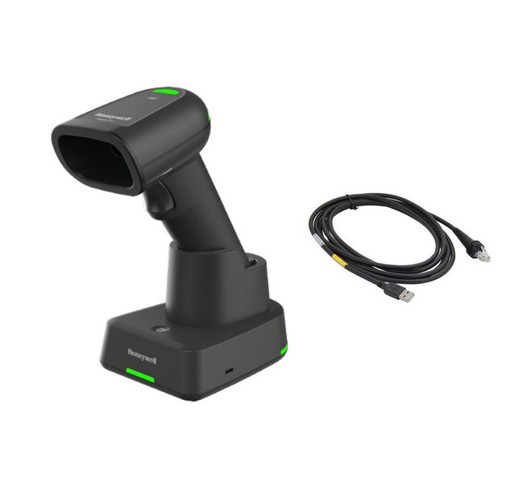

Honeywell 1962GSR-2USB-5BF-N Xenon XP 1952g 1D/2D Area Imager Scanner
The Honeywell 1962GSR-2USB-5BF-N is a purpose-built area imager scanner for high-volume barcode and 2D code capture in retail, warehouse, and field service environments. Unlike laser scanners with moving mirrors, this device uses a solid-state image sensor to capture entire barcode fields at once — no mechanical wear, faster scan cycles, and cleaner reads on reflective or textured labels. The combination of IP65 environmental sealing, 2.0 m (6.5 ft) drop resilience, and dual Bluetooth/USB connectivity makes it practical for both fixed POS installations and mobile picking operations without requiring separate device SKUs.
Key Features
- Area Imager (1D/2D) Capture: Reads standard linear barcodes (EAN, UPC, Code 128) and 2D matrix codes (QR, Data Matrix) in a single scan without mechanical adjustment. Real-world benefit: eliminates the pause-and-rescan cycle common with laser scanners on damaged or poorly-printed labels, reducing checkout lag and operator frustration.
- IP65 Environmental Rating: Dust and moisture ingress are blocked; the scanner tolerates direct spray from a hose but not submersion. Deployed on outdoor receiving docks, warehouse floors with wet conditions, and retail areas subject to spill cleanup — no premature failures from humidity or dust accumulation.
- 2.0 m (6.5 ft) Drop Rating: Withstands repeated drops from typical hand-carry and shelf heights. Critical in high-throughput environments where scanners are handled dozens of times per shift — budget for repairs, not replacements.
- Bluetooth 4.2 Wireless Connectivity: Pairs with mobile devices, tablets, or dedicated mobile computers for pick-to-light and inventory workflows. Range typically 30–100 m depending on obstacles — no tether management overhead, enabling faster picking cycles in sprawling warehouses.
- USB Wired Mode: Operates as a traditional plug-in scanner for stationary POS and kiosk setups. Single device supports both deployment modes without firmware swaps.
- 2.5 to 50.8 cm (1 to 20 inch) Working Range: Comfortable scanning distance from handheld operation to conveyor belt readback and high-shelf inventory. Reduces operator posture strain during extended picking shifts and accommodates automated line scanning on logistics conveyors.
- Multi-Symbology Support: Recognizes high-density barcodes, GS1 DataBar, and specialty codes used in healthcare and manufacturing without configuration changes — one scanner serves multiple departments or supply chains.
- Optimized Optical Engine: Consistent first-pass read accuracy across varying lighting — from bright outdoor receiving to dim aisle lighting — reducing the need for scanner repositioning or relighting at checkout stands.
Typical Deployment Scenarios
This scanner is well-suited for point-of-sale retail checkout where consistent, rapid barcode reads are non-negotiable; warehouse receiving where durability and drop tolerance matter more than specialized scanning speed; shipping and logistics operations requiring both barcode and 2D label readback on packages; manufacturing QC and traceability workflows; asset management programs involving fixed-asset tag scanning; and field service work order management via mobile devices.
Integration Considerations
The Xenon XP 1952g integrates with most retail POS systems and warehouse management systems (WMS) supporting standard HID barcode keyboard emulation or USB scanner input. Bluetooth pairing follows typical mobile device workflows — no special drivers required on iOS or Android. Organizations already standardizing on barcode scanners from the Honeywell product line benefit from unified device management, shared accessories, and consistent support documentation across inventory.
When to Choose a Different Model
If your workflow requires extended-range scanning (beyond 50 cm for items on high shelves or slow-moving conveyors), evaluate a higher-performance laser scanner in the Xenon family. If you need aggressive ruggedness beyond drop tolerance — such as multi-meter falls from elevated warehouse racks — consult application-specific industrial variants. For indoor-only, light-duty retail or office use, a lower-cost entry-level imager may suffice.
Frequently Asked Questions
Q: What is the difference between area imagers and laser scanners?
A: Area imagers use a camera-like sensor to capture the entire barcode field in one frame, eliminating moving parts. Laser scanners bounce a single beam across the barcode. Area imagers handle reflective or textured surfaces better, scan faster on second attempts, and have no mechanical wear. Laser scanners excel at longer ranges and may offer slightly faster reads on pristine, flat barcodes.
Q: Will the Bluetooth connection drop if my picker walks far from the register or back office?
A: Bluetooth 4.2 range is typically 30–100 m in open space, depending on obstacles. In a warehouse with metal racks and dense inventory, practical range is 30–50 m. Most WMS workflows are designed with docking stations or repeater access points to avoid dropouts. Test range in your facility before deployment.
Q: Can I use this scanner for both handheld picking and stationary POS?
A: Yes. The 1962GSR-2USB-5BF-N supports both Bluetooth (mobile) and USB (wired) modes. You can switch between them without reprogramming, though you would typically assign one unit to mobile and another to a fixed POS station.
Q: Is the IP65 rating sufficient for outdoor receiving in rain?
A: IP65 protects against direct spray from a hose nozzle (5 bar pressure), so light rain and splash exposure are fine. Heavy downpour or submersion will damage the scanner — install an awning or protective cover for exposed outdoor loading docks.
Q: What symbologies does the Honeywell 1962GSR-2USB-5BF-N decode?
A: It decodes standard linear codes (EAN-13, EAN-8, UPC-A, UPC-E, Code 128, Code 39, Interleaved 2-of-5) and 2D codes (QR Code, Data Matrix, PDF417, Micro PDF417). Specialty codes like GS1 DataBar are supported. No separate licensing is required per barcode type.
Q: How long does the Bluetooth battery last?
A: The evidence provided does not specify Bluetooth battery life. Consult the manufacturer's datasheet or contact technical support for exact run-time on a full charge, as this varies by usage pattern and model revision.
The Honeywell 1962GSR-2USB-5BF-N represents a balanced workhorse for organizations that need durable, multi-format barcode capture without specialized laser scanning requirements. The area imager architecture eliminates mechanical wear — a meaningful advantage in high-throughput retail and warehouse environments where scanner replacement budgets are tight and downtime costs real money. IP65 sealing and the 2.0 m drop rating are not marketing flourishes; they translate directly to longer service life and fewer repair tickets in facilities with active handling and variable environmental conditions.
Technical Highlights:
- Area Imager vs. Laser: No moving parts means faster scan cycles on damaged or reflective labels and zero mechanical maintenance — common pain points in retail and warehouse environments where label quality is inconsistent.
- IP65 Environmental Protection: Dust and moisture ingress are blocked, suitable for outdoor receiving docks and wet warehouse floors. Not submersion-rated, so plan for covered mounting on exposed loading areas.
- 2.0 m Drop Resilience: Withstands the cumulative physical abuse of high-throughput scanning shifts — reduces capital equipment rotation and simplifies depot budgeting.
- Dual Bluetooth/USB Connectivity: Single device SKU serves both mobile picking (Bluetooth) and fixed POS (USB wired) installations, reducing procurement complexity and support overhead for multi-location deployments.
- 2.5 to 50.8 cm Working Range: Accommodates both handheld and conveyor-based scanning without operator strain or frequent repositioning — important for throughput in high-volume logistics and checkout lines.
Deployment Considerations:
- Bluetooth range in warehouse metal-rack environments is typically 30–50 m, not the open-space spec of 100 m — factor in docking stations or access points for sprawling facilities.
- IP65 is splash and dust resistant but not submersion-rated — position carefully on wet docks or use additional protective housing for aggressive washdown areas.
- Area imagers excel on textured and reflective labels where laser scanners struggle, but do not extend range beyond 50 cm — if you need longer-distance scanning (high shelves, slow conveyors), upgrade to a specialized long-range variant.
The 1962GSR-2USB-5BF-N is the right choice for warehouse receiving operations and high-volume retail checkouts where reliability and multi-format support matter more than exotic features. If you are standardizing on Honeywell hardware across your enterprise, this scanner simplifies device management and leverages existing firmware and configuration workflows. Deploy it in environments where durability and drop resilience directly reduce capital refresh cycles.
