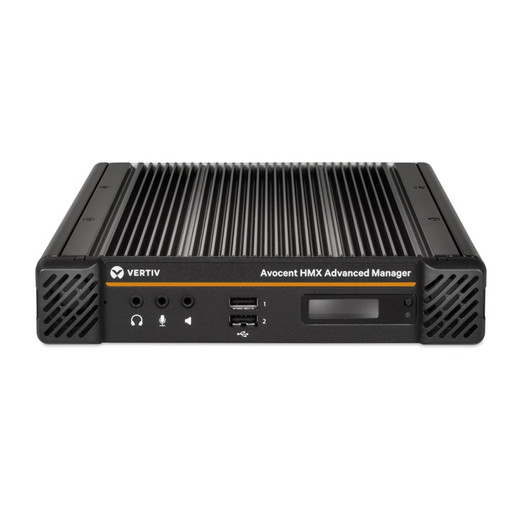

Vertiv HMXAMGR24G2-400 HMX Advanced Manager G2 KVM Management Appliance
Overview
The Vertiv HMXAMGR24G2-400 is the second-generation Advanced Manager for the HMX KVM-over-IP and AV-over-IP product family. Designed for enterprise AV and IT environments that need centralized connection management, the HMXAMGR24G2-400 coordinates transmitter and receiver endpoints across the HMX matrix — giving operators a single control plane for routing, permissions, and configuration rather than managing each node individually. At 1.6" tall and 8.5" wide, it occupies minimal rack space and ships at 4 lbs, making it straightforward to rack-mount in an existing 1U slot without displacing adjacent equipment.
The G2 generation of the HMX Advanced Manager is intended for organizations running Vertiv HMX extenders and switches as a distributed KVM or AV-over-IP fabric — broadcast control rooms, network operations centers, command-and-control suites, and enterprise IT environments where multiple operators need flexible, permission-controlled access to multiple sources. For Vertiv KVM and AV infrastructure deployments, the Advanced Manager is the recommended management tier between small peer-to-peer HMX setups and full enterprise matrix switches.
Key Features
- Centralized HMX endpoint management: Coordinates transmitters and receivers across the HMX fabric from a single appliance — eliminates per-device configuration and reduces administration overhead as the endpoint count scales.
- Compact 1U form factor (1.6" H × 8.5" W × 8.3" D): Half-rack-width footprint at 4 lbs means it installs without consuming a full rack unit on its own — useful in tight equipment rooms or rack-share scenarios.
- Purpose-built for HMX ecosystem: Designed as a first-party management tier for KVM-over-IP and AV-over-IP switching environments — not a generic SNMP manager, so HMX-specific features like channel routing and user permissions are natively exposed.
Integration and Compatibility
The HMXAMGR24G2-400 is architected for use within Vertiv HMX extender and switch deployments. Integration should be scoped to verified HMX-family hardware; consult Vertiv's current compatibility matrix for supported endpoint firmware versions before deploying in mixed-generation HMX environments. For sizing guidance on KVM and AV-over-IP management infrastructure, the Advanced Manager G2 is appropriate for mid-to-large HMX deployments where peer-to-peer management is no longer practical.
Frequently Asked Questions
Q: What is the HMXAMGR24G2-400 used for?
A: The HMXAMGR24G2-400 is the HMX Advanced Manager G2, a dedicated management appliance for Vertiv HMX KVM-over-IP and AV-over-IP deployments. It provides centralized control of HMX transmitter and receiver endpoints, handling routing, permissions, and configuration from a single management interface.
Q: What are the physical dimensions of the HMXAMGR24G2-400?
A: The unit measures 1.6" high × 8.5" wide × 8.3" deep and weighs 4 lbs.
Q: Is the HMXAMGR24G2-400 a rack-mountable appliance?
A: Yes — at 1.6" tall it fits in a 1U rack slot. The 8.5" width is half-rack width, so a bracket may be required for full-rack rail mounting depending on your rack hardware.
Q: What is the difference between the HMXAMGR24G2-400 and earlier HMX Manager models?
A: The HMXAMGR24G2-400 is the G2 (second generation) of the HMX Advanced Manager. Specific feature differences from G1 are not detailed in available documentation — consult Vertiv's current product literature for a generation-to-generation comparison before upgrading an existing deployment.
Q: Does the HMXAMGR24G2-400 work with non-Vertiv KVM equipment?
A: The HMXAMGR24G2-400 is designed specifically for the Vertiv HMX ecosystem. Compatibility with third-party KVM or AV-over-IP endpoints is not documented in available evidence — verify with Vertiv before mixing vendor hardware.
The HMXAMGR24G2-400 sits at the management tier of a Vertiv HMX deployment — it is not an extender or switch itself, but the appliance that makes a distributed HMX fabric administrable at scale. At 4 lbs and 1.6" tall, it is physically unobtrusive, but its role in the architecture is load-bearing: without a manager-tier device, HMX endpoints require individual configuration, which becomes operationally untenable past a handful of nodes.
Technical Highlights:
- Half-rack 1U form factor (1.6" H × 8.5" W): Installs in a single rack unit without consuming the full width — practical in shared or dense rack environments where every inch counts.
- 8.3" depth: Shallow enough for 2-post relay racks and shorter 4-post cabinets — confirm your rail depth before ordering rack-mount accessories.
- 4 lb weight: Light enough that a single technician can rack it without assistance, and it won't stress a half-empty rack's weight distribution.
Deployment Considerations:
- Available source evidence covers physical dimensions only — verify port count, supported endpoint capacity, redundancy options, and power input specifications directly against Vertiv's current datasheet before finalizing a bill of materials.
- The HMXAMGR24G2-400 is an HMX-ecosystem-specific appliance — if your environment mixes HMX with other KVM-over-IP vendors, confirm management compatibility before purchasing.
The HMXAMGR24G2-400 is the right call for mid-to-large Vertiv HMX deployments in broadcast control rooms or NOC environments where peer-to-peer endpoint management has outgrown its practical limit and a dedicated management plane is needed to maintain operational efficiency.
