Hikvision DS-KV9503-WBE1 4.3-Inch Facial Recognition Video Intercom

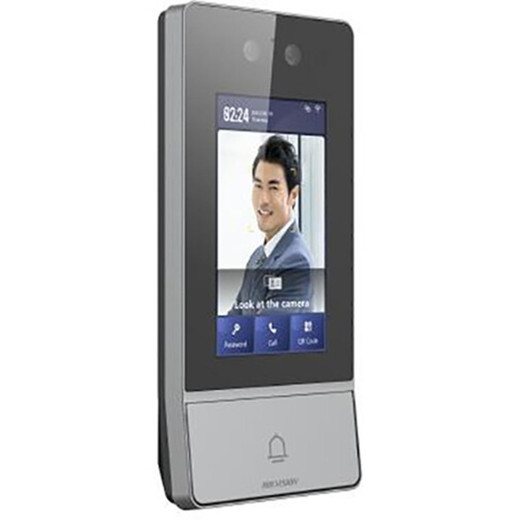

Hikvision DS-KV9503-WBE1 Facial Recognition Video Intercom Door Station

The Hikvision DS-KV9503-WBE1 is a wired outdoor video intercom designed for access control and visitor identification at building entry points. It combines a 4.3-inch capacitive touchscreen (800×480, 425 cd/m² brightness) with onboard facial recognition capable of identifying visitors at 0.3 to 2 meters distance with ≥99% accuracy in under 0.2 seconds per person. This processing speed matters: visitors wait seconds, not minutes, while the system verifies identity against stored profiles or flags unknowns for manual intervention. The 2MP camera (88° horizontal, 44° vertical field of view) and IP65 rating handle outdoor weather; IR fill lighting reaches 3 meters for night operation.

Key Features

• Facial Recognition Engine: ≥99% accuracy at 0.3–2m recognition range; processes identifications in under 0.2 seconds. This speed eliminates the bottleneck of manual visitor screening and reduces security liability if a known threat approaches the door.
• 2MP Camera with 120 dB WDR: Wide dynamic range balances bright backlit entry doors with shaded vestibule corners — you won't lose face detail when the sun is directly behind a visitor. Avoids the typical cost and complexity of manual exposure tuning.
• IR Supplemental Lighting (3m range): 850nm fill lights activate automatically in low light, enabling nighttime facial capture without requiring external lighting infrastructure.
• 4.3-Inch Touchscreen Display: 425 cd/m² brightness is visible in daylight without hood glare. Capacitive surface supports intuitive gestures for staff or residents managing access from the door station itself.
• Dual H.264/H.265 Video Compression: H.265 cuts file size roughly in half versus H.264 at equivalent quality — relevant if you're recording 24/7 across multiple intercom door stations and need to justify storage budget to finance.
• Capacity for 10,000 Facial Profiles & 100,000 Card Records: Accommodates mid-to-large deployments (apartment buildings, corporate campuses, warehouses). Facial database remains local on the device, so recognition works offline if network connectivity drops.
• Dual Relay Outputs: Controls up to 2 electronic locks (or gate release, garage door, etc.) directly from the door station. No separate controller needed for simple one-entry scenarios.
• PoE Power (12 VDC, 1.5 A, 6W typical): Standard 802.3af PoE on a single Ethernet cable eliminates dedicated power runs to the entrance. 6W draw is minimal — won't stress a standard PoE switch even across dozens of endpoints.
• IP65 & IK08 Rating: IP65 means water jets and dust won't compromise the device; IK08 protects against vandal strikes (5 joule impact). Suitable for unsecured outdoor lobbies and high-traffic public areas.
• Two-Way Audio: Built-in omnidirectional microphone and loudspeaker with noise suppression and echo cancellation (G.711 codec at 64 Kbps). Staff at a remote desk or mobile app can speak directly to visitors without shouting.
• 13.56 MHz Card Reader: Integrates compatible proximity or MIFARE card credentials; useful for allowing tenants or employees to bypass facial enrollment during initial setup or for visitors without digital profiles.
• Environmental Tolerance: Operating range of −40°C to 60°C and humidity from 10–90% non-condensing. Survives Canadian winters and hot desert climates without thermal cycling failures.

Integration & Connectivity

The DS-KV9503-WBE1 runs embedded Linux with 1 GB RAM and 4 GB storage. Ethernet (RJ-45, 10/100 Mbps) provides TCP/IP and RTSP connectivity for remote viewing and management. Optional Wi-Fi (802.11b/g/n) supports deployment where cabling is impractical, though wired Ethernet is strongly preferred for reliability in access-control scenarios. The device supports up to 500 indoor call stations and 16 sub-door stations in a single system — enabling multi-unit residential or campus-wide deployments from a centralized management interface. Compatible network video recorders and video management software can pull RTSP streams for 24/7 archival and post-incident review.

Deployment Scenarios

Deploy the DS-KV9503-WBE1 at main lobbies of office buildings, apartment complex entrances, secure facility gates, data center access points, and hospital visitor checkpoints. Ideal where you need to verify identity before granting physical access, reduce tailgating, and maintain an audit trail of who entered and when. Works well alongside access control systems that enforce policies based on time-of-day, visitor badge status, or facial blacklist lookups. The onboard card reader allows hybrid credential modes (face + card, card-only fallback for forgotten faces).

When to Choose a Different Model

If you need higher resolution for long-distance facial capture (e.g., identifying people 5+ meters away), consider a higher-megapixel variant in the Hikvision thermal or multisensor intercom line. If your entry point is indoor-only and needs no IP rating, explore non-weatherproof door station options that reduce cost. If you require integration with third-party VMS platforms via ONVIF, confirm compatibility with your chosen software before purchase — facial recognition APIs vary between manufacturers.

Frequently Asked Questions

Q: Can the DS-KV9503-WBE1 work without a network connection?

A: Yes. Facial recognition, card reading, and relay control operate locally on the device. Network connectivity enables remote monitoring, facial database synchronization, and logging to a central server, but the door station will continue recognizing enrolled faces and issuing access decisions offline.

Q: What's the typical installation footprint for the DS-KV9503-WBE1?

A: The device measures 182 × 85 × 26 mm (7.17 × 3.35 × 1.02 inches) and weighs 0.405 kg (0.89 lbs). It mounts flush on a standard wall or door frame. Single Ethernet cable carries power and data — no junction box or auxiliary enclosure required in most installations.

Q: How do I enroll faces into the DS-KV9503-WBE1?

A: Faces are typically enrolled via the touchscreen at the door station or remotely via management software. The camera captures a frontal image; the recognition engine stores a biometric template (not the photo) in local memory. Enrollment takes 5–10 seconds per person.

Q: Does the DS-KV9503-WBE1 support mobile app integration for remote unlock?

A: Mobile unlock requires a compatible management platform or VMS. The door station itself provides local relay outputs and two-way audio that third-party software can trigger. Integration scope depends on your chosen management ecosystem.

Q: What's the warranty and support situation?

A: Check with your supplier or Hikvision regional office for warranty terms. Standard manufacturer support covers hardware defects and firmware updates. Ongoing facial database management and VMS integration are typically vendor-provided or require professional installation.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-KV9503-WBE1 stands out for its sub-0.2-second recognition latency paired with ≥99% accuracy. That speed difference—versus systems requiring 1–3 seconds per face—directly cuts visitor frustration and creates a smoother handoff to manual staff verification when a face isn't in the database. The 120 dB WDR engine is the technical heart: it locks exposure dynamically so backlighting doesn't wash out a visitor's face while shadows don't crush detail. That means fewer failed enrollments and fewer false rejects at day-lit glass entries.

Technical Highlights:

• IR Fill to 3 Meters: 850nm supplemental lighting activates automatically at dusk and night. You don't need external floodlights; the intercom itself provides enough IR for facial feature capture out to typical residential entry distances. Saves installation cost and reduces light pollution complaints.
• 6W PoE Draw: Minimal power consumption means you can daisy-chain multiple door stations on a single standard PoE switch without breaching the 95W per port budget. Scales to apartment blocks without requiring dedicated power infrastructure.
• 10,000 Facial Profiles Locally Stored: Recognition works offline and independently. If your network link drops during a visitor peak, the door station continues identifying known residents or staff without degradation. Database stays on the device; no cloud dependency.
• Dual-Relay Outputs: Direct control of two independent locks or release mechanisms. A simple scenario (front door + inner gate) needs no auxiliary controller; the door station logic handles it directly.

Deployment Considerations:

• The 2MP resolution and 88° horizontal field of view work well for head-on entry scenarios (lobbies, vestibules) but struggle if your entry is a long hallway or if visitors approach at extreme angles. Frontal enrollment and capture assumptions are baked in—orient your installation accordingly.
• The 4.3-inch touchscreen is bright in daylight (425 cd/m²) but staff interaction from the device itself is limited to basic unlock/deny operations. Any serious multiuser access policy or audit logging should integrate with a central VMS or access control platform.
• Card reader operates at 13.56 MHz (MIFARE, proximity). Verify your existing card stock is compatible before deployment. Legacy 125 kHz readers will not work without an external reader module.

Choose the DS-KV9503-WBE1 for mid-scale apartment, office, or warehouse entry points where fast facial recognition reduces touchless access friction and the onboard relay handles standard door/gate release without external controllers. Not a fit if you need long-distance facial capture or deep third-party VMS integration as a primary requirement—scope that upfront.
