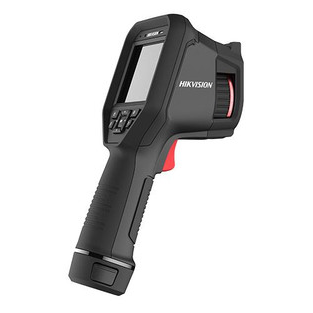

Hikvision DS-2TP23-10VM/W Handheld Thermography Camera

The Hikvision DS-2TP23-10VM/W Handheld Thermography Camera is a highly advanced and versatile tool, ideal for a range of professional applications that require accurate real-time temperature measurement and thermal imaging.

Key Features:

• High-Resolution Imaging: The camera boasts a thermal resolution of 384 x 288 and an optical resolution of 1080p, ensuring detailed and clear images.
• Focal Plane Arrays: The uncooled focal plane arrays enhance image quality and thermal detection efficiency.
• Advanced Display: Equipped with a 3.5 inch LCD screen with a resolution of 640 x 480, the camera offers a user-friendly interface for viewing thermal data.
• Enhanced Thermal Sensitivity: With a NETD of less than 40 mk, the camera can detect minute temperature differences, crucial in many industrial and commercial settings.
• Image Enhancement Features: It incorporates 3D DNR (Digital Noise Reduction) and Adaptive AGC (Automatic Gain Control) for improved image clarity and quality.
• Durable Design: The camera is built to withstand challenging environments, evidenced by its IP54 protection rating.

Specifications:

• The image sensor is an uncooled focal plane array, with a pixel pitch of 17μm and a response waveband of 8μm to 14μm.
• The camera's field of view is 37.5° x 28.5°, and it features a manual focus 10 mm focal length.
• It offers various palettes such as black hot, white hot, red hot, rainbow, ironbow, fusion, and rain for versatile imaging.
• The thermography range is from -4° F to 1022° F (-20° C to 550° C), with a maximum accuracy of ± 2° C or ± 2%.
• The camera is powered by a replaceable and rechargeable lithium battery, supporting up to four hours of continuous operation.

Compatibility:

• The camera includes Wi-Fi support and a Micro USB hardware interface, enhancing its connectivity and ease of use in various professional scenarios.

Package Contents:

• The package includes the camera, a battery, a charger, a USB cable, a box, and other essential accessories.
