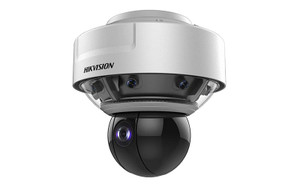

Hikvision DS-2DP3236ZIXS-D/440 32MP PanoVu 360° Panoramic Outdoor IP Camera

Hikvision DS-2DP3236ZIXS-D/440 32MP PanoVu 360° Panoramic Outdoor IP Camera

The Hikvision PanoVu DS-2DP3236ZIXS-D/440 represents next-generation panoramic surveillance, combining a 32MP panoramic channel with a full 40x optical zoom PTZ module in a single integrated unit. This dual-channel architecture delivers simultaneous 360° situational awareness and targeted high-resolution monitoring, eliminating blind spots while enabling rapid response to incidents across large outdoor areas. With panoramic resolution up to 5520 × 2400 pixels and PTZ capabilities reaching 2560 × 1440, the camera captures fine detail across expansive perimeters—from airports and stadiums to industrial facilities and critical infrastructure.

Key Features

• Dual-channel design: 1/1.8" panoramic CMOS + 1/1.8" PTZ CMOS sensor
• 32MP total resolution with 5520 × 2400 panoramic and 2560 × 1440 PTZ output
• 40x optical zoom on PTZ channel with 16x digital zoom for forensic-quality detail
• Full 360° pan with unlimited rotation; -15° to 90° tilt with auto-flip
• Extreme low-light performance: 0.0005 Lux (color) and 0.0001 Lux (B/W) with smart IR up to 250m range
• AI-powered analytics: face capture (up to 30 simultaneous), smart tracking (manual/auto/panorama modes), line crossing detection, intrusion detection, people density monitoring, and congestion alerts
• Advanced image processing: 120 dB WDR (PTZ), EIS, 3D DNR, optical defog (PTZ), and smart supplemental lighting
• 300 presets with 8 patrol patterns (up to 32 presets each) and 4 recordable pattern scans
• Simultaneous multi-codec streaming: H.265+/H.265/H.264+/H.264 main stream, plus sub and third stream options
• PoE powered (36 VDC, max 135W) with fiber optic support (up to 20km via FC interface)
• IP67-rated, -40°C to 70°C operating range, demist equipped, IK10 impact protection
• Onboard microSD storage (up to 256GB), ANR, and NAS/FTP integration
• Up to 32 concurrent users with HTTPS encryption, MAC binding, and 802.1X authentication

Technical Highlights

The PanoVu's dual-sensor architecture eliminates the traditional tradeoff between panoramic coverage and zoom capability. The panoramic channel provides constant 56.6° horizontal FOV for persistent wide-area surveillance, while the PTZ channel delivers pinpoint observation with a 1.8° to 56.6° zoom range and DORI specifications of 4137.9m (Detect), 1642.0m (Observe), 827.6m (Recognize), and 413.8m (Identify). Shutter speeds from 1 second to 1/30,000 second ensure optimal exposure control across day/night transitions. The camera supports up to 20 simultaneous live viewing channels and includes 7 alarm inputs with 2 outputs for integration with external systems and automated responses.

Applications

Ideal for large perimeter surveillance, this camera excels in airports, seaports, railway yards, power plants, oil & gas facilities, university campuses, and municipal traffic management. Its combination of panoramic overview and PTZ zoom eliminates the need for multiple cameras, reducing installation costs and simplifying system architecture while delivering forensic-grade detail for incident investigation.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DS-2DP3236ZIXS-D/440 addresses a critical gap in outdoor surveillance: the need for both persistent wide coverage and rapid zoom response in a single device. Its panoramic channel operates independently of the PTZ module, ensuring that zoom operations never sacrifice situational awareness. The 40x optical zoom combined with 16x digital expansion provides exceptional reach; at maximum magnification, the camera can capture facial features at extreme distances.

Smart tracking across both channels enables seamless handoff—an object detected in panorama can be automatically acquired and tracked by the PTZ module. The fiber optic interface is particularly valuable for large deployments where electrical noise or long runs would degrade image quality. For security operations centers managing sprawling outdoor sites, this architecture dramatically reduces hardware count while improving response times through intelligent AI event processing that automatically triggers zoom and pattern tracking actions.
