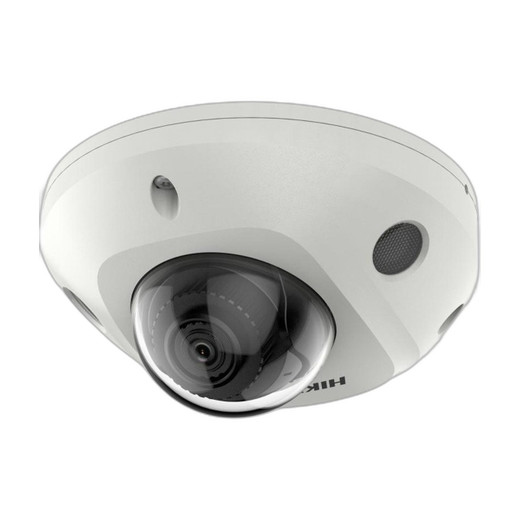

Image Sensor:
1/2.8" Progressive Scan CMOS
Max. Resolution:
1920 × 1080
Min. Illumination:
Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
Pan: -30° to 30°,tilt: 0° to 75°,rotate: 0° to 360°
Lens Type:
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV:
2.8 mm, horizontal FOV 108°, vertical FOV 59°, diagonal FOV 127°;4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 100°
Lens Mount:
M12
Iris Type:
Fixed
Aperture:
F1.6
Depth Of Field:
2.8 mm: 1 m to ∞;4 mm: 1.1 m to ∞
DORI:
2.8 mm: D: 42 m, O: 17 m, R: 8 m, I: 4 m;4 mm: D: 54 m, O: 21 m, R: 11 m, I: 5 m
Supplement Light Type:
IR
Supplement Light Range:
Up to 30 m
Smart Supplement Light:
Yes
IR Wavelength:
850 nm
Main Stream:
50 Hz: 25 fps (1920 × 1080, 1280 × 720);60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream:
50 Hz: 25 fps (640 × 480, 640 × 360);60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream:
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360);60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
Video Compression:
Main stream: H.265/H.264/H.264+/H.265+;Sub-stream: H.265/H.264/MJPEG;Third stream: H.265/H.264
Video Bit Rate:
32 Kbps to 8 Mbps
H.264 Type:
Baseline Profile,Main Profile,High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR,VBR
Scalable Video Coding (SVC:
H.264 and H.265 encoding
Region Of Interest (ROI:
1 fixed region(s) for main stream and sub-stream
Audio Compression:
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate:
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate:
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering:
Yes
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View:
Up to 6 channels
API:
Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host:
Up to 32 users;3 user levels: administrator, operator, and user
Security:
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Inter
Network Storage:
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client:
iVMS-4200,Hik-Connect,Hik-Central
Web Browser:
Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch:
Yes
Image Settings:
Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch:
Day,Night,Auto,Schedule
Wide Dynamic Range (WDR:
120 dB
SNR:
≥ 52 dB
Image Enhancement:
BLC,HLC,3D DNR
Privacy Mask:
Yes
Ethernet Interface:
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage:
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-In Microphone:
Yes
Audio:
-IS: 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm:
-IS: 1 input, 1 output (max. 12 VDC, 30 mA)
Reset Key:
Yes
Basic Event:
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Event:
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), Face detection
Linkage:
Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture, trigger alarm output (-S), audible warning (-S)
Power:
12 VDC ± 25%, 0.45 A, max. 5.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W
Material:
Base: aluminum, cover: plastic
Dimension:
Ø110 mm × 57.4 mm (Ø4.3" × 2.3")
Package Dimension:
134 mm × 134 mm × 108 mm (5.3" × 5.3" × 4.3")
Weight:
Approx. 380 g (0.8 lb.)
With Package Weight:
Approx. 620 g (1.4 lb.)
Storage Conditions:
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions:
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language:
33 languages;English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditiona
General Function:
Anti-flicker, heartbeat, password reset via email, pixel counter
EMC:
FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety:
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment:
CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection:
IP67: IEC 60529-2013;IK08: IEC 62262:2002
