Type:
Bullet
Frame Rate:
30fps
Sensor Type:
1/3" Progressive Scan CMOS
Max. Resolution:
2688 × 1520
Min. Illumination:
0.005 Lux color / 0 Lux IR
Shutter Time:
1/3 s to 1/100,000 s
Day & Night:
IR cut filter
Angle Adjustment:
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Focal Length & FOV:
2.8mm (103° H), 4mm (84° H), 6mm (52° H)
Lens Type:
Fixed focal lens, 2.8, 4, and 6 mm optional
Lens Mount:
M12
Aperture:
F1.6
Iris Type:
Fixed
DORI:
6mm: D 120m, O 47m, R 24m, I 12m
Supplement Light Range:
Up to 40 m
Supplement Light Type:
IR
IR Wavelength:
850 nm
Smart Supplement Light:
Yes
Main Stream:
2688×1520 @ 25fps
Sub-Stream:
1280×720 @ 25fps
Third Stream:
1920×1080 @ 10fps
Video Compression:
Main stream: H.265/H.264/H.264+/H.265+, +more
Video Bit Rate:
32 Kbps to 8 Mbps
H.264 Type:
Baseline Profile/Main Profile/High Profile
H.265 Type:
Main Profile
Bit Rate Control:
CBR/VBR
Scalable Video Coding (SVC:
H.264 and H.265 encoding
Region Of Interest (ROI:
1 fixed region for main stream and sub-stream
Audio Compression:
-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate:
16-64 Kbps
Audio Sampling Rate:
-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering:
-U: Yes
Protocols:
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets
Simultaneous Live View:
Up to 6 channels
API:
ISAPI, SDK, ONVIF Profile S/G
User/Host:
32 users, 3 levels
Security:
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage:
NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client:
iVMS-4200, Hik-Connect, Hik-Central
Web Browser:
Plug-in required live view: IE 10, IE 11, +more
Image Parameters Switch:
Yes
Image Settings:
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch:
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR:
120 dB
Image Enhancement:
BLC, HLC, 3D DNR
SNR:
≥ 52 dB
Ethernet Interface:
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage:
microSD card up to 512GB
Built-In Microphone:
-U: Yes
Reset Key:
Yes
Basic Event:
Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event:
Line crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle));Face detection
Linkage:
Trigger record, FTP/card/NAS upload
Power Type:
PoE
Dimension:
Ø70 × 161.7 mm (Ø2.76" × 6.37")
Package Dimension:
216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")
Weight:
Approx. 490 g (1.1 lb.)
With Package Weight:
Approx. 724 g (1.6 lb.)
Storage Conditions:
-30 to 60°C, ≤95% RH non-condensing
Startup And Operating Conditions:
-30°C to 60°C
General Function:
Anti-flicker, heartbeat, password reset via e-mail, pixel counter
Language:
33 languages, English, Russian, Estonian, Bulgarian, +more
EMC:
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety:
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment Rating:
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection:
IP67 (IEC 60529-2013)
Product Type:
Bullet
Connectivity:
Wired
Resolution:
4MP
Night Vision:
IR
Housing Color:
White
Warranty:
5-year warranty
Package Contents:

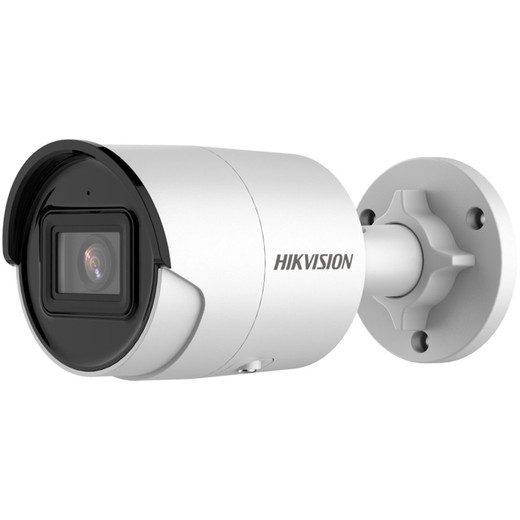

When you choose the Hikvision DS-2CD2043G2-IU; you'll receive: Hikvision DS-2CD2043G2-IU 4MP AcuSense Fixed Bullet Network IP Camera Installation Guide Mounting Hardware Owner Authentication Key Enhance your security infrastructure with the Hikvision
