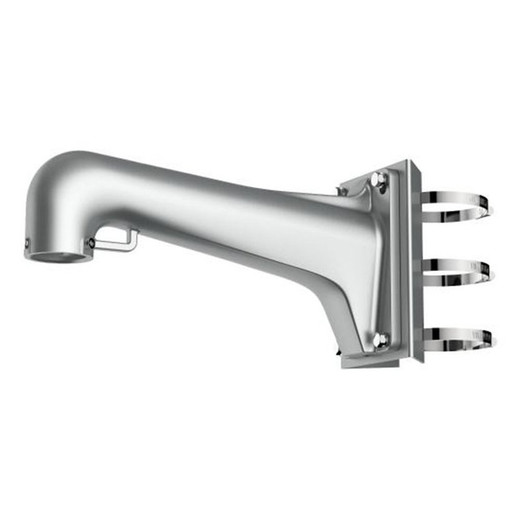

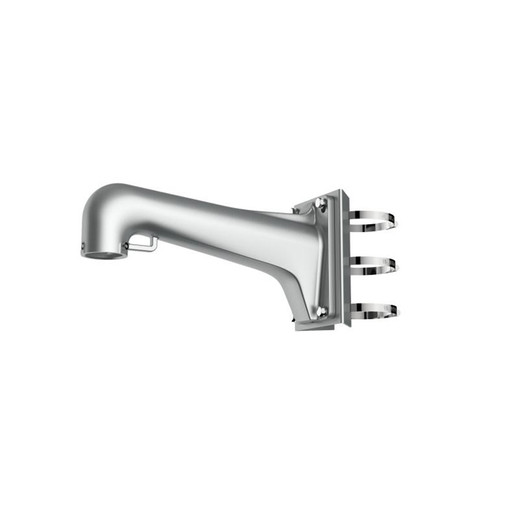

Hikvision DS-1603ZJ-POLE-P Vertical Pole Mount
The DS-1603ZJ-POLE-P is a vertical pole mount engineered for deploying Hikvision IP cameras where wall or ceiling installation is impractical. Built from high-grade aluminum alloy, this mount delivers reliable outdoor and indoor performance across demanding environmental conditions.
Key Features
- Adjustable clamp system (67–127mm pole diameter): The tightening mechanism accommodates standard utility poles, light poles, and structural posts found in parking lots, perimeter fencing, and industrial yards. No drilling or pole modification required—this preserves structural integrity and eases removal or repositioning. Most common poles (2.64 to 5 inches) will fit without adaptation.
- 10kg load capacity: Supports single and dual-camera configurations typical of small-to-medium surveillance clusters. A compact fixed-lens turret (4–5kg) plus a lightweight bullet camera (3–4kg) can coexist without exceeding the limit. Large PTZ heads or oversized thermal cameras will exceed this rating, so verify camera weight before ordering.
- Aluminum alloy construction: Resists corrosion in salt-air, rain, and UV exposure—a meaningful advantage over steel in coastal or high-humidity deployments. Lighter weight than steel reduces load on pole attachment points and simplifies installation; one technician can position and secure without assistance. Fasteners and clamp contact points may require periodic inspection in high-salt environments.
- Wide operating temperature range (−40°C to 60°C): Deploys reliably in arctic and desert climates without thermal expansion cracks or material brittleness. Eliminates seasonal replacement cycles and simplifies logistics for global multi-site deployments.
- Compact footprint (117mm × 194mm × 451mm): Minimizes wind load and visual profile on poles—a practical benefit in aesthetically sensitive environments. The 2.03kg mount weight means minimal stress on even utility poles with surface corrosion or age.
- Vertical orientation: Locks camera pan and tilt adjustments into place once aimed. Simplifies initial aiming at a fixed sightline but eliminates field-of-view repositioning post-installation without full remount. Choose this if coverage needs are static; consider a wall-arm or adjustable mount if you need flexibility after deployment.
Integration & Compatibility
The DS-1603ZJ-POLE-P integrates with Hikvision's fixed, motorized, and compact turret camera lines. Verify your camera's mounting interface (standard ball-mount pattern) before ordering—the unit does not ship with third-party adapter plates. The clamp's no-drilling design suits most pole types and preserves original structure; removal leaves no permanent damage.
Deployment Context
Pole mounting delivers visibility gains when perimeter surveillance demands height and clear sightlines—parking lot entries, fence lines, utility corridors, and rooftop edge coverage are common wins. The fixed vertical orientation suits stationary coverage; if you need pan/tilt flexibility after installation, reconsider this choice. Outdoor installations benefit from the aluminum weather resistance, though you'll still need cable conduit routing and PoE switch placement to minimize run length and voltage drop. The compact form keeps wind load low and reduces vibration on older or flexible poles.
Frequently Asked Questions
Q: What pole sizes does the DS-1603ZJ-POLE-P fit?
A: The adjustable clamp accommodates poles from 67mm to 127mm (2.64 to 5 inches) in diameter. Standard utility poles, light poles, fence posts, and some structural columns fall within this range. Measure your target pole before ordering; poles outside this range require a different mount.
Q: Can I mount more than one camera on this pole mount?
A: Yes, if the combined weight does not exceed 10kg. A single compact turret (around 4–5kg) plus a second bullet camera (3–4kg) is feasible. Dual large turrets or PTZ heads exceed the load limit and risk structural failure.
Q: Is this mount rated for coastal or high-salt environments?
A: The aluminum alloy construction resists corrosion in salt-air conditions. However, long-term exposure in high-salt environments may require periodic inspection of fasteners and clamp contact points. Consider supplemental stainless-steel hardware if you're within 1–2 miles of seawater.
Q: Do I need tools to install the DS-1603ZJ-POLE-P on a pole?
A: The clamp tightens via a mechanical system requiring only basic hand tools (typically a wrench or allen key). No drilling, special equipment, or pole modification is needed. Installation time is typically 20–30 minutes for a single technician.
Q: What is the warranty on the DS-1603ZJ-POLE-P?
A: Consult the Hikvision warranty documentation for your region. Hikvision mounts typically carry a one-year manufacturer warranty covering defects in materials and workmanship. Extended warranty or support plans may be available through your distributor.
Q: Can I use this mount indoors as well as outdoors?
A: Yes. The aluminum construction and wide operating temperature range suit both environments. Indoor pole mounts are common in warehouses, loading docks, and industrial facilities where structural support exists but wall/ceiling mounting is impractical.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The DS-1603ZJ-POLE-P is a straightforward piece of hardware—no electronics, no firmware, no analytics. What you get is a solid aluminum clamp and a mounting platform, and that simplicity is exactly the point. The 10kg load capacity and 67–127mm adjustable range cover the majority of single- and dual-camera pole deployments I've seen in parking lots and fence perimeter work. The aluminum construction matters more than most installers realize; it'll outlast powder-coated steel in coastal or humid climates without the corrosion drama.
Technical Highlights:
- Load capacity of 10kg: Sufficient for one turret plus one bullet, but not two large PTZ heads. Weigh your cameras before specifying; undersizing here causes field reinstalls and callbacks.
- 67–127mm clamp range: Covers standard utility poles and most structural steel. Narrower pole diameters (under 67mm) and oversized poles (over 127mm) require a different mount—confirm pole size in the field before ordering.
- Operating temperature −40°C to 60°C: This span is wide enough for arctic facilities and desert sites without seasonal derating. Many aluminum mounts crack in extreme cold; this one is spec'd for it.
Deployment Considerations:
- The fixed vertical orientation is a feature and a limitation. Once aimed, the camera stays pointed at that exact sightline. If coverage needs shift after installation, you're remounting. Plan field-of-view carefully before deployment.
- Aluminum resists corrosion, but in high-salt environments (within 1–2 miles of seawater), fasteners can corrode faster than the alloy body. Inspect and replace stainless-steel hardware during annual maintenance in those zones.
The DS-1603ZJ-POLE-P is the right choice for fixed-coverage pole deployments—parking lot perimeters, fence lines, utility corridors—where height and static sightlines are the priority. Skip it if you need pan/tilt adjustment after installation or if your poles fall outside the 67–127mm range.
