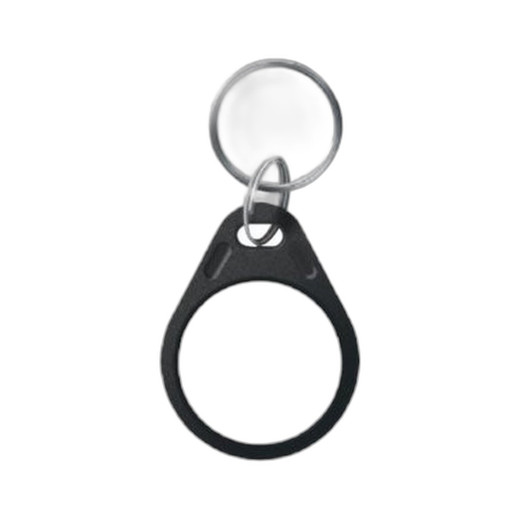

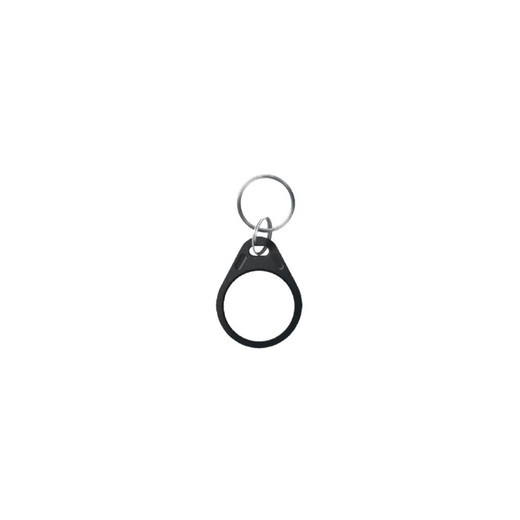

Hanwha NOC-60L8 MIFARE DESFire EV3 Smart Keyfob Credential

Hanwha NOC-60L8 MIFARE DESFire EV3 Smart Keyfob Credential

The NOC-60L8 is a compact, cryptographically secured access credential built on MIFARE DESFire EV3 technology with EAL 5+ security certification — meaning it meets the formal cryptographic evaluation standards required by government, financial, healthcare, and federal facilities. If your organization currently relies on legacy 125 kHz proximity cards (which broadcast credentials unencrypted and are vulnerable to cloning and long-distance skimming), the NOC-60L8 delivers the authentication rigor and non-repudiation those older systems lack. The 13.56 MHz high-frequency operating envelope eliminates the documented long-distance credential interception threat — a real vulnerability in sensitive facilities where unauthorized card reading has exposed access breaches.

Key Features

• MIFARE DESFire EV3 with EAL 5+ Certification: Cryptographic-strength mutual authentication rather than proximity-based broadcasting. EAL 5+ means the underlying security architecture has passed formal evaluation against government standards — not just vendor claims. Matters in regulated environments (healthcare, data centers, federal facilities) where audit trails and non-repudiation of access events are mandatory compliance requirements. Legacy 125 kHz systems cannot deliver this level of proof.
• 13.56 MHz Operating Frequency: Higher frequency than legacy 125 kHz systems reduces read range (see below) but eliminates the long-distance skimming vulnerability documented in sensitive facilities. Practical for controlled indoor access points where credential presentation must be deliberate. Not suitable for drive-through gates or vehicle access scenarios requiring 3–6 foot read ranges.
• 8K Memory with Unlimited Application Capacity: Supports multi-application deployments on a single keyfob — building access, parking, data center zones, and cafeteria payment can all coexist without requiring separate cards. Reduces credential management overhead in large campuses and eliminates the cost and carrier burden of managing multiple physical credentials per employee.
• Read Range Up to 1 Inch: Close-proximity authentication forces deliberate credential presentation, reducing accidental reads and cross-talk between adjacent readers. Trade-off: not viable for high-velocity badge-swipe scenarios where readers must recognize credentials at 12+ inches. Appropriate for controlled entry points (mantrap vestibules, server room access, secure document storage) where deliberate presentation is a security feature, not a drawback.
• Operating Temperature Range -25°C to +80°C (-13°F to +176°F): Credential remains functional in climate-controlled office buildings and unheated outdoor perimeter access points without degradation. Matters for distributed campus deployments, loading docks, or cold-storage facility access where temperature extremes are common. Eliminates need for separate indoor/outdoor credential SKUs.
• Compact Keyfob Form Factor (1.57" × 1.22" × 0.19", 3.8 g / 0.13 lbs): Fits on a standard keychain without pocket bulk or accidental damage from sitting on the credential. Practical for field technicians, security personnel, or visiting contractors who transition between multiple facilities daily. Black polycarbonate construction with white center eliminates counterfeiting risk from surface printing or unauthorized duplication.
• LEAF Si Enabled with Standard/Leaf Cc Compatibility: Flexibility for organizations with existing access control infrastructure or those migrating between credential standards. Verify with your access control integrator and reader population which standard your system supports before deployment — not all legacy readers support both standards.
• No Slot Punch Required: Simplifies credential enrollment and provisioning workflows — eliminates additional hardware, labor, and processing steps needed to prepare credentials for installation. Reduces provisioning cycle time in large rollouts.
• Sold in Packs of 100 Units: Aligns with enterprise procurement cycles and reduces per-unit cost. Ensures consistent credential supply for phased rollouts across multiple facilities without SKU fragmentation.
• 5-Year Manufacturer Warranty: Covers manufacturing defects in the credential itself. Does not cover loss, theft, physical damage from mishandling, or unauthorized duplication attempts. Standard for access control credentials in this security class.

Integration & Compatibility

The NOC-60L8 is engineered for deployment in Hanwha access control systems and compatible with MIFARE DESFire EV3 reader infrastructure. Before procurement, verify with your integrator that your installed reader population and backend access control server software support LEAF Si and your preferred Cc (credential code) standard. Multi-application provisioning requires compatible reader firmware and server-side application configuration — this is not plug-and-play in mixed-standard environments. Credential provisioning, personalization, and lifecycle management require a MIFARE-compatible key management and issuance system — ensure your integrator or internal provisioning team has the tooling before deployment.

Frequently Asked Questions

Q: Is the NOC-60L8 vulnerable to cloning or counterfeiting like older 125 kHz cards?

A: No. MIFARE DESFire EV3 uses mutual authentication and cryptographic verification — a reader cannot issue an access grant based on a copied credential alone. The EAL 5+ certification confirms the cryptographic design has passed formal evaluation. Legacy 125 kHz proximity cards lack this protection; credential replay and cloning are documented risks with those systems.

Q: Can the NOC-60L8 work with my existing 125 kHz reader infrastructure?

A: No. The NOC-60L8 operates at 13.56 MHz. Your existing 125 kHz readers will not detect it. You must upgrade or replace readers with MIFARE DESFire EV3-compatible models. This is a mandatory infrastructure migration — not a backward-compatible upgrade.

Q: What is the practical maximum read distance for the NOC-60L8?

A: Up to 1 inch, measured from the reader antenna. This is intentional — close-proximity authentication prevents accidental reads and cross-talk between adjacent access points. If your deployment requires badge reading at 12+ inches (e.g., vehicle traffic lanes), the NOC-60L8 is not appropriate; consult your integrator about alternative credential technologies.

Q: Can I use the NOC-60L8 outdoors in extreme cold or heat?

A: Yes. Operating temperature range is -25°C to +80°C (-13°F to +176°F). The credential remains functional in unheated loading docks, outdoor perimeter access points, and cold-storage areas without special enclosures. This eliminates the need for separate indoor/outdoor credential SKUs in multi-climate deployments.

Q: Does the NOC-60L8 support multi-application provisioning?

A: Yes. The 8K memory with unlimited application capacity allows multiple functions (building access, parking, cafeteria, data center zones) on a single keyfob. Application provisioning requires compatible MIFARE backend tooling and reader firmware — verify your provisioning system supports multi-app issuance before deployment.

Q: What is the warranty coverage for lost, stolen, or damaged credentials?

A: The 5-year manufacturer warranty covers manufacturing defects only — not loss, theft, physical damage, or mishandling. Credential replacement for lost/stolen units is typically treated as a service/support cost and handled through your access control integrator or internal provisioning team.

Jerry Tildsen

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The NOC-60L8 is a solid migration path if you're moving away from legacy 125 kHz proximity systems — the EAL 5+ cryptographic certification is real and matters in regulated environments. But this is a single-technology investment: once you deploy MIFARE DESFire EV3 readers and backend provisioning infrastructure, you're committed. The credential itself is durable (5-year warranty, compact keyfob form factor, wide temperature tolerance), but the real decision point is whether your organization can justify the reader infrastructure upgrade and multi-application provisioning complexity.

Technical Highlights:

• EAL 5+ Cryptographic Certification: This is not marketing language — it means the NOC-60L8's authentication architecture has undergone formal evaluation against government security criteria. If your facility operates under FISMA, HIPAA, or financial services audit requirements, this certification has audit value that legacy proximity cards cannot deliver.
• 13.56 MHz Operating Frequency: Eliminates long-distance skimming vulnerability documented in sensitive facilities, but enforces 1-inch read range as a hard trade-off. Not suitable for high-velocity access scenarios (vehicle lanes, turnstiles) where readers must recognize credentials at distance.
• 8K Memory with Unlimited Application Capacity: Multi-application provisioning reduces credential SKU complexity in campus deployments. However, provisioning requires backend MIFARE tooling and compatible reader firmware — this is not a plug-and-play feature in mixed-standard environments.
• Operating Temperature Range -25°C to +80°C (-13°F to +176°F): Broadest temperature tolerance in the credential class. Matters for distributed campus, outdoor perimeter, and cold-storage deployments where environmental stress typically shortens credential lifespan.

Deployment Considerations:

• The NOC-60L8 is not backward-compatible with 125 kHz reader infrastructure — reader replacement is mandatory, not optional. Estimate 3–6 months for infrastructure assessment, procurement, and staged rollout in a large campus environment.
• The 1-inch read range is a hard constraint. If your access points currently rely on badge-swipe or 12-inch read distance, the NOC-60L8 will introduce friction in high-traffic scenarios. Test with pilot readers before full deployment.
• Multi-application provisioning requires compatible backend key management and application enrollment systems — verify your integrator has tooling and processes in place before procurement. This is not standard RFID card issuance.
• Credential provisioning and lifecycle management (issuance, re-keying, revocation) depend on MIFARE-compatible infrastructure. Ensure your internal security/IT team or integrator has training and access to provisioning software before go-live.

The NOC-60L8 is the right choice for regulated facilities (federal agencies, healthcare systems, financial data centers) migrating from proximity systems to cryptographic access control. The EAL 5+ certification and wide temperature tolerance eliminate common credential pain points. But this is a commitment to MIFARE DESFire EV3 infrastructure — the 1-inch read range and multi-app provisioning complexity require careful integration planning and reader population validation before deployment.
