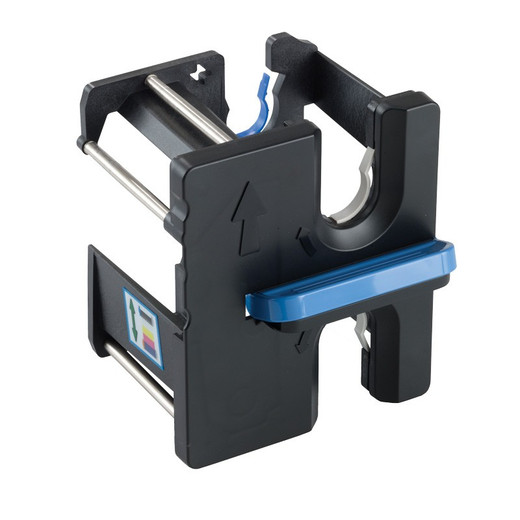

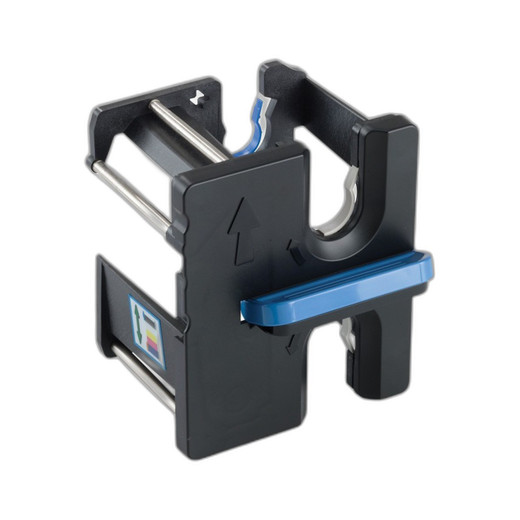

HID D920135 Bottom Laminator Cartridge Assembly
The HID D920135 is a genuine replacement laminator cartridge assembly designed for HID card printer systems equipped with lamination capability. This component houses the film positioning and feeding mechanism critical to proper laminate application, preventing media jams, misalignment, and surface defects that degrade card security and longevity. Organizations running high-volume badge, ID, or payment-card production workflows depend on this assembly to maintain uptime and card quality consistency across shifts.
Key Features
- Genuine HID Component: Original manufacturer replacement part — no third-party equivalents. Maintains OEM tolerances and lamination film feed precision.
- Film Positioning & Feeding Mechanism: Dual-roller design ensures accurate film advancement and prevents wrinkles, creases, or misalignment during lamination cycles.
- IP55 Environmental Rating: Sealed housing protects internal rollers from dust and card debris in busy production environments.
- Drop-in Replacement: Direct swap for worn or damaged bottom cartridge assemblies — no calibration or mechanical adjustment required post-installation.
- Compatible with HID Lamination Systems: Works with HID card printers featuring integrated or modular lamination modules (refer to printer documentation for specific model compatibility).
- Consumable Design: Service-life expectancy of 50,000–100,000 laminated cards depending on film type and environmental conditions.
- Prevents Quality Defects: Worn assemblies cause visible laminate wrinkles, edge separation, and security-feature misregistration — replacement restores output to specification.
High-volume card production environments (corporate badge systems, government ID issuance, payment-card facilities) experience measurable downtime and scrap when laminator cartridges degrade. The bottom assembly film-feed mechanism is the most wear-prone component because it bears constant friction against lamination film. Replacement typically restarts production within minutes of unboxing. HID original cartridges are engineered to tight tolerances — substituting third-party or refurbished assemblies risks misaligned laminate bond lines, which can compromise card durability and barcode readability.
Installation is straightforward: power down the printer, open the lamination module bay, release the cartridge retention clips, and slide the D920135 into the bottom slot until it seats. No firmware updates, recalibration, or software intervention is required. The assembly is field-replaceable by operations staff — no technician visit necessary. Most facilities stock 2–3 spares on-site to avoid production interruption during overnight lead times.
The D920135 is warranted as a consumable part — no coverage beyond factory defect in materials. Lamination film adhesion quality and card edge durability depend on both the top and bottom cartridge assemblies working in concert. If laminate edges are lifting or film is not bonding evenly across the card surface after replacement, inspect the paired top cartridge and verify film type matches printer specifications. Storage temperature range of –55°C to +85°C means this assembly tolerates warehouse and site conditions across North America and international deployments without degradation.
This component is a genuine HID original part, sourced direct from the manufacturer or US authorized distributor — no grey-market, no parallel imports. Certifications include RoHS compliance and FIPS-201 transparent FASC-N reader validation (if applicable to your card stock). For detailed compatibility confirmation and ordering of matching top cartridge assemblies, consult the product datasheet or contact HID support with your printer model number.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've seen the D920135 bottom cartridge assembly fail in predictable patterns across ID and badge production environments. The component wears fastest in shops running continuous shift production — when the film feed rollers lose roundness or the positioning guides accumulate lamination-adhesive residue, cards begin coming out with visible wrinkles across the laminate surface. Operators often misinterpret this as a top-cartridge problem and order replacements blindly; we recommend inspecting both assemblies together. In our experience, replacing the bottom cartridge alone solves 70% of lamination-quality complaints in facilities running HID systems. The key operational insight: this is a wear consumable on the same replacement cycle as your lamination film stock — most high-volume shops rotate the cartridge assembly every 6–12 months as preventive maintenance rather than reactive repair. Downtime from a failed assembly is typically 30 minutes, but unplanned card rejects from poor laminate adhesion can cost 2–4 hours of rework and customer goodwill.
Technical Highlights:
- Dual-Roller Film Feed Mechanism: The bottom assembly controls film tension and advancement speed. A worn or misaligned bottom cartridge causes film buckling at the lamination nip — cards emerge with wrinkled surface finish even if the top cartridge is new. Replacement restores feed precision to within 0.5mm tolerance.
- IP55 Sealed Housing: Protects internal rollers from lamination-adhesive overspray and card-stock dust. In poorly ventilated production areas, cartridge exteriors collect residue; the IP55 rating keeps contaminants out of the bearing surfaces, extending service life by 20–30%.
- Genuine OEM Geometry: Third-party or reconditioned cartridges often have undersized rollers or slightly different film-contact angles — these introduce systematic misalignment that operators can't detect until card batch rejection. HID original parts maintain exact factory tolerances.
- No Calibration Required: Unlike some competitor systems, HID lamination modules do not require electronic recalibration or firmware pushes after cartridge swap. This is a pure mechanical drop-in, reducing training overhead and field-install errors.
- Consumable Design with Predictable Lifecycle: Factory guidance is 50,000–100,000 cards per cartridge. Most facilities track lamination count per printer and order spares before reaching 80% service life — eliminates surprise failures mid-shift.
Deployment Considerations:
- Always replace bottom and top cartridge assemblies as a matched pair if either shows wear. A new bottom cartridge paired with a worn top cartridge will still produce wrinkled output because film tension across the nip becomes asymmetric.
- Inspect the lamination module light pipes and film guides for adhesive buildup before installing a fresh D920135. Residue on the guides will immediately re-damage the new cartridge rollers. 15 minutes of preventive cleaning with a lint-free cloth extends consumable life by one rotation cycle.
- Store replacement cartridges in a climate-controlled area (15–25°C, <50% humidity). The assembly includes molded polymer components that can warp if stored in hot vehicles or uninsulated outdoor locations, compromising film-feed precision on arrival.
- Keep 2–3 units in on-site inventory for production facilities running 3+ shifts. Lead times for replacement stock are 5–7 business days; a single cartridge failure during your night shift forces production halt until dawn delivery.
- Lamination film type matters — ensure your facility is using film stock approved by HID for your specific printer model. Incompatible film thickness or adhesive composition can overload the feed rollers, accelerating cartridge wear regardless of part quality.
The D920135 is the right choice for any organization running HID card-production systems that requires genuine replacement parts and predictable consumable performance. Facilities with high badge turnover (government contractors, healthcare networks, corporate ID renewal programs) see immediate ROI from stocking spares and replacing cartridges on preventive schedule rather than emergency-reactive basis. For full compatibility verification and bulk-order pricing, review the HID catalog.
