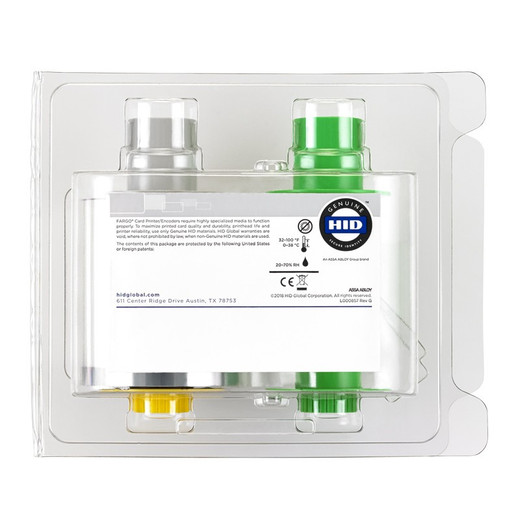

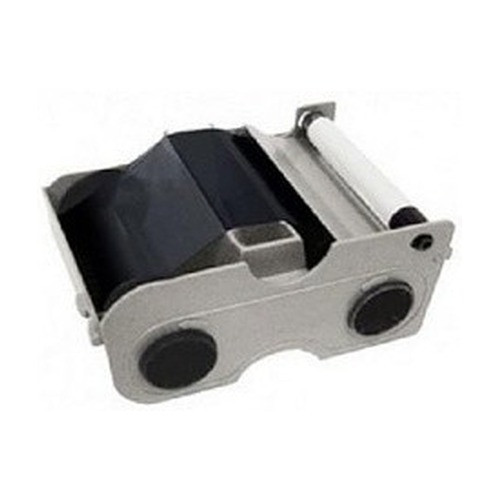

HID D910023 Film Cartridge Assembly
The HID D910023 is a genuine OEM film cartridge assembly designed for HID card printer systems. This consumable component manages film loading, advance, and delivery during the card printing cycle, and its condition directly impacts print quality and system uptime. As a wear item with a defined operational life, regular replacement maintains the precision film registration required for consistent badge output across your printer fleet.
Key Features
- Genuine HID OEM Component: Factory-manufactured replacement part engineered to exact HID specifications. Ensures fit, feed performance, and compatibility without integration risk.
- Film Handling & Feeding: Manages film cartridge advance and registration during printing. Worn assemblies cause feed jams, misregistration, and print quality degradation — replacement restores nominal operation.
- Compact Assembly: 3.8 x 4.4 x 6.5 in footprint integrates directly into compatible HID printer chassis without modification.
- Japan-Manufactured: Produced to Japanese precision standards; country of origin JP ensures consistent quality control.
- Consumable Component: Designed as a replaceable wear item. No warranty (consumable classification) — plan for periodic replacement as part of routine maintenance.
- IP55 Environmental Rating: IP55-rated assembly withstands moderate dust and splash in office or secure facility printer environments.
The D910023 cartridge assembly is a consumable element within the HID printer ecosystem. Over time, film path friction, thermal cycling (operating range -31°F to 150°F, storage to 185°F), and repeated advance cycles wear internal rollers and guides. When feed errors increase or print registration drifts, the cartridge assembly is typically the first component to replace. Unlike external covers or output trays, this is an internal precision mechanism — OEM-sourced replacement eliminates the risk of counterfeit or undersized parts that could jam or damage the printer.
Compatibility is straightforward: the D910023 works across the HID card printer product line (exact model compatibility varies by printer revision). When ordering, cross-reference your printer model with HID documentation to confirm part fit. Installation is field-serviceable for trained technicians; many integrators stock this part as a standard spare for on-site service calls. At 0.7 lb and compact dimensions, it ships and stores easily — recommended inventory for facilities with 3+ HID printers on-site.
This cartridge assembly carries no manufacturer warranty (consumable classification), consistent with industry practice for wear items. However, as a genuine HID part, it meets all certifications required for secure badge production environments — SRRC (China), MIC (Korea), NCC (Taiwan), iDA (Singapore), RoHS compliance, and FIPS-201 Transparent FASC-N reader certification ensure the assembly does not introduce security or environmental hazards. For Mifare and Mifare DESFire EV1 encoding integrations, confirm your printer's encoding module compatibility separately; the film cartridge itself is chip-agnostic.
Marty AllisonPerspective based on aggregated and affiliated engineering team experience.
In our experience, the HID D910023 cartridge assembly is the most frequently replaced consumable in mid-to-large identity management deployments running HID badge printers. We've seen organizations with 5+ printers discover that stocking 2–3 spare assemblies eliminates emergency service calls when feed issues occur during high-volume badge printing cycles. The OEM sourcing is non-negotiable here — counterfeit or gray-market cartridges introduce feed jams and misregistration that compound troubleshooting time and waste blank card stock. The D910023 is Japan-manufactured, so supply is stable and lead times are predictable. On the downside, this is a consumable with no warranty, so budget for periodic replacement cycles (typically 12–24 months depending on volume). The IP55 rating is adequate for standard office or secure-facility environments but not for outdoor badge printer kiosks — if you're deploying a printer in a lobby entrance exposed to humidity, confirm environmental protection separately.
Technical Highlights:
- Film Feed Mechanism: The cartridge handles both film advance and position sensing during the print cycle. Worn rollers or guides cause paper jams and off-register prints — replacement restores precise film indexing and eliminates edge-card waste.
- Operating Range -31°F to 150°F: Suitable for climate-controlled facilities (offices, secure document centers). Storage rated to 185°F allows shipment and warehouse conditions; verify your installation environment stays within operating limits to prevent thermal stress on the cartridge.
- Consumable Classification: No warranty because this is a wear item. Design life depends on print volume — high-volume badge shops (100+ cards/day) may require replacement annually; low-volume facilities may stretch to 24 months.
- OEM Certification Pedigree: FIPS-201 Transparent FASC-N, RoHS, and regional regulatory compliance (SRRC, MIC, NCC, iDA) mean the cartridge meets government badge security and environmental standards — critical for federal, DoD, or healthcare identity programs.
- Mifare / DESFire Compatibility Data: The cartridge assembly itself is encoding-agnostic; your printer's encoding module (sold separately) handles card chip interaction. Confirm your printer supports the specific chip profile (standard Mifare vs. DESFire EV1) when designing the badge system.
Deployment Considerations:
- Stock one spare per 3–5 printers on-site. Feed failures are time-sensitive for badge production workflows; having a cartridge assembly ready eliminates 2-week procurement delays.
- Installation is field-serviceable but requires access to the printer's internal mechanism. If your staff are not trained on printer service, include replacement labor time when budgeting consumable costs.
- Confirm your printer model against HID's compatibility matrix before ordering. The D910023 is widely compatible but not universal across all HID printer SKUs; mis-specification wastes time and creates return friction.
- The cartridge is Japan-sourced and carries no consumable warranty. Plan replacement as a maintenance line item; don't expect support or cross-ship if the part arrives defective — order from established distributors to minimize DOA risk.
- Monitor for feed errors and print quality drift as early warning signs that the cartridge assembly is nearing end-of-life. Proactive replacement prevents card waste and downtime during peak badge issuance periods.
The HID D910023 is the right choice for any organization running HID badge printers in a standard office or secure-facility environment where consumable spares are needed to reduce downtime. Organizations with multiple printers, high-volume production, or mission-critical badge issuance should stock this part. For deployment questions or spare-parts planning, consult the HID catalog.
