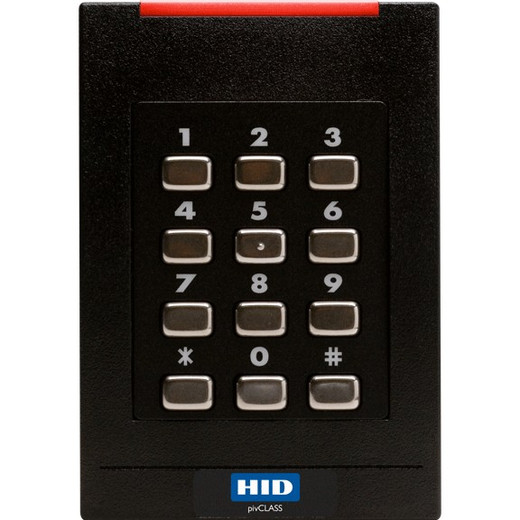

HID 921NWPNEK0047M RK40 iClass SE HF Reader
The HID 921NWPNEK0047M is an RK40-form-factor high-frequency (13.56MHz) access control reader engineered for environments where credential diversity, cloning protection, and tamper-resistant communication are non-negotiable. It natively supports iClass SE (secure element), DESFire, MIFARE, HID proprietary, SEOS, and NFC/13.56MHz credentials, allowing you to deploy a single reader SKU across legacy card stocks, smartphone-based credentials, and next-generation mobile deployments without hardware refresh cycles. The secure element encryption architecture offloads cryptographic validation to certified hardware — blocking credential cloning at the authentication layer rather than downstream in software. OSDP V2 protocol provides encrypted reader-to-panel signaling, real-time tamper alerts, and command-response integrity, eliminating the single point of failure that unencrypted RS-485 presents on shared panel busses.
Key Features
- Secure Element Encryption (SE E): Cryptographic keys stored on certified secure hardware module. Cloning attacks fail at the reader itself; no software workaround possible.
- Multi-Credential Native Support: iClass SE, DESFire, MIFARE, HID proprietary, SEOS, and NFC/13.56MHz in one reader. Single SKU spans legacy infrastructure and modern mobile rollouts.
- OSDP V2 Communication: Encrypted reader-to-panel dialogue with tamper detection and event signaling. Integrates with HID PACS and third-party panels implementing the open OSDP standard.
- IP65 Rating: Sealed against dust and water spray — suitable for high-traffic lobbies, outdoor vestibules, and environments subject to washdown cleaning.
- RK40 Form Factor: Standard cutout installation in single-gang electrical boxes or architectural frames. Black finish with silver trim baseplate; mounting hardware included.
- Backward Compatibility: Works alongside existing HID infrastructure, ISO 14443 Type A/B ecosystems, and legacy proximity systems during phased credential migration.
- 2-Year Manufacturer Warranty: Factory support and replacement coverage; out-of-box configuration assistance.
Credential cloning protection is the operational differentiator here. In our experience, iClass SE readers eliminate the hidden cost of credential compromise — no emergency re-issuance campaigns, no breached cardholder data flowing to the dark market, no forensic gap between detection and remediation. The secure element validation happens before the panel even sees the access request.
OSDP V2 integration means you're not sharing an unencrypted RS-485 bus with potentially dozens of readers. Tamper detection is enabled by default; a physical reader attack (pry-off, USB injection, firmware dump) triggers an immediate alert logged to your access control platform. Multi-credential support also removes the architectural constraint that forced site-wide card-stock standardization. If you're migrating from legacy HID proximity to DESFire, or rolling out NFC mobile credentials, this reader handles all three simultaneously without panel firmware changes or reader replacement.
Integration is straightforward on any OSDP V2-compliant panel — HID, Salto, Hirschfeld, Lenel, Openpath, and others. Verify your panel firmware version supports OSDP before ordering; most modern releases do, but older installations may require a software update. Power draw is modest (confirm your panel's reader port load rating if daisy-chaining multiple units). IP65 sealing means installation in outdoor weather-protected cabinets or high-splash-risk lobbies without enclosure overdesign.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed hundreds of HID iClass SE readers across enterprise access environments, and the 921NWPNEK0047M remains one of the most pragmatic choices for mid-to-large-scale credential modernization. The appeal is twofold: first, you get genuine hardware-level cloning protection without the operational burden of a separate encryption appliance; second, the credential diversity eliminates the false choice between rip-and-replace and parallel infrastructure. On a 500-cardholder site migrating from legacy proximity to DESFire or NFC, this single reader model means the access control team sees one device type on the wire, one power profile, one troubleshooting path. OSDP V2 is the real win here — it kills the shared RS-485 vulnerability that haunts older reader architectures. In our experience, integrators hesitant about OSDP adoption cite legacy panel incompatibility, but once they deploy V2 readers and panels, the alerting granularity and tamper resilience justify the refresh cycle. That said, this is a high-frequency reader — it doesn't backfill 125kHz proximity card readers on existing cabling. If your site is 80% legacy prox and you need backward compatibility with the installed cardstock, you'll need a mixed deployment or a prox-capable reader variant.
Technical Highlights:
- Secure Element Encryption: Cryptographic keys live on certified secure hardware inside the reader. Cloning attempts fail because the reader validates the credential signature in real time; no software patch, no remote compromise can disable this layer. On a high-security site, this architecture eliminates entire classes of credential fraud.
- OSDP V2 Protocol: Encrypted command-response dialogue between reader and panel. Every transaction is integrity-checked; tamper detection is bidirectional. This beats unencrypted RS-485 hands down — no sniffer-in-the-middle attacks, no silent credential capture on the panel bus.
- Multi-Credential Native Support: DESFire, iClass SE, MIFARE, HID proprietary, SEOS, and NFC in one SKU. You don't need a credential converter appliance or dual-reader stations. Simplifies cabling, panel config, and support overhead.
- IP65 Rating: Sealed against spray and dust — install this in a lobby or outdoor weather-protected vestibule without building a separate enclosure. 1 lb compact form factor keeps wiring simple.
- RK40 Footprint: Drops into standard single-gang electrical boxes or architectural frames. Silver trim baseplate works with most building aesthetics. No custom bracket fabrication needed.
Deployment Considerations:
- OSDP V2 requires a compatible panel. Older HID or third-party panels running legacy proprietary protocols will not recognize OSDP signaling. Firmware upgrade or panel replacement may be necessary — budget this before procurement.
- This is a 13.56MHz high-frequency reader. It does not read 125kHz proximity credentials. If your site has a large installed base of legacy prox cards and you need backward compatibility without credential reissuance, consider a dual-technology reader or a phased migration plan.
- Power draw is low (panel-specific), but confirm your access control panel's reader port rating if installing multiple readers on a single panel. Some panels limit daisy-chain count per port.
- Secure element credentials (DESFire, iClass SE) require compatible card stock and encoding tooling. Standard proximity blank cards won't work. Verify your credential supplier supports the encryption profile before full rollout.
- IP65 sealing is robust, but the reader is not rated for full submersion or direct high-pressure spray. Mount in weather-protected locations (covered vestibules, awnings) rather than exposed outdoor facades.
If you're spec'ing a modern access control refresh with strong credential cloning protection, OSDP V2 tamper detection, and the flexibility to support both legacy infrastructure and mobile credentials during a multi-year migration, this reader is the right fit. For smaller sites running legacy proximity-only systems or panels that don't support OSDP, it's overkill. The sweet spot is mid-to-enterprise environments where credential diversity and hardware-backed security justify the investment. Browse the full HID catalog for compatible panels and credential media.
